#930C32H

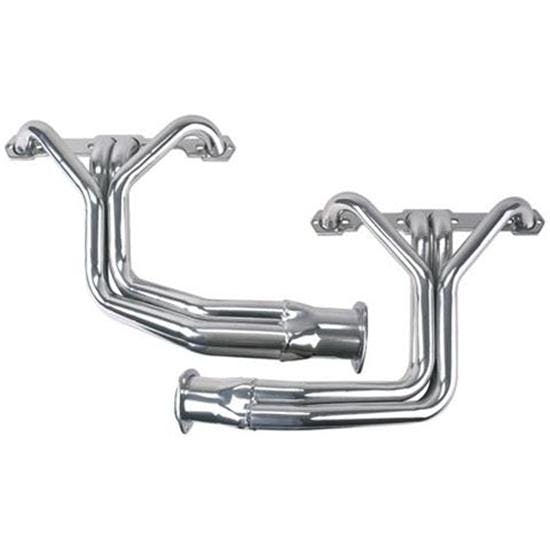

Small Block Chevy 1928-1948 Ford Chassis Headers, AHC Coated
20 Reviews
|
6 Questions
- These small block Chevy chassis headers offer the best of both worlds – full-length header performance in a design that hugs the engine tightly
- Works with stock steering box and most Vega and Mustang conversions
- AHC coating provides a long lasting bright finish as well as reduces underhood temperatures
See More
$585.99
pair
On Backorder
This part is Backordered. We currently do not have an estimate when this item will ship.
Get something sooner
Browse In Stock and Ready to Ship Alternatives
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, Chassis Header Tube Type, Steel
- These small block Chevy chassis headers offer the best of both worlds – full-length header performance in a design that hugs the engine tightly
- Works with stock steering box and most Vega and Mustang conversions
- AHC coating provides a long lasting bright finish as well as reduces underhood temperatures
- 1-1/2" primary tubes with 3" collectors and reducers for 2.5" to 2.25"
- Armor Hot Coat® is a Speedway Motors custom ceramic heat proof coating that will keep the finish of these headers looking great for years to come
See more details
Key Specs
Header Tube Type | Chassis |
Finish | Ceramic Coated |
Flange Style | Standard |
Primary Tube Diameter | 1-1/2" |
Material Type | Steel |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 930C32H Details
Speedway Motors 930C32H Details
These small block Chevy chassis headers offer the best of both worlds – full-length header performance in a design that hugs the engine tightly. These ceramic coated headers will fit many 1928-1948 Ford street rod applications.
- Works with stock steering box and most Vega and Mustang conversions
- Fits Standard Chevy and Vortec heads (not D-port, LT-1 or ZZ4)
- Works with angle-plug heads
- 1-1/2” primary pipes and 3” collectors
Includes bolts, gaskets, reducers and the supporting hardware.
Charts
Installation Guide (PDF)
Header Dimensions Chart (GIF)
Warranties
Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300° F. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900° F. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.
Not legal for sale or use in California on pollution controlled motor vehicles.
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Speedway Motors 930C32H Specifications
Speedway Motors 930C32H Specifications
KEY SPECS | |
---|---|
MFG. Part # | 930C32H |
Brand | Speedway Motors |
Header Tube Type | Chassis |
Finish | Ceramic Coated |
Flange Style | Standard |
Primary Tube Diameter | 1-1/2" |
Material Type | Steel |
Color | Silver |
Weld-Up | No |
Exhaust Port Shape | Round |
Collector Diameter | 3 Inch |
Hardware Included | Yes |
Gasket(s) Included | Yes |
Collector Attachment Type | 3-bolt flange |
Collector Reducers Included | Yes |
Collector Reducer Exit Diameter | 2.25" |
GENERAL | |
Overall Height | 17.5" |
Tube Length | 23.3" |
Collector Length | 4.75" |
Flange Thickness | .31" |
Port Height | 1.6" |
Port Width | 1.51" |
Header Dimension A | 3.50" |
Header Dimension B | 17.50" |
Header Dimension C | 23.30" |
Drivers Side Dimension A | 3.5" |
Drivers Side Dimension B | 17.5" |
Drivers Side Dimension C | 23.25" |
Passenger Side Dimension A | 3.5" |
Passenger Side Dimension B | 17.5" |
Passenger Side Dimension C | 23.25" |
Sold in Quantity | Pair |
Notes | Includes a pair of reducers (2.50" to 2.25") |
