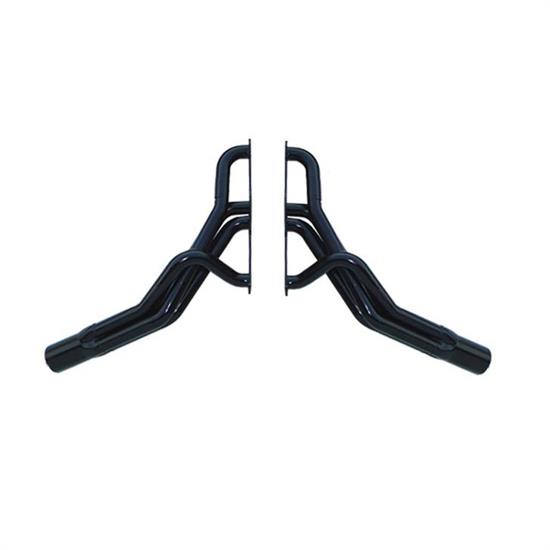

Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers
Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers

Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers

Universal Fit, 4 to 1 Header Tube Type, Temporary Paint, Standard Flange Style, Steel, Black

1 Review | 0 Answered Questions
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers
Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers
Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers
Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers
Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers
Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers
X
Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers
Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers
Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers
Schoenfeld 155 Stock Clip Standard Port Small Block Chevy Headers
Zoomed In Image
Part # 917155
$209.95
$219.99
pair
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • These standard port headers are specially designed to fit the Small Block Chevy engines
  • Will work with most race cars that use stock front clips with the engine mounted in the stock location or moved back
  • The unique design ensures maximum performance, and the Schoenfeld name ensures quality
  • Engineered to exit over frame rail on both sides
  • Primaries have a 1-5/8" diameter and collector has a 3" diameter

Details

Header Tube Type:
4 to 1
Finish:
Temporary Paint
Flange Style:
Standard
Primary Tube Diameter:
1-5/8"
Material Type:
Steel
Color:
Black
Weld-Up:
No
MFG. Part #:
155
Collector Diameter:
3 Inch
Flange Thickness:
.25"
Gasket(s) Included:
Yes
Sold in Quantity:
Pair
Notes:
Fits stock front clip, straight or angle plug heads. Exits over frame rail
Catalytic Converter(s) Included:
No
Collector Attachment Type:
Slip fit
Collector Reducers Included:
No
Bolts Studs Included:
Yes
Tuned:
No
Motor Mounts Included:
No
Transmission Mount Included:
No

Info

Your race car will breathe easier and make more power with a good set of headers like these from Schoenfeld. These small-block Chevy headers are designed to fit most race cars that use stock front clips with the engine mounted in the stock location or moved back. The design ensures maximum performance, and the Schoenfeld name ensures quality.

  • Quality construction
  • Exits over frame rail on both sides
  • Works with straight or angle plugs

Header Dimension Chart (A=23.882", B=6.750", C=28.125, Has a 3.569" rise from top of flange.)

Application

Fits standard 23° or Vortec-head small-block Chevy V8s (not for spread port heads)

Notes

The paint on Schoenfeld headers protects them after the manufacturing process and during shipping - it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
