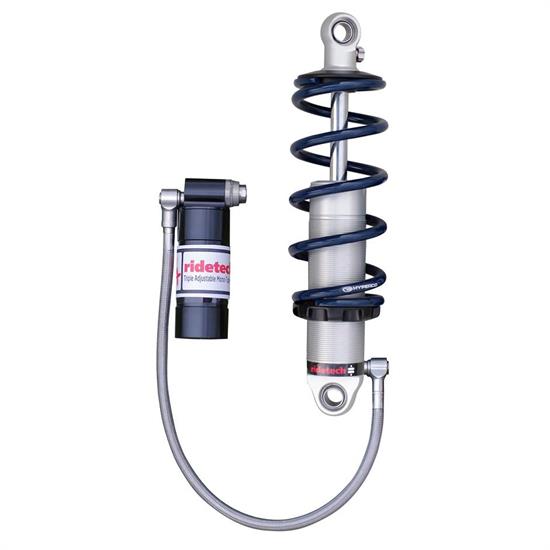

Ridetech 24339901 TQ Series Coilover Shock, 3.6" Travel

#76824339901

Ridetech 24339901 TQ Series Coilover Shock, 3.6" Travel

Name: Ridetech 24339901 TQ Series Coilover Shock, 3.6" Travel
Brand: Ridetech
SKU: 76824339901
Price: 875 USD
Availability: InStock

Write a Review

Ask a Question

Stroke / Ride Height:

3.6" / 11.5 "

2.9" / 10.5"4.1" / 12.5"5.2" / 14.5"6.3" / 16"6.9" / 17.25"

$875.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Rear Position, Mono Tube Shock Type

See more details

Key Specs

Position	Rear
Shock Adjustability	Triple Adjustable
Shock Type	Mono Tube
Shock Body Material	Aluminum
Shock Stroke	3.60

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ridetech 24339901 Details

Ridetech TQ Series Universal Coilovers provide competition-ready handling with exceptional ride quality and incomparable reliability. TQ Series Universal Coilovers can be custom configured to virtually any length or mounting style necessary. Quality and performance are underscored by Ridetech’s world class technical support and a million and one mile warranty. We’re here to help you choose the right coilovers for your application. Likewise, we guarantee that they’ll last. TQ Series Coilovers feature 24-position rebound adjustment along with High and Low Speed Compression adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coilovers are available in six lengths and multiple mounting configurations to adapt to nearly any application.

Monotube gas pressure design is far superior to twin-tube.

24-Position Rebound Adjustment

24-Position High Speed Compression Adjustment

24-Position Low Speed Compressoin Adjustment

Remote Reservoir on 30? braided line w/ double swivel ends

Exclusive 1,000,001 Mile warranty

Impact forged aluminum body provides the best combination of strength, light weight and reliable service.

Larger 1.834? piston significantly larger than twin tube pistons.

Heavy duty 5/8? chromed shaft.

Bodies are anodized for long lasting corrosion-resisten appearance.

Double sealed rod guide with dust cover eliminates oil leakage.

CNC machined billet aluminum adjusting hardware.

Unique fine-threaded pinch clamp height adjuster provides easy adjustment.

Sold Individually – Springs Sold Seperately

Included Components

1- Aluminum monotube shock with threaded body

1- Upper spring seat

1- Lower adjuster nut

1- Upper spring seat clip

1- set of 5/8”-1/2” bearing spacer kit

2- Reservoir Mounts

1- Delrin Washer set of 2

Coilover Dimensions

SEE RECOMMENDED PARTS BELOW FOR COIL SPRINGS

Know your vehicle weights… Try our Spring Rate Calculator

Don’t know your vehicle weights… Vehicle Weight Data Base

Looking for more info.. Choosing The Right Coil-Over

Guides & Documents

Coilovers Installation Instructions (76824339901)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Ridetech 24339901 Specifications

KEY SPECS
MFG. Part #	24339901
Brand	Ridetech
Position	Rear
Shock Adjustability	Triple Adjustable
Shock Type	Mono Tube
Shock Body Material	Aluminum
Shock Stroke	3.60
Upper Shock Mount	Eyelet
Lower Shock Mount	Eyelet
Height Adjustable	Yes
Finish	Anodized

GENERAL
Shock Body Type	Threaded
Compressed Length Range	9.00" to 9.99"
Compressed Length	9.4"
Extended Length Range	13.00" to 13.99"
Extended Length	13"
Number of Valving Selections	72
Coilover Kit Included	Yes
Coilover Springs Included	No
Bushing Material	PTFE
Body Diameter	2.00"
Sold in Quantity	Each
Adjustable	Yes
Hardware Included	Yes
Gas Charged	Yes
Mounting Bracket Included	No
GTIN Code	840123509635
