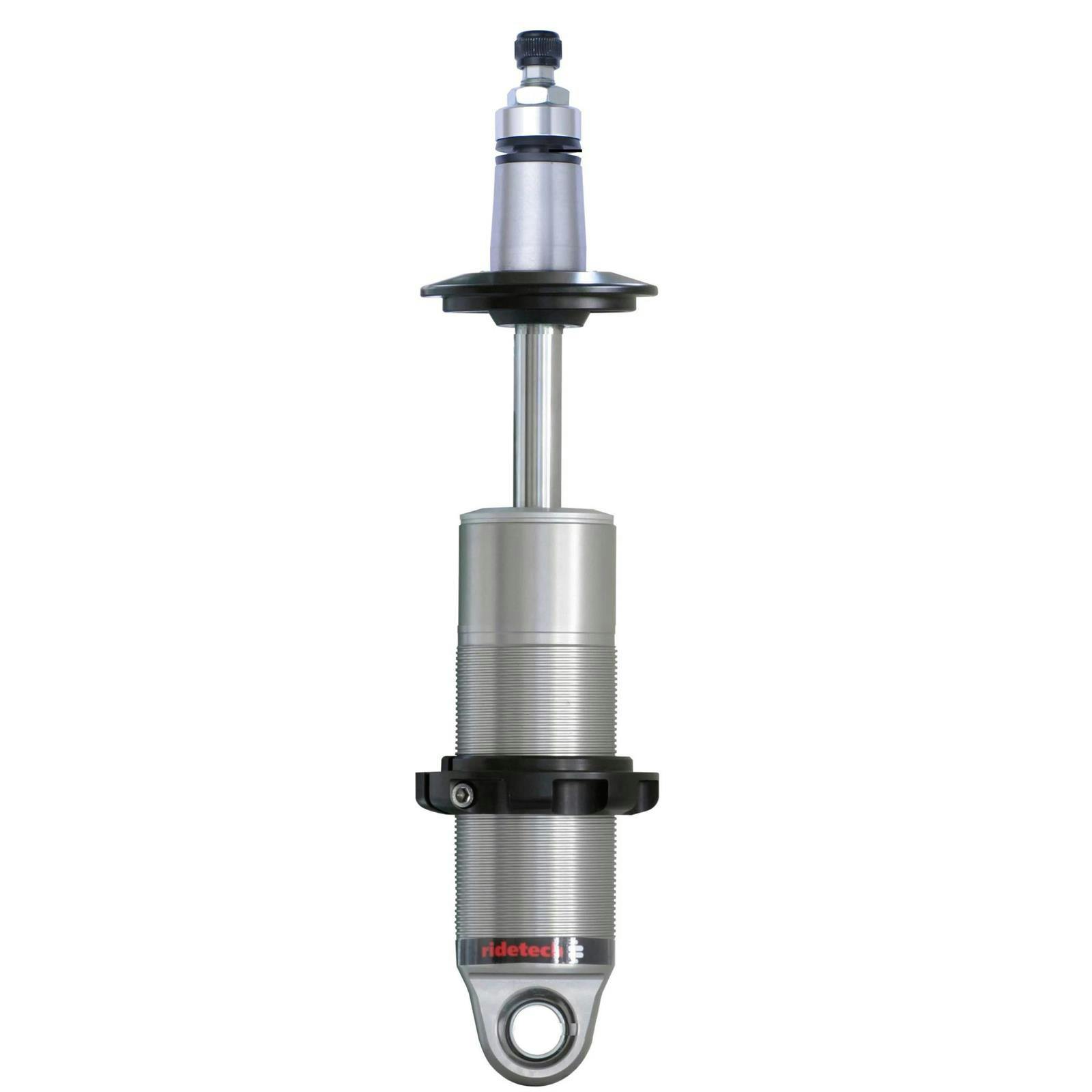

Ridetech 24169905 Universal HQ Coil-Over Shock, 6.3 Inch Stroke

#76824169905

Ridetech 24169905 Universal HQ Coil-Over Shock, 6.3 Inch Stroke

6.3 Inch Stroke (16 Inch Ride Height)
2 Inch Stud Mount
Mono tube gas pressure design is far superior to twin-tube.

Stroke / Ride Height:

6.3" / 16"

2.9" / 10.5"3.6" / 11.5 "4.1" / 12.5"5.2" / 14.5"6.9" / 17.25"

$365.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit

6.3 Inch Stroke (16 Inch Ride Height)
2 Inch Stud Mount
Mono tube gas pressure design is far superior to twin-tube.
24-Position Rebound Adjustment
Exclusive 1,000,001 Mile warranty

See more details

Key Specs

Shock Type	Mono Tube
Shock Adjustability	Single Adjustable
Shock Body Material	Aluminum
Body Diameter	1.5"
Shock Body Type	Threaded

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ridetech 24169905 Details

HQ Series Universal Coilovers provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coilovers can be custom configured for pro-touring cars, street rods, customs pickup trucks and pro-street cars.

HQ Series Universal Coil-overs provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coil-overs can be custom configured for pro-touring cars, street rods, customs pickup trucks and pro-street cars. The quality and performance are underscored by Ridetech's world class technical support and a million and one mile warranty. We're here to help you choose the right coil-overs for your application. Likewise, we guarantee that they'll last. HQ Series Coil-overs feature 24-position rebound adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coil-overs are available in six lengths and multiple mounting configurations to adapt to nearly any application. FEATURES:

6.3 Inch Stroke (16 Inch Ride Height)
2 Inch Stud Mount
Mono tube gas pressure design is far superior to twin-tube.
24-Position Rebound Adjustment
Exclusive 1,000,001 Mile warranty
Impact forged aluminum body provides the best combination of strength, light weight and reliable service.
Larger 1.834 " piston significantly larger than twin tube pistons.
Heavy duty 5/8 " chromed shaft.
Bodies are anodized for long lasting corrosion resistant appearance.
Double sealed rod guide with dust cover eliminates oil leakage.
CNC machined billet aluminum adjusting hardware.
Unique fine-threaded pinch clamp height adjuster provides easy adjustment.

Sold Individually

Included Components 1- Aluminum mono tube shock with threaded body 1- Upper spring seat 1- Lower adjuster nut 1- Upper spring seat clip 1- set of 5/8"-1/2" bearing spacer kit 1- Delrin Washer set of 2

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Ridetech 24169905 Specifications

KEY SPECS
MFG. Part #	24169905
Brand	Ridetech
Shock Type	Mono Tube
Shock Adjustability	Single Adjustable
Shock Body Material	Aluminum
Body Diameter	1.5"
Shock Body Type	Threaded
Shock Body Size	Small Body
Shock Stroke Range	6.00" to 6.99"
Position	Front or Rear
Stroke	6.97"
Mount Position	Stock Mount
Upper Shock Mount	Eyelet
Lower Shock Mount	Eyelet
Extended Length Range	20.00" to 20.99"
Compressed Length Range	13.00" to 13.99"
Finish	Anodized
Compressed Length	13.43"
Gas Charged	Yes

GENERAL
Rebuildable	No
Sold in Quantity	Each
GTIN Code	840123515391
