RideTech 24139905 HQ Series Coilover Shock, 3.6" Travel

#76824139905

RideTech 24139905 HQ Series Coilover Shock, 3.6" Travel

Name: RideTech 24139905 HQ Series Coilover Shock, 3.6\" Travel
Brand: RideTech
SKU: 76824139905
Price: 365 USD
Availability: InStock

Write a Review

Ask a Question

Stroke / Ride Height:

3.6" / 11.5 "

2.9" / 10.5"4.1" / 12.5"5.2" / 14.5"6.3" / 16"6.9" / 17.25"

$365.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Front Position, Mono Tube Shock Type

See more details

Key Specs

Position	Front
Shock Adjustability	Single Adjustable
Shock Type	Mono Tube
Shock Body Material	Aluminum
Shock Stroke	3.60

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

RideTech 24139905 Details

HQ Series Universal Coil-overs provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coil-overs can be custom configured for pro-touring cars, street rods, customs pickup trucks and pro-street cars. The quality and performance are underscored by Ridetech’s world class technical support and a million and one mile warranty. We’re here to help you choose the right coil-overs for your application. Likewise, we guarantee that they’ll last. HQ Series Coil-overs feature 24-position rebound adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coil-overs are available in six lengths and multiple mounting configurations to adapt to nearly any application.

FEATURES:

Mono tube gas pressure design is far superior to twin-tube.

24-Position Rebound Adjustment

Exclusive 1,000,001 Mile warranty

Impact forged aluminum body provides the best combination of strength, light weight and reliable service.

Larger 1.834? piston significantly larger than twin tube pistons.

Heavy duty 5/8? chromed shaft.

Bodies are anodized for long lasting corrosion resistant appearance.

Double sealed rod guide with dust cover eliminates oil leakage.

CNC machined billet aluminum adjusting hardware.

Unique fine-threaded pinch clamp height adjuster provides easy adjustment.

Sold Individually

Included Components

1- Aluminum mono tube shock with threaded body

1- Upper spring seat

1- Lower adjuster nut

1- Upper spring seat clip

1- set of 5/8”-1/2” bearing spacer kit

1- Delrin Washer set of 2

Charts

Installation Instructions (PDF)

Guides & Documents

Coilovers Installation Instructions (76824139905)

CA Prop 65

RideTech 24139905 Specifications

KEY SPECS
MFG. Part #	24139905
Brand	RideTech
Position	Front
Shock Adjustability	Single Adjustable
Shock Type	Mono Tube
Shock Body Material	Aluminum
Shock Stroke	3.60
Upper Shock Mount	Bearing
Lower Shock Mount	Spherical Rod End
Height Adjustable	Yes
Finish	Anodized

GENERAL
Shock Body Type	Threaded

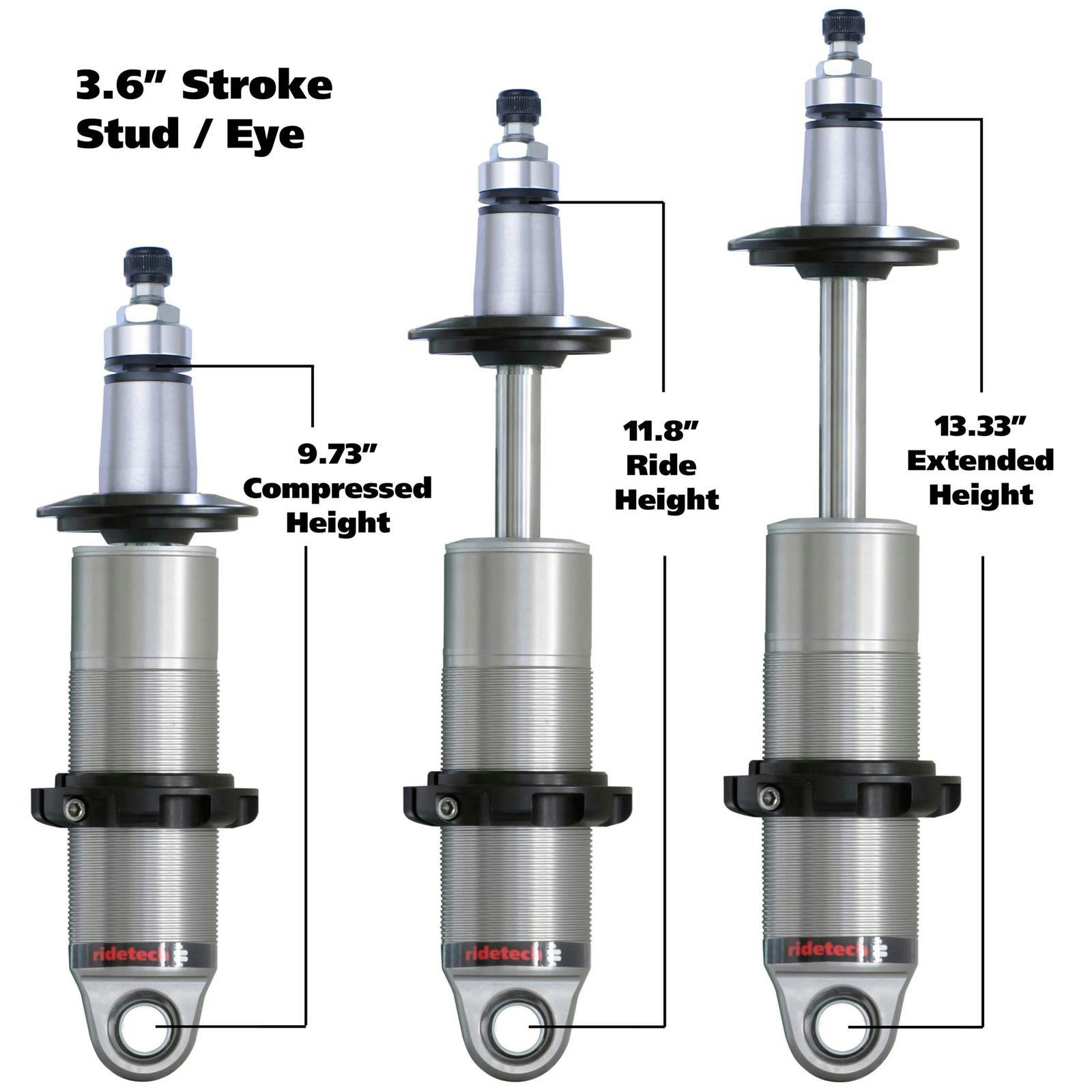

Compressed Length Range	9.00" to 9.99"
Compressed Length	9.73"
Extended Length Range	13.00" to 13.99"
Extended Length	13.33"
Spring Diameter	2.5"
Spring Length	8 Inch
Coilover Kit Included	Yes
Coilover Springs Included	No
Body Diameter	2.00"
Sold in Quantity	Each
Adjustable	Yes
Hardware Included	Yes
Gas Charged	Yes
GTIN Code	840123509505
