#76824129905

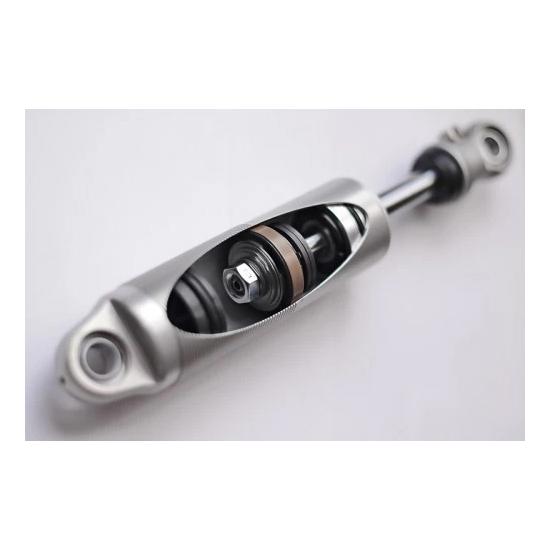

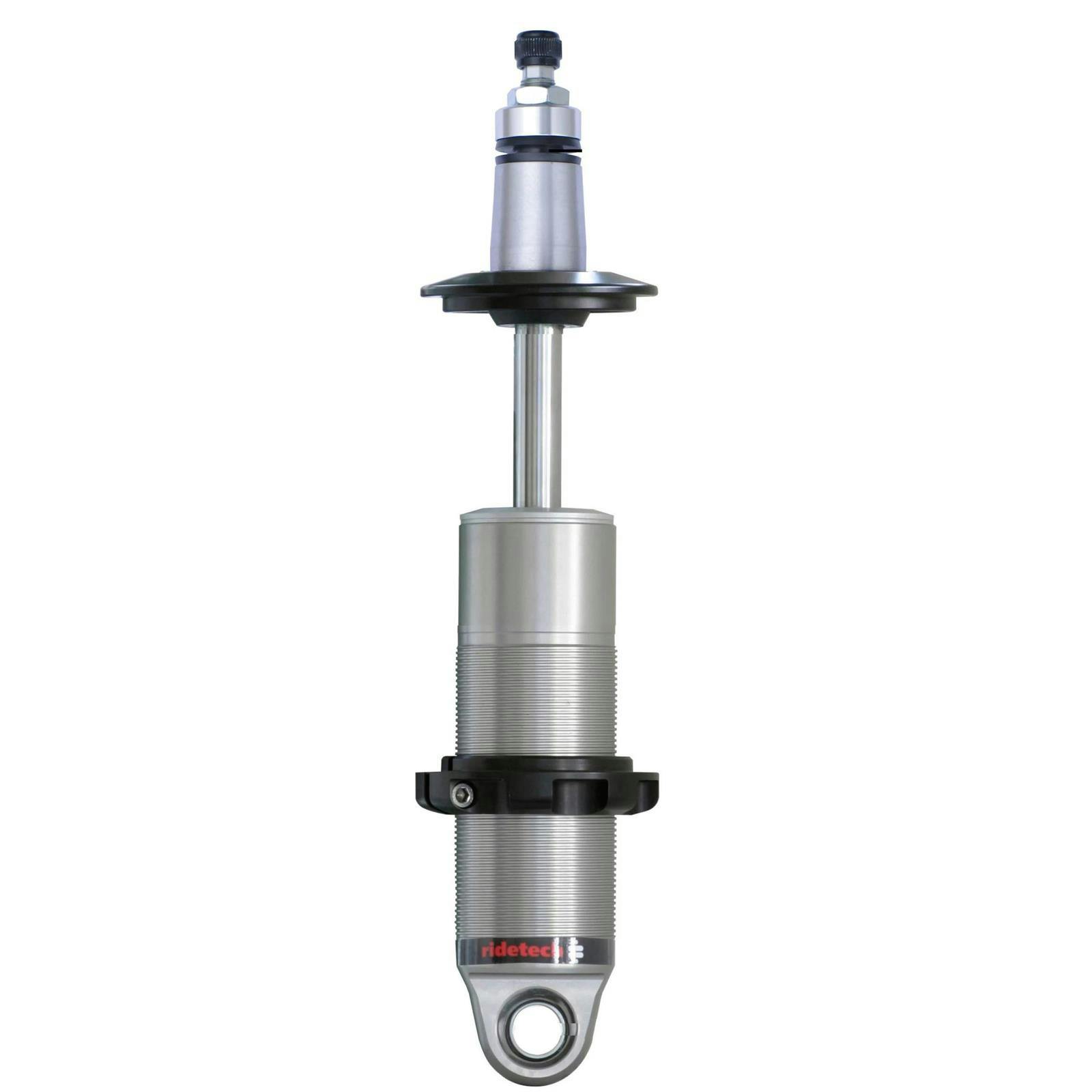

RideTech 24129905 Universal HQ Coil-Over shock, 2.9 Inch Stroke
- 2.9 Inch Stroke (10.5" Ride Height)
- 2 Inch Stud Mount
- Mono tube gas pressure design is far superior to twin-tube.
$365.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Rear Position, Single Adjustable Shock Adjustability
- 2.9 Inch Stroke (10.5" Ride Height)
- 2 Inch Stud Mount
- Mono tube gas pressure design is far superior to twin-tube.
- 24-Position Rebound Adjustment
- Exclusive 1,000,001 Mile warranty
Key Specs
| Position | Rear |
| Shock Adjustability | Single Adjustable |
| Shock Type | Mono Tube |
| Shock Body Material | Aluminum |
| Upper Shock Mount | Stud |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyRideTech 24129905 Details
RideTech 24129905 Details
HQ Series Universal Coilovers provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coilovers can be custom configured for pro-touring cars, street rods, customs pickup trucks and pro-street cars.
HQ Series Universal Coil-overs provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coil-overs can be custom configured for pro-touring cars, street rods, customs pickup trucks and pro-street cars. The quality and performance are underscored by Ridetech's world class technical support and a million and one mile warranty. We're here to help you choose the right coil-overs for your application. Likewise, we guarantee that they'll last. HQ Series Coil-overs feature 24-position rebound adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coil-overs are available in six lengths and multiple mounting configurations to adapt to nearly any application. FEATURES:
- 2.9 Inch Stroke (10.5" Ride Height)
- 2 Inch Stud Mount
- Mono tube gas pressure design is far superior to twin-tube.
- 24-Position Rebound Adjustment
- Exclusive 1,000,001 Mile warranty
- Impact forged aluminum body provides the best combination of strength, light weight and reliable service.
- Larger 1.834 " piston significantly larger than twin tube pistons.
- Heavy duty 5/8 " chromed shaft.
- Bodies are anodized for long lasting corrosion resistant appearance.
- Double sealed rod guide with dust cover eliminates oil leakage.
- CNC machined billet aluminum adjusting hardware.
- Unique fine-threaded pinch clamp height adjuster provides easy adjustment.
Sold Individually
Included Components 1- Aluminum mono tube shock with threaded body 1- Upper spring seat 1- Lower adjuster nut 1- Upper spring seat clip 1- set of 5/8"-1/2" bearing spacer kit 1- Delrin Washer set of 2
RideTech 24129905 Specifications
RideTech 24129905 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 24129905 |
| Brand | RideTech |
| Position | Rear |
| Shock Adjustability | Single Adjustable |
| Shock Type | Mono Tube |
| Shock Body Material | Aluminum |
| Upper Shock Mount | Stud |
| Lower Shock Mount | Eyelet |
| Height Adjustable | Yes |
| Finish | Anodized |
| GENERAL | |
| Compressed Length | 9.03" |
| Extended Length | 11.93" |
| Number of Valving Selections | 24 |
| Coilover Springs Included | No |
| Bushing Material | Spherical Bearing/Delrin |
| Body Diameter | 2" |
| Sold in Quantity | Each |
| Hardware Included | No |
| Gas Charged | Yes |
| Notes | For applications with 10.8 in. ride height. |
| GTIN Code | 840123515315 |
| Adjustable Valving | Yes |
| Adjustable Mounting Bracket Included | No |
| Bushing Color | Natural |
| Lower Mount | Eyelet |
| Upper Mount | Stud |
| Recommended Maximum Spring Length | 8" |
| Recommended Minimum Spring Length | 8" |
| Recommended Spring Diameter | 2.5" |
