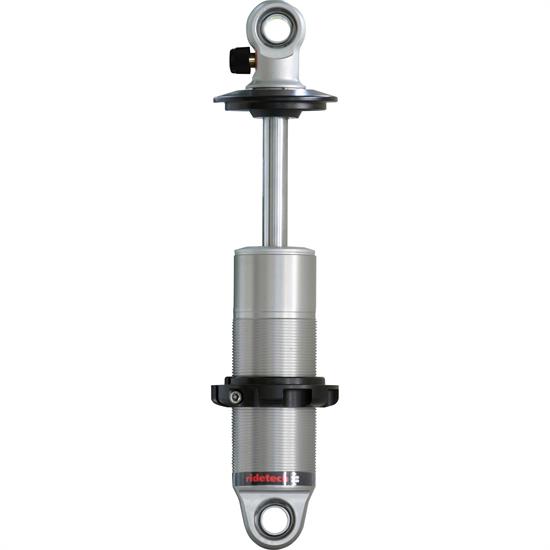

Ridetech 24149701 Polished HQ Series Coilover Shock, 4.1" Travel
Ridetech 24149701 Polished HQ Series Coilover Shock, 4.1" Travel
Ridetech

|

#76824149701

Ridetech 24149701 Polished HQ Series Coilover Shock, 4.1" Travel

Stroke / Ride Height:

4.1" / 12.5"

2.9" / 10.5"3.6" / 11.5 "5.2" / 14.5"6.3" / 16"6.9" / 17.25"

$440.00

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Rear Position, Mono Tube Shock Type

    See more details

    Key Specs

    PositionRear
    Shock AdjustabilitySingle Adjustable
    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Shock Stroke4.10
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Ridetech 24149701 Details

    HQ Series Universal Coil-overs provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coil-overs can be custom configured for pro-touring cars, street rods, customs pickup trucks and pro-street cars. The quality and performance are underscored by Ridetech’s world class technical support and a million and one mile warranty. We’re here to help you choose the right coil-overs for your application. Likewise, we guarantee that they’ll last. HQ Series Coil-overs feature 24-position rebound adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coil-overs are available in six lengths and multiple mounting configurations to adapt to nearly any application.

    FEATURES:

  • Mono tube gas pressure design is far superior to twin-tube.
  • 24-Position Rebound Adjustment
  • Exclusive 1,000,001 Mile warranty
  • Impact forged aluminum body provides the best combination of strength, light weight and reliable service.
  • Larger 1.834? piston significantly larger than twin tube pistons.
  • Heavy duty 5/8? chromed shaft.
  • Bodies are anodized for long lasting corrosion resistant appearance.
  • Double sealed rod guide with dust cover eliminates oil leakage.
  • CNC machined billet aluminum adjusting hardware.
  • Unique fine-threaded pinch clamp height adjuster provides easy adjustment.

    • Sold Individually

    Included Components

  • 1- Aluminum mono tube shock with threaded body
  • 1- Upper spring seat
  • 1- Lower adjuster nut
  • 1- Upper spring seat clip
  • 1- set of 5/8”-1/2” bearing spacer kit
  • 1- Delrin Washer set of 2

    <

    • Charts

    Ridetech 24149701 Specifications

    KEY SPECS
    MFG. Part #24149701
    BrandRidetech
    PositionRear
    Shock AdjustabilitySingle Adjustable
    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Shock Stroke4.10
    Upper Shock MountEyelet
    Lower Shock MountEyelet
    Height AdjustableYes
    FinishPolished
    GENERAL
    Shock Body TypeThreaded
    Compressed Length Range10.00" to 10.99"
    Compressed Length10.13"
    Extended Length Range14.00" to 14.99"
    Extended Length14.25"
    Coilover Kit IncludedYes
    Coilover Springs IncludedNo
    Body Diameter2.00"
    Sold in QuantityEach
    AdjustableYes
    GTIN Code840123509529
