QA1 DD602 Proma Star Coil-Over Shock, 18.750/12.500 Ext/Comp

-9%

QA1 DD602 Proma Star Coil-Over Shock, 18.750/12.500 Ext/Comp
QA1

|

#721DD602

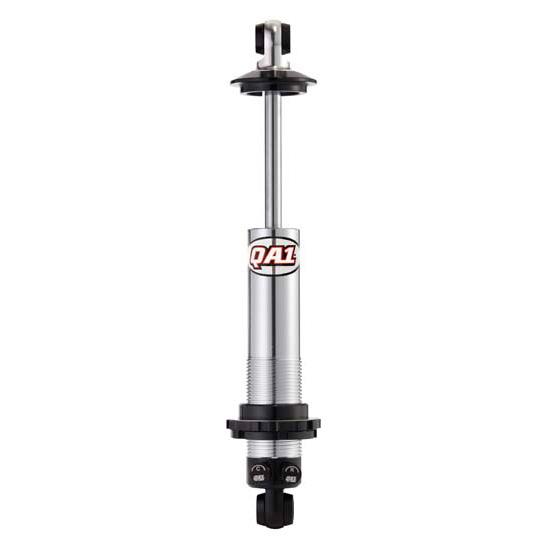

QA1 DD602 Proma Star Coil-Over Shock, 18.750/12.500 Ext/Comp

Compressed/Extended:

12-5/8"-18-3/4"

15"-23-5/8"13"-19-1/2"11-5/8"-16-7/8"11-1/8"-15"10-1/8"-14"9-1/2"-12-3/4"8-3/4"-11-1/8"

$334.95

/each

Factory Shipped

$371.08

Save $36.13


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Rear Position, 15.3" Mounted Length

    See more details

    Key Specs

    PositionRear
    Mounted Length15.3"
    Shock AdjustabilityDouble Adjustable
    Shock TypeTwin Tube
    Shock Body MaterialAluminum
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    QA1 DD602 Details

    QA1's double adjustable shocks have 324 valving options, with 18 positions of compression adjustment and 18 positions of rebound adjustment. There are no jumps when adjusting between any two clicks. Each adjustment has been carefully defined to provide the ideal force curve to maximize performance.

    • Independent Compression and Rebound Adjustment
    • Coil-Over
    • Lightweight Aluminum
    • Ride Height Adjustable
    • Spring Mounting Hardware Included
    • 100% Dyno Tested and Serialized
    • Revalveable and Rebuildable by the QA1 Factory or QA1 Authorized Service Centers
    • American Made
    • Precision Machined Aluminum
    • Piston with PTFE
    • Centerless Ground, Hard Chrome Plated, Solid Piston Rod
    • Three Step Sealing System

    Warranty Information

    Limited Lifetime Warranty (PDF)

    QA1 DD602 Specifications

    KEY SPECS
    MFG. Part #DD602
    BrandQA1
    PositionRear
    Mounted Length15.3"
    Shock AdjustabilityDouble Adjustable
    Shock TypeTwin Tube
    Shock Body MaterialAluminum
    Shock Stroke6.00
    Upper Shock MountEyelet
    Lower Shock MountEyelet
    Height AdjustableYes
    FinishAnodized
    GENERAL
    Compressed Length Range12.00" to 12.99"
    Compressed Length12.5"
    Extended Length Range18.00" to 18.99"
    Extended Length18.75"
    Spring Diameter2.5"
    Spring Length14 Inch
    Number of Valving Selections324
    Mounted Length Range15 1/4" - 15 3/4"
    Coilover Springs IncludedNo
    Bushing MaterialPolyurethane
    Body Diameter2.00"
    Sold in QuantityEach
    AdjustableYes
    Hardware IncludedYes
    Gas ChargedNo
    ColorBlack
    Mounting Bracket IncludedNo
    GTIN Code806990059864

    Questions & Answers

    1 Question • 1 Answer

    What length spring is needed for this shock?

    by Rich

    • 9 years ago

    1 answer

    View Answer

    1 of 1 questions shown
