#721585

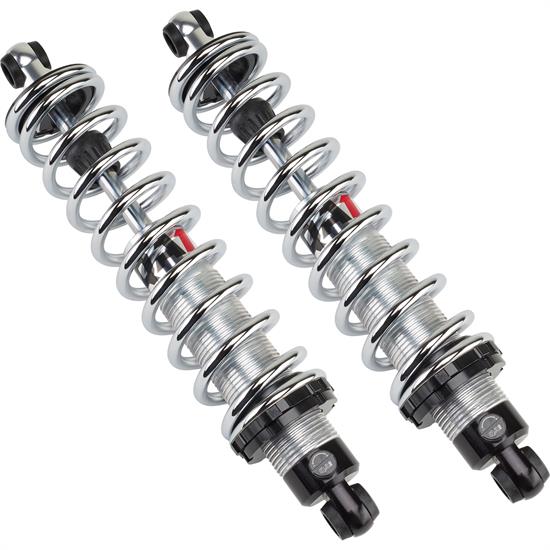

QA1 Adjustable 14 Inch Coil-Over Shock Kit
60 Reviews
|
26 Questions
- Measures 13-3/4" - 14-1/4" @ ride height
- The overall O.D. is 3-3/4" and has 5/8" I.D. mounting eyes
- Shock compressed length is 11-5/8" and extended length is 17"
See More
$487.80
kit
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 14" Mounted Length, 5.25 Shock Stroke
- Measures 13-3/4" - 14-1/4" @ ride height
- The overall O.D. is 3-3/4" and has 5/8" I.D. mounting eyes
- Shock compressed length is 11-5/8" and extended length is 17"
- Spring measures a total of 12" and has a beautiful chrome finish
- Choose from 95, 125, 150, 175, 225, 250, 275, 300, 350, 375, 400, 450 & 500 spring rates to custom fit your project
Comes as a Kit
View Kit Components
See more details
Key Specs
Mounted Length | 14" |
Shock Adjustability | Single Adjustable |
Shock Body Material | Aluminum |
Shock Stroke | 5.25 |
Upper Shock Mount | 1/2" Bushed Eyelet |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
These premium aluminum bodied shocks are not a revalved race shock - they were built specifically for street rods. QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rod's ride. This kit uses a 12" spring and available in 95,125,150, 175, 225, 250, 300, 375, 400, 450 and 500 pound. The mount length should be as close to the middle of shock travel as possible. Ride height will depend on rate of spring and vehicle weight. Has 5/8" I.D. mounting eyes and includes 1/2" bushing. Sold as a pair.
- This kit comes with the option of spring rate.
- Choose from 95, 125, 150, 175, 225, 250, 275, 300, 350, 375, 400, 450 & 500.
- The overall O.D. is 3-3/4"
- Shock compressed length is 11-5/8""
- Shock extended length is 17""
- 12" spring
- 13-3/4" - 14-1/4" @ ride height
- 5/8" I.D. mounting eyes and includes 1/2" bushing
- Sold as a pair
Note: Shock lengths represent mounted length at ride height.
Shock
- Billet aluminum shock body
- 5/8 " centerless ground, hard chrome plated, solid piston rod
- Deflective Disc Valving
- 3-step sealing system
- 18-position adjuster knob changes the rebound valving
- Allows suspension control in one easy-to-reach location
- 100% dyno tested and serialized
- Revalveable and rebuildable by QA1 authorized service centers
Spring
- 2-1/2 " I.D. chrome-silicon spring
- Guaranteed to stay within 2% of rate and length FOR LIFE
Shock
- Billet aluminum shock body
- 5/8 " centerless ground, hard chrome plated, solid piston rod
- Deflective Disc Valving
- 3-step sealing system
- 18-position adjuster knob changes the rebound valving
- Allows suspension control in one easy-to-reach location
- 100% dyno tested and serialized
- Revalveable and rebuildable by QA1 authorized service centers
Spring
- 2-1/2 " I.D. chrome-silicon spring
- Guaranteed to stay within 2% of rate and length FOR LIFE
Charts
Coil-Over Chart (JPG)

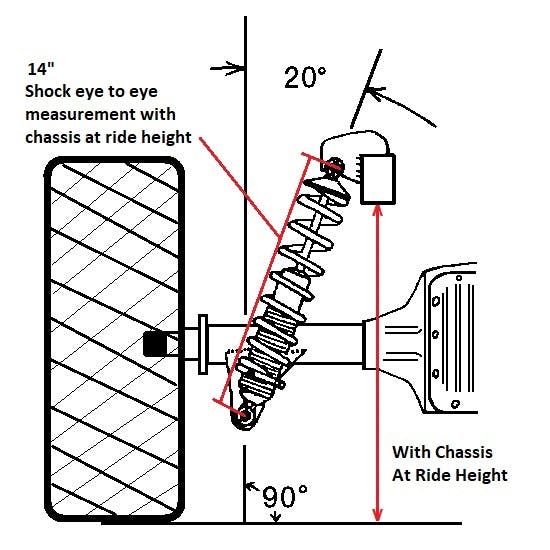

Coil-Over Mounting Guide (GIF)
Specifications
Specifications
KEY SPECS | |
---|---|
Brand | QA1 |
Mounted Length | 14" |
Shock Adjustability | Single Adjustable |
Shock Body Material | Aluminum |
Shock Stroke | 5.25 |
Upper Shock Mount | 1/2" Bushed Eyelet |
Lower Shock Mount | 1/2" Bushed Eyelet |
Finish | Anodized |
GENERAL | |
Speedway Motors Catalog Part # | 721-585 |
Shock Body Size | Small Body |
Shock Body Type | Threaded |
Compressed Length Range | 11.00" to 11.99" |
Compressed Length | 11.63" |
Extended Length Range | 17.00" to 17.99" |
Extended Length | 17" |
Mounted Length Range | 14" - 14 1/2" |
Coilover Kit Included | Yes |
Coilover Springs Included | Yes |
Shaft Diameter | 0.62" |
Bushing Length | 1.25" |
Bushing Material | Polyurethane |
Tube O.D. | 1.90" |
Inside Diameter | 2.50" |
Overall Diameter | 2.00" |
Sold in Quantity | Kit |
