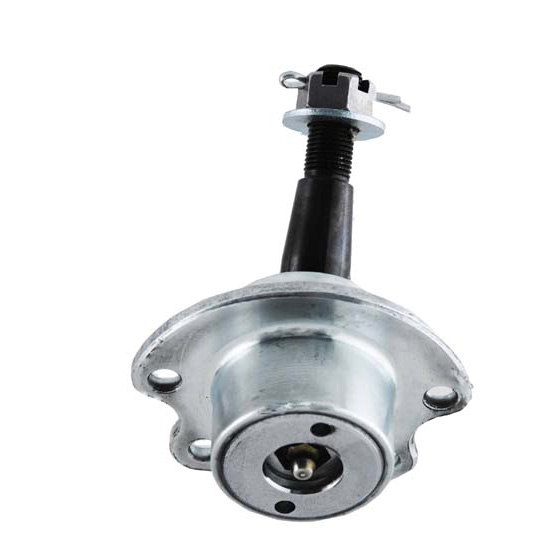

QA1 1210-205B Ultimate Ball Joint, Upper, K5208 Style

#7211210205B

QA1 1210-205B Ultimate Ball Joint, Upper, K5208 Style

Name: QA1 1210-205B Ultimate Ball Joint, Upper, K5208 Style
Brand: QA1
SKU: 7211210205B
Price: 95.95 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

1 Question

Designed as a heavy-duty, bolt-in upgrade for applications utilizing the Moog K5208 footprint, featuring a +0.500-inch extended stud length to correct roll center geometry and enhance cornering stability

Length Difference:

+0.5"

Standard+1.0"

$95.95

/each

In Stock

$98.28

Save $2.33

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Buick, Chevy, GMC, Oldsmobile, Pontiac, Upper Position

Designed as a heavy-duty, bolt-in upgrade for applications utilizing the Moog K5208 footprint, featuring a +0.500-inch extended stud length to correct roll center geometry and enhance cornering stability
Engineered for maximum service life, the 100% take-apart housing allows you to easily service, replace components, or swap ball studs for easy geometry changes right on the car without removing the main assembly
Features a fully adjustable preload configuration that allows you to fine-tune breakaway torque down to 0 ft-lbs, providing incredibly smooth, bind-free suspension movement
Built with a precision-ground 52100 bearing steel race and a precision-tolerance ball-to-race layout, ensuring even load distribution and exceptional wear resistance under intense racing conditions
Offers low-friction performance combined with a traditional grease fitting, ensuring continuous lubrication and ultra-smooth operation over extended use

See more details

Key Specs

MFG. Part #	1210-205B
Brand	QA1
Position	Upper
Ball Joint Type	Bolt-in
Greaseable	Yes

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

QA1 1210-205B Details

QA1's 4-Bolt Style Ultimate Ball Joint is ideal for a variety of racing applications. Exclusive to QA1, this patented, self-lubricating design is 100% owner rebuildable. Multiple stud lengths are also available, allowing for easy geometry changes.

Ultimate Low Friction Operation - Infinite Preload adjustment allows breakaway torque to be set as low as 0 ft. lbs. for a completely smooth, bind-free operation.

Wear Resistant Design - Precision tolerance ball-to-race conformity results in even load distribution for unsurpassed wear resistance. Precision ground 52100 bearing steel race ensures long life and ultra-smooth operation.

On-the-Car Adjustability - Infinite preload adjustment. No need to remove the ball joint from the car for adjustment. Self-Lubricating - Fully greasable enhanced by self-lubricating components to ensure smooth operation.

Multiple Stud Lengths Available - Various ball studs are available for easy geometry changes. Fine tune your roll center. Owner Rebuildable - Rebuilding is simple. All parts are replaceable at economical prices."

Guides & Documents

Warranty (QA1)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

QA1 1210-205B Specifications

KEY SPECS
MFG. Part #	1210-205B
Brand	QA1
Position	Upper
Ball Joint Type	Bolt-in
Greaseable	Yes

GENERAL
Shank Length	2.88"
Notes	Stud is 0.500 in. longer to raise roll center.
GTIN Code	806990113672
Sold in Quantity	Each

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Yes

5.0

5 years ago

Tank

Indianapolis, in

Verified

For racingEasy to rebuild

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

1 Question • 1 Answer

Sort Questions

Will this fit camaro upper tublars

by Nicky

• 8 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1975 Buick Apollo

1971 Buick Centurion

1973-1980 Buick Century

1971-1980 Buick Electra

1971 Buick Estate Wagon

1971-1985 Buick LeSabre

1973-1987 Buick Regal

1973-1983 Buick Riviera

1991-1996 Buick Roadmaster

1975-1980 Buick Skyhawk

1985-1995 Chevy Astro

1971 Chevy Bel Air

1971 Chevy Biscayne

1995-2003 Chevy Blazer

1971 Chevy Brookwood

1970-1981 Chevy Camaro

1971-1993 Chevy Caprice

1973 Chevy Chevelle

1973-1981 Chevy El Camino

1971-1996 Chevy Impala

1971 Chevy Kingswood

1973-1983 Chevy Malibu

1973-1988 Chevy Monte Carlo

1975-1979 Chevy Nova

1982-2004 Chevy S10

1983-1994 Chevy S10 Blazer

1971 Chevy Townsman

1978-1981 GMC Caballero

1992-2000 GMC Jimmy

1983-1987 GMC S15

1983-1991 GMC S15 Jimmy

1985-2003 GMC Safari

1991-1994 GMC Sonoma

1973-1976 GMC Sprint

1971-1982 Oldsmobile 98

1971-1975 Oldsmobile Custom Cruiser

1973-1980 Oldsmobile Cutlass

1973-1987 Oldsmobile Cutlass Supreme

1971-1984 Oldsmobile Delta 88

1975-1978 Oldsmobile Omega

1971-1984 Pontiac Bonneville

1971-1977 Pontiac Catalina

1970-1981 Pontiac Firebird

1975-1977 Pontiac Grand LeMans

1973-1984 Pontiac Grand Prix

1971-1975 Pontiac Grandville

1973 Pontiac GTO

1973-1981 Pontiac LeMans

1983 Pontiac Parisienne

1987 Pontiac Safari

1975 Pontiac Ventura
