#582WB753BK

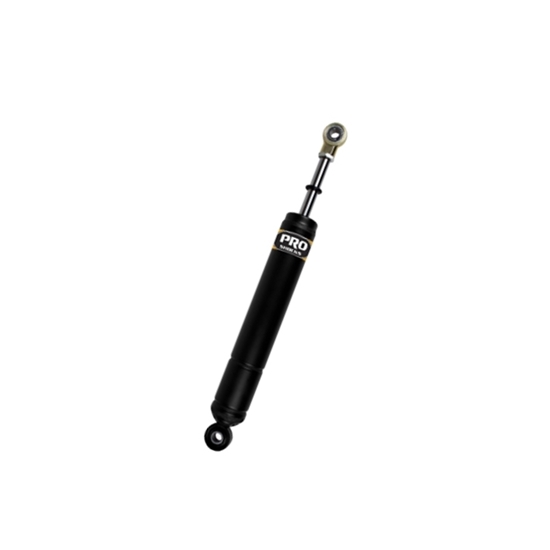

Pro Shocks® WB753BK WB Lg. Steel Shock, 7 In Stroke, C5/R3
- Compressed length measures 13" and has a 20" extended length
- Shaft is hardened
- Upper shock mount has a 1/2" spherical rod end and the lower, a 1/2" bushed eyelet
$136.49
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Hobby Stock, Twin Tube Shock Type, No Value" Stroke
- Compressed length measures 13" and has a 20" extended length
- Shaft is hardened
- Upper shock mount has a 1/2" spherical rod end and the lower, a 1/2" bushed eyelet
- Has a total of 5 compression 3 rebound valve positions
- Body is made from durable steel with a zinc plated finish for added protection
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPro Shocks WB753BK Details
Pro Shocks WB753BK Details
The newly redesigned Pro Shocks® WB series steel shocks now feature hardened shafts, while still maintaining their superior, yet economical gas cell design. A snap ring groove has also been added to allow the use of a coilover kit. These are ideal for IMCA Modified-type race cars.
- Compression Length: 13", Extension Length: 20"
- Compression 5, Rebound 3
Notes
Do not attempt to modify or add snap ring grooves as this will cause the shock absorber to leak. Pro Shocks® will not warranty any shocks with added or modified grooves.Pro Shocks WB753BK Specifications
Pro Shocks WB753BK Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | WB753BK |
| Brand | Pro Shocks |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Position | Front or Rear |
| Compression Valving | 5 |
| Rebound Valving | 3 |
| Mount Position | Stock Mount |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Bushed Eyelet |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20" |
| Compressed Length Range | 13.00" to 13.99" |
| Finish | Zinc Plated |
| Compressed Length | 13" |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | Yes |
| Coil-Over Compatible | Yes |
| Valve Positions | 5 compression - 3 rebound |
| Shock Eyelet Width | 0.625" |
| Bolt Hole Circle | 0.5" |
| Hardware Included | Yes |
| Sold in Quantity | Each |
