#582WB74BK

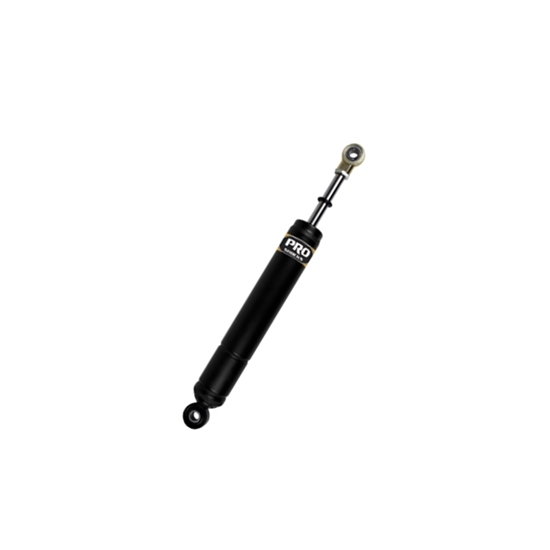

Pro Shocks® WB74BK Large Body Steel Shock, 7 In Stroke, C4/R4
- Shocks feature hardened shafts with a removable rod end
- Engineered to maintain their superior, yet economical gas cell design
- A snap ring groove has also been added to allow the use of a coilover kit
$136.49
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Hobby Stock, Twin Tube Shock Type, No Value" Stroke
- Shocks feature hardened shafts with a removable rod end
- Engineered to maintain their superior, yet economical gas cell design
- A snap ring groove has also been added to allow the use of a coilover kit
- Ideal for IMCA Modified-type race cars
- Has a compressed length of 13" and an extended length of 20"
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPro Shocks WB74BK Details
Pro Shocks WB74BK Details
The newly redesigned Pro Shocks® WB series steel shocks now feature hardened shafts with a removable rod end while still maintaining their superior, yet economical gas cell design. A snap ring groove has also been added to allow the use of a coilover kit. These are ideal for IMCA Modified-type race cars.
- Compression Length: 13", Extension Length: 20"
- Compression 4, Rebound 4
Notes
Do not attempt to modify or add snap ring grooves as this will cause the shock absorber to leak. Pro Shocks® will not warranty any shocks with added or modified grooves.Pro Shocks WB74BK Specifications
Pro Shocks WB74BK Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | WB74BK |
| Brand | Pro Shocks |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Position | Front or Rear |
| Compression Valving | 4 |
| Rebound Valving | 4 |
| Mount Position | Stock Mount |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Bushed Eyelet |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20" |
| Compressed Length Range | 13.00" to 13.99" |
| Finish | Zinc Plated |
| Compressed Length | 13" |
| Gas Charged | No |
| GENERAL | |
| Rebuildable | Yes |
| Coil-Over Compatible | Yes |
| Valve Positions | 4 compression - 4 rebound |
| Shock Eyelet Width | 0.625" |
| Bolt Hole Circle | 0.5" |
| Hardware Included | Yes |
| Sold in Quantity | Each |
