PerTronix D7130801 Ignitor III Distributor, SBF 221-302

-9%

PerTronix D7130801 Ignitor III Distributor, SBF 221-302
PerTronix

|

#447D7130801

PerTronix D7130801 Ignitor III Distributor, SBF 221-302

Cap Color:

Red

Black

Advance Type:

Mechanical

Vacuum

$464.46

/each

Factory Shipped

$510.91

Save $46.45

Garage Sale alternatives: from $281.38


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Socket / Female Cap Type, Mechanical Advance Type, Red

    See more details

    Key Specs

    MFG. Part #D7130801
    BrandPerTronix
    Cap TypeSocket / Female
    Advance TypeMechanical
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

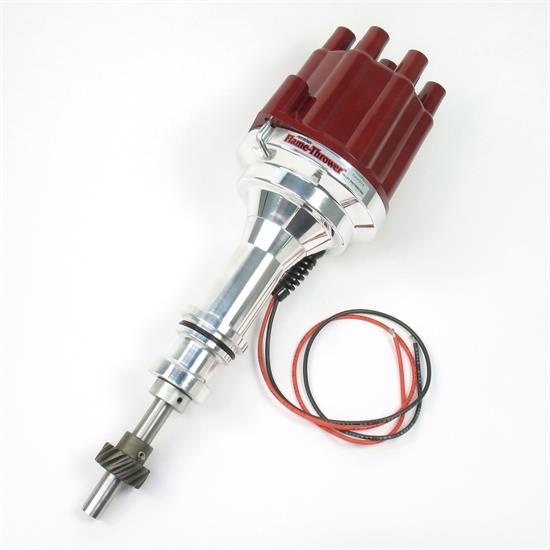

    PerTronix D7130801 Details

    Billet Plug n’ Play Distributors are based on a precision CNC-machined housing with an upper ball bearing to support the steel distributor shaft accurately from idle to redline rpm. These distributors feature our maintenance-free electronic ignition module to produce a strong spark and steady ignition timing.

    • For the specified SBF 221-302 distributor application.
    • Precision CNC-machined billet housing provides an accurately constructed distributor body.
    • Upper ball bearing supports the distributor shaft from idle through high engine speeds.
    • Steel distributor shaft provides the core of the rotating assembly.
    • Maintenance-free electronic ignition module eliminates routine breaker-point service.
    • Electronic ignition is designed to deliver a strong spark and steady ignition timing.

    Charts

    Warranty Information

    Speedway Motors cannot facilitate the return of defective PerTronix products as they have requested to handle these directly with the consumer. Purchasers of a product who wish to make a warranty claim based upon an alleged product defect should email the

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
    CA Prop 65
    CARB warning

    PerTronix D7130801 Specifications

    KEY SPECS
    MFG. Part #D7130801
    BrandPerTronix
    Cap TypeSocket / Female
    Advance TypeMechanical
    GENERAL
    External Ignition Box RequiredNo
    Cap Terminal StyleSocket / Female
    Trigger StyleMagnetic
    Hall EffectYes
    Sync SignalNo
    Trigger SensorsDual
    Gear MaterialSteel
    Gear RotationStandard
    Distributor Cap ColorRed
    Ignition Box RequiredNo
    Mechanical Tach DriveNo
    Slip CollarNo
    Housing MaterialBillet Aluminum
    Housing FinishPolished
    Marine UseNo
    Sold in QuantityEach
    NotesMust use coil with .32 ohms. resistance. Distributor is not compatible with CD or Multi-Spark boxes
    GTIN Code694342522162
