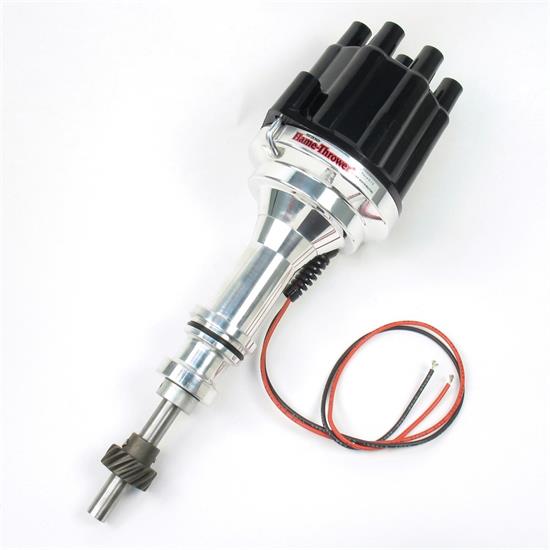

PerTronix D7130800 Flame-Thrower Ignitor III Distributor, SBF 221-302

-9%

PerTronix D7130800 Flame-Thrower Ignitor III Distributor, SBF 221-302
PerTronix

|

#447D7130800

PerTronix D7130800 Flame-Thrower Ignitor III Distributor, SBF 221-302

Advance Type:

Mechanical

Vacuum

Cap Color:

Black

Red

$464.46

/each

Factory Shipped

$510.91

Save $46.45


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Socket / Female Cap Type, Mechanical Advance Type

    See more details

    Key Specs

    MFG. Part #D7130800
    BrandPerTronix
    Cap TypeSocket / Female
    Advance TypeMechanical
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    PerTronix D7130800 Details

    Plug n play billet distributors are designed for maximum ignition performance and easy installation all at a price that you can afford. Replace your outdated points or electronic distributor with this performance proven distributor and which features the patented Ignitor III electronics and a CNC machined 6061 T-6 polished billet housing.

    Features
    • Integrated patented Ignitor III technology with adaptive dwell control.
    • Cobalt magnets and Hall Effect trigger for stable timing and precise spark distribution.
    • A powerful micro controller with adaptive dwell algorithms constantly adjust the dwell angle to maintain peak energy throughout the entire RPM range for increased high and low RPM performance.
    • Ignitor III compensates for inherent electronic delay by adjusting the spark timing throughout the entire RPM range.
    • Synchronized peak current and spark timing reduces heat build-up.
    • Precision CNC machined billet housings are polished to a high luster.
    • Tempered distributor shafts have low torsion displacement for accurate timing and longer life.
    • Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and high RPM vibration.
    • Precision stamped advance weights eliminate erratic timing.
    • Adjustable mechanical advance with proprietary limiting functions permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves.
    • High dielectric strength cap with male or female brass terminals and premium rotor with brass contact.
    • Compatible with most Capacitive Discharge Systems.
    • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-12). Note: Non vacuum advance distributors do not have an E.O. number and are not legal for sale or use on pollution controlled motor vehicles.
    • Warranty: 30 months electronics / Limited 1 year mechanical.

    Flame-Thrower billet distributors are frequently used in tight engine compartments due to their Plug n Play design and relatively small size.

    Although our distributors fit their intended engine application, each vehicle application must be evaluated independently to insure adequate space for distributor fitment as well as air cleaner and hood clearance.

    • PerTronix D7130800 Flame-Thrower Electronic Distributor Billet Ford Small Block with Ignitor III Non Vacuum Black Cap
    • PerTronix D7130800 Flame-Thrower Electronic Distributor Billet Ford Small Block with Ignitor III Non Vacuum Black Cap

    Charts

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective PerTronix products as they have requested to handle these directly with the consumer. Purchasers of a product who wish to make a warranty claim based upon an alleged product defect should email the

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
    CA Prop 65
    CARB warning

    PerTronix D7130800 Specifications

    KEY SPECS
    MFG. Part #D7130800
    BrandPerTronix
    Cap TypeSocket / Female
    Advance TypeMechanical
    GENERAL
    External Ignition Box RequiredNo
    Cap Terminal StyleSocket / Female
    Trigger StyleMagnetic
    Hall EffectYes
    Sync SignalNo
    Trigger SensorsDual
    Gear MaterialSteel
    Gear RotationStandard
    Distributor Cap ColorBlack
    Ignition Box RequiredNo
    Mechanical Tach DriveNo
    Slip CollarNo
    Housing MaterialBillet Aluminum
    Housing FinishPolished
    Marine UseNo
    Sold in QuantityEach
    NotesMust use coil with .32 ohms. resistance. Distributor is not compatible with CD or Multi-Spark boxes
    GTIN Code694342522155

    Fitment

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 302

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 289
