#447D131810

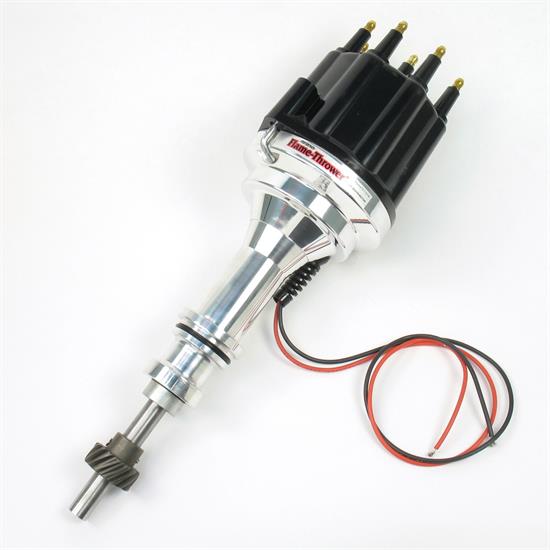

PerTronix D131810 Flame-Thrower Electronic Distributor, Ford 351W, Blk
by
PerTronix
$379.95
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before February 8th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
351C, 351W, HEI / Male Cap Type, Magnetic Trigger Style
See more details
Key Specs
MFG. Part # | D131810 |
Brand | PerTronix |
Cap Type | HEI / Male |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyPerTronix D131810 Details
PerTronix D131810 Details
- Integrated patented Ignitor II technology with adaptive dwell control.
- Cobalt magnets and Hall Effect trigger for stable timing and precise spark distribution.
- A powerful micro controller with adaptive dwell algorithms constantly adjust the dwell angle to maintain peak energy throughout the entire RPM range for increased high and low RPM performance.
- Ignitor II compensates for inherent electronic delay by adjusting the spark timing throughout the entire RPM range.
- Synchronized peak current and spark timing reduces heat build-up.
- Precision CNC machined billet housings are polished to a high luster.
- Tempered distributor shafts have low torsion displacement for accurate timing and longer life.
- Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and high RPM vibration.
- Precision stamped advance weights eliminate erratic timing.
- Adjustable mechanical advance with proprietary limiting functions permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves.
- High dielectric strength cap with male or female brass terminals and premium rotor with brass contact.
- Compatible with most Capacitive Discharge Systems.
- Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-12). Note: Non vacuum advance distributors do not have an E.O. number and are not legal for sale or use on pollution controlled motor vehicles.
- Warranty: 30 months electronics / Limited 1 year mechanical.
Flame-Thrower billet distributors are frequently used in tight engine compartments due to their Plug n Play design and relatively small size.
Although our distributors fit their intended engine application, each vehicle application must be evaluated independently to insure adequate space for distributor fitment as well as air cleaner and hood clearance.
- PerTronix D131810 Flame-Thrower Electronic Distributor Billet Ford 351W Plug and Play with Ignitor II Technology Non Vacuum Advance Black M Cap
- PerTronix D131810 Flame-Thrower Electronic Distributor Billet Ford 351W Plug and Play with Ignitor II Technology Non Vacuum Advance Black M Cap
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
PerTronix D131810 Specifications
PerTronix D131810 Specifications
KEY SPECS | |
---|---|
MFG. Part # | D131810 |
Brand | PerTronix |
Cap Type | HEI / Male |
GENERAL | |
External Ignition Box Required | No |
Cap Terminal Style | HEI / Male |
Advance Type | Mechanical |
Trigger Style | Magnetic |
Hall Effect | Yes |
Sync Signal | No |
Trigger Sensors | Dual |
Gear Material | Steel |
Gear Rotation | Standard |
Distributor Cap Color | Black |
Ignition Box Required | No |
Mechanical Tach Drive | No |
Slip Collar | No |
Housing Material | Billet Aluminum |
Housing Finish | Machined |
Emissions | California EO Approved |
Marine Use | No |
Sold in Quantity | Each |
Notes | Do not use this with a billet camshaft. |
GTIN Code | 694342014339 |
