Offenhauser 5173 GM Manual Trans to Ford Bellhousing Adapter
Offenhauser 5173 GM Manual Trans to Ford Bellhousing Adapter
Offenhauser

|

#5605173

Offenhauser 5173 GM Manual Trans to Ford Bellhousing Adapter

Type:

Chevy Transmission to Ford Bellhousing

Ford Transmission to Chevy Bellhousing

$596.99

/each

On Backorder

This part is Backordered. We currently do not have an estimate when this item will ship.

Garage Sale alternatives: from $332.85


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Many Manual Transmissions

    See more details

    Key Specs

    MFG. Part #5605173
    BrandOffenhauser
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Offenhauser 5605173 Details

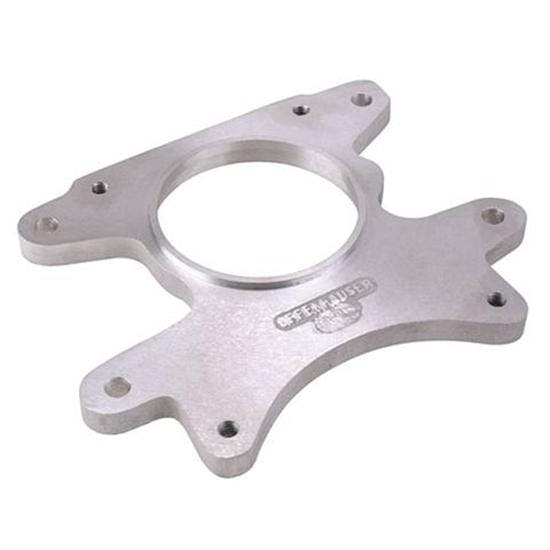

    This trick little spacer is just what you need if you are looking to adapt an old GM gearbox to an early Ford bellhousing. This adapter mates a GM manual transmission to 1949-1964 Ford or 1951-1964 Mercury bellhousings. Adapter also comes with a proper pilot bushing adapter sleeve. Utilizing this adapter will space the transmission 5/8" away from the bellhousing.

    See specs below for bolt hole sizing and spacing to determine if this adapter is right for your needs.

    Charts

    Specs

    • Bellhousing bolt hole dimensions:
      • Top hole width = 5-5/16" center to center
      • Bottom hole width = 6-3/8" center to center
      • Bolt hole spacing top to bottom = 7-5/16"
    •  Transmission mount bolt hole dimensions:
      • Top hole width = 8-9/32"
      • Bottom hole width = 9-3/16"
      • Bolt hole spacing top to bottom = 4-7/8"
    • Bellhousing collar dimensions:
      • 4.686" O.D.
      • 4.346" I.D.
      • Depth = .175"
    • Transmission collar = 4.675"

    Offenhauser 5605173 Specifications

    KEY SPECS
    MFG. Part #5605173
    BrandOffenhauser

    Questions & Answers

    12 Questions • 11 Answers

    I had asked about your other adaptor plate similar to this one, Ford trans to gm.. I received bolt hole measurements that did not match to what I have. The bolt hole measurements of this one, do match up in fact.. I'm trying to mate an early Ford T10, with the early NARROW bolt pattern, to a sbc. In essence, I could essentially use this adaptor for what I'm doing, correct? The bolt hole measurements match up to what I have..

    by Andrew

    • 8 years ago

    1 answer

    View Answer

    I have have a 62 f250 with a 292. Will this fix it's bellhousing and if so what 5 speed transmissions would be a good match

    by Shire

    • 8 years ago

    1 answer

    View Answer

    I have a 51 Ford shoebox with 3 speed column shift, will this product fit on the back of my stock bell housing and mount up to an 84 s-10 T-5 trans? if so, what else would I need to make it work?

    by Sheriff

    • 10 years ago

    1 answer

    View Answer

    I have a 1958 Ford F100 truck w/272 V8 and 3 speed trans. Will this adapter fit and what year S10 T5 will work the best. Also what are all the parts will i need for complete install. Thanks, Dan

    by Dan

    • 10 years ago

    1 answer

    View Answer

    will this match up to a 1962 fairlane 221 v8 2.77 3 spd. manual-to - 1989 chevy s10 t5 5 spd. # 1352-192 transmission.

    by shady

    • 10 years ago

    1 answer

    View Answer

    I am going to use this adapter to mate my saginaw 4spd to my 8ba flathead in my t-bucket. What clutch and pressure plate is to be used for the 10 spline saginaw? Also what throw out bearing and pilot bearing is to be used? Is there bushing/collars needed for this install?

    by gasser

    • 11 years ago

    1 answer

    View Answer

    I would like to use this product to adapt a GM Borg-Warner T-16 three-speed transmission to a Ford narrow pattern '51-'64 bellhousing. Will this adapter work?

    by Al

    • 11 years ago

    1 answer

    View Answer

    I have a 1953 8ba flathead with a 3 speed. Will i be able to adapt a 1992 t5 from an s10 to my existing bellhousing, then reuse my flywheel, starter, presure plate and cluch linkage ??

    by Claygunn

    • 11 years ago

    1 answer

    View Answer

    1956 f100 with 272 engine 3 speed on column

    by dogman

    • 12 years ago

    1 answer

    View Answer

    I have a 1964 Ford F100 with a 3 speed. Will this adapter work with a early s10 t5 transmission?

    by rj

    • 14 years ago

    2 answers

    View Answers

    Load More Questions

    10 of 12 questions shown
