Nostalgia 1923 T-Bucket Frame Kit w/ Standard Body and Bed, No Floor

The Nostalgia T frame is engineered to provide the ultimate in economy and ease of assembly. It features the same spring-behind-axle front suspension as the Budget T, but includes front shock/headlight mounts. The coilover rear suspension uses traditional-style radius rods and a panhard bar, with all necessary mounts welded in place. If youre looking for an affordable, well-engineered T-bucket chassis requiring only basic mechanical skills to assemble, the Nostalgia T is for you!

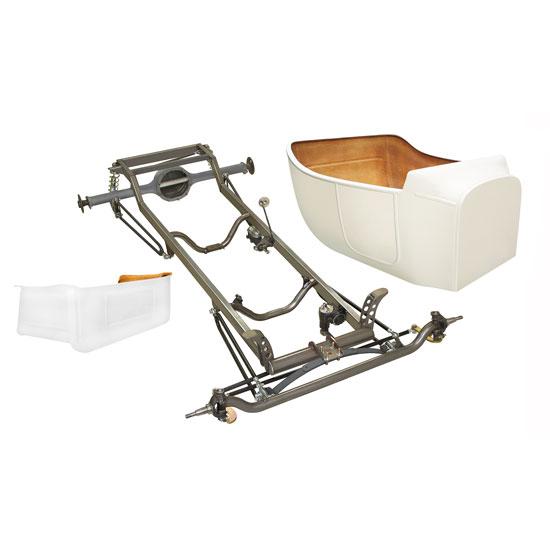

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

Rear Axle Housing Option:

Part# 715700 - Speedway Ford 9 Inch Rear Axle Housing Kit for T-Bucket Chassis, 31-Spline, 56 Inch Width.

• Includes an all-new housing, tubes and new-style big Ford ends, lifetime warranty, 31-spline axles with dual bolt pattern (5 on 4.5" and 5 on 4.75") and new axle bearings.
• Necessary suspension brackets will be welded to the housing, according to which chassis you order.
• Option is only available with the purchase of a T-Bucket frame.
• Center section NOT included.

Engine / Transmission Crossmember options available:

Part# 715500 - Small Block Chevy and TH350 Auto Trans Mount Option For T Frame Kit

• This T frame kit option includes tubular engine and transmission crossmembers welded into a '23 or '27 T-Bucket frame. Will accept S/B Chevy engine and TH-350 or TH-400 transmissions.

Part# 715600 - Small Block Ford and C4 Auto Trans Mount Option for T Frame Kit

• This T-frame option will include tubular engine and transmission crossmembers welded into your '23 or '27 T-Bucket chassis. Will accept S/B Ford engine and C-4 transmission only.
• Due to clearance issue with the Vega steering box, you will need to either remote mount the oil filter or make use of the 90 degree oil filter adaptor # 910-6880.

Note: When ordering either of these options with a T-Bucket frame kit, the frame will be shipped with these crossmembers welded to it.  As such, this engine/transmission crossmember option must be ordered with a T frame kit.   This is not available separate of a T frame kit.

All of our T kits are also available with chrome suspension. This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.

This product requires a 3-4 week build time.

Cancellation Policy Notice

Please note that any order canceled after submission but prior to shipment will incur a $200 cancellation and restocking fee.

Item Details:

Frame Assembly

• 1-1/2 x 3 " rectangular steel tube frame with 102 " wheelbase
• 3 " O.D. round tube front crossmember
• Spring-behind front suspension with 4 " drop tube axle and hairpin radius rods
• Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
• Combination headlight and front shock mounts
• Coilover rear suspension with radius rods and panhard bar
• Cross steering with Vega steering box
• Frame assembly includes: front spring, axle and spindles; rear coilover shocks and panhard bar; front and rear radius rods; Vega steering box; master cylinder, bracket and pedal
• Available with plain (PLN) or chrome (CHR) suspension components

Standard Body Part# 9002220

• Rugged 1-piece fiberglass body
• Flat, smooth firewall
• Molded-in flat dash
• Body lip around top edge to attach upholstery
• One-piece 20 " T pickup bed
• Available with no floor

Front End Assembly Note: Plain (Raw) front end kits ship assembled on the frame. Chrome and Stainless Steel front end kits ship unassembled to protect the finish during shipping and require final assembly.

Chassis Exploded View (JPG)

• Body Dimensions
  • Total Length:  52"
  • Firewall Width:  26.5"
  • Body Width:  45"
  • Body Height:  24"
