Nostalgia 1923 T-Bucket Frame Kit w/ Deluxe Body and Bed, No Floor
1923 Model T
- This item 7153200 is made to order. It will be shipped from our warehouse when it is produced.

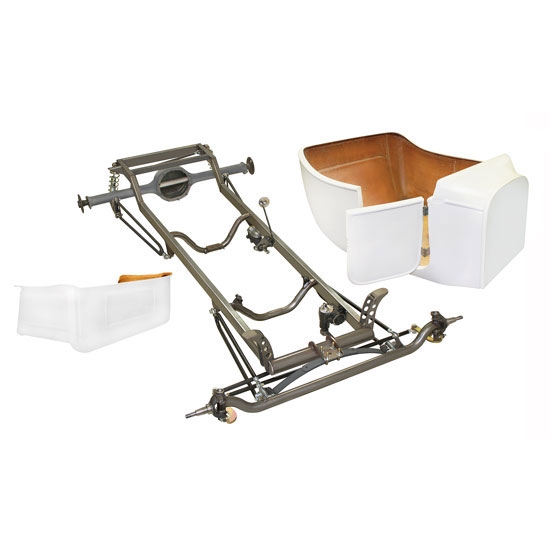

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.
All of our T kits are also available with chrome suspension. This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.
Chassis Exploded View (Link)
This product requires a 3-4 week build time.
Item DetailsNo Floor, Door Not Hung
- The body provided with this kit features a functional right hand door, door sill, flat dashboard, recessed area for upholstery tack strip, molded firewall and lower body mounting flange. Please note that the body is provided without a floor and the door will not be hung. (Photo shown above is for illustration purposes only to reflect the functional door after installation)
- 1-1/2 x 3" rectangular steel tube frame with 102" wheelbase
- 3" O.D. round tube front crossmember
- Spring-behind front suspension with 4" drop tube axle and hairpin radius rods
- Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
- Combination headlight and front shock mounts
- Coilover rear suspension with radius rods and panhard bar
- Cross steering with Vega steering box
- Frame assembly includes: front spring, axle and spindles; rear coilover shocks and panhard bar; front and rear radius rods; Vega steering box; master cylinder, bracket and pedal
- Available with plain (PLN) or chrome (CHR) suspension components
- Rugged fiberglass body
- Right hand door (not hinged or latched)
- Flat, smooth firewall
- Molded-in flat dash
- Body lip around top edge to attach upholstery
- One-piece 20" T pickup bed
- Body provided with no floor
- Body Dimensions
- Total Length: 52"
- Firewall Width: 26.5"
- Body Width: 45"
- Body Height: 24"
What's In The Kit
