Nostalgia 1923 T-Bucket Frame Kit w/ Standard Body/Bed, Unchanneled Floor

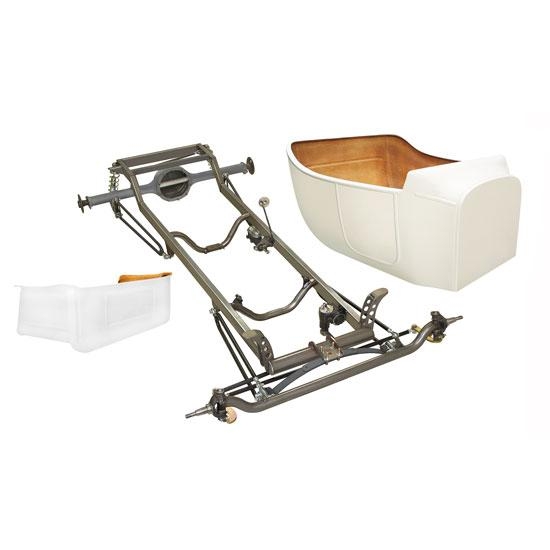

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

All of our T kits are also available with chrome suspension. This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.

This product requires a 3-4 week build time.

Item Details

Frame Assembly

• 1-1/2 x 3 " rectangular steel tube frame with 102 " wheelbase
• 3 " O.D. round tube front crossmember
• Spring-behind front suspension with 4 " drop tube axle and hairpin radius rods
• Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
• Combination headlight and front shock mounts
• Coilover rear suspension with radius rods and panhard bar
• Cross steering with Vega steering box
• Frame assembly includes: front spring, axle and spindles; rear coilover shocks and panhard bar; front and rear radius rods; Vega steering box; master cylinder, bracket and pedal
• Available with plain (PLN) or chrome (CHR) suspension components

Standard Body

• Rugged 1-piece fiberglass body
• Flat, smooth firewall
• Molded-in flat dash
• Body lip around top edge to attach upholstery
• One-piece 20 " T pickup bed
• Available with an un-channeled floor

Frame Assembly

• 1-1/2 x 3 " rectangular steel tube frame with 102 " wheelbase
• 3 " O.D. round tube front crossmember
• Spring-behind front suspension with 4 " drop tube axle and hairpin radius rods
• Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
• Combination headlight and front shock mounts
• Coilover rear suspension with radius rods and panhard bar
• Cross steering with Vega steering box
• Frame assembly includes: front spring, axle and spindles; rear coilover shocks and panhard bar; front and rear radius rods; Vega steering box; master cylinder, bracket and pedal
• Available with plain (PLN) or chrome (CHR) suspension components

Standard Body

• Rugged 1-piece fiberglass body
• Flat, smooth firewall
• Molded-in flat dash
• Body lip around top edge to attach upholstery
• One-piece 20 " T pickup bed
• Available with an un-channeled floor

Chassis Exploded View (JPG)

• Body Dimensions
  • Total Length:  52"
  • Firewall Width:  26.5"
  • Body Width:  45"
  • Body Height:  24"
