Nostalgia 1923 T-Bucket Frame Kit w/ Deluxe Body/Bed, Channeled Floor
1923 Model T
- This item 7153221 is made to order. It will be shipped from our warehouse when it is produced.

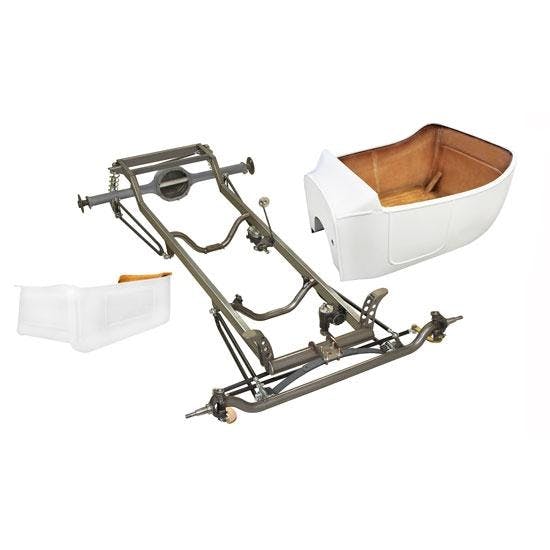

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.
All of our T kits are also available with chrome suspension. This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.
Chassis Exploded View (Link)
This product requires a 3-4 week build time.
Item DetailsDoor is Hung
- If ordering the body kit without a floor, please note that the door will not be hung. If you order a body kit with a floor (715-3211 or 715-3221), the door will be fitted & hung on its hinges before shipping.
- 1-1/2 X 3" Rectangular steel tube frame with 102" wheelbase
- 3" O.D. round tube front crossmember
- Spring-behind front suspension with 4" drop tube axle and hairpin radius rods
- Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
- Coil spring rear suspension with panhard bar
- Cross Steering with Vega steering box
- Frame assembly includes: front spring, axle, spindles, rear coil springs, rear shocks, and panhard bar; front and rear radius rods; Vega steering box with pitman arm; master cylinder, bracket and pedal
- Available with plain or chrome suspension components
- Rugged fiberglass body
- Hinged right hand door
- Flat, smooth firewall
- Molded-in flat dash
- Body lip around top edge to attach upholstery
- One-piece 20" T pickup bed
- Flat Floor
- Body Dimensions
- Total Length: 52"
- Firewall Width: 26.5"
- Body Width: 45"
- Body Height: 24"
What's In The Kit
