#91034206-4 1/2

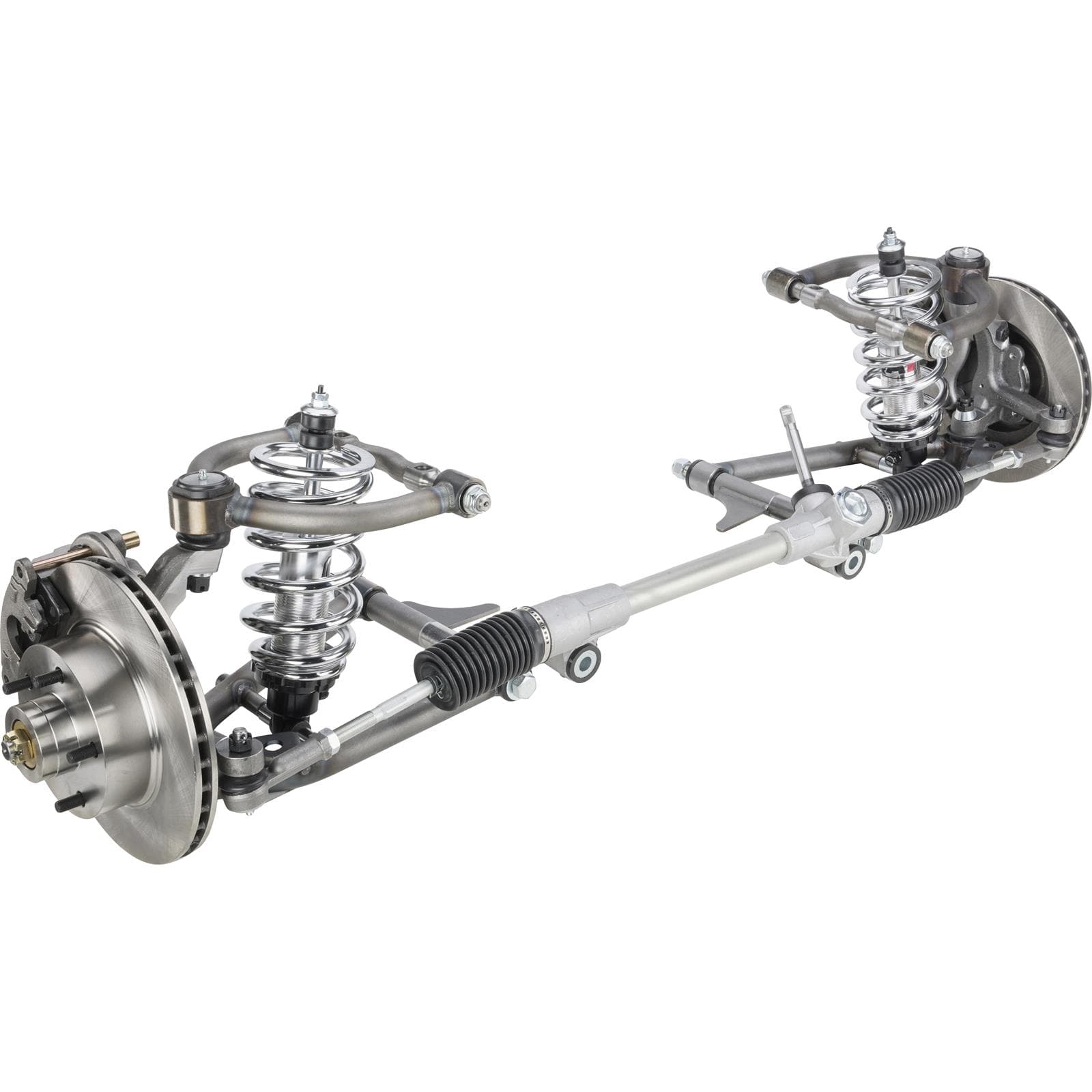

Mustang II Coilover IFS Tubular Control Arms Stock 4.5
- Works with all Speedway and Heidt's Mustang II based crossmembers
- Heat treated forged steel spindles that retain stock factory geometry
- Standard Tubular Upper and Lower Strutless Control Arms are made from full .120 wall, 1" diameter tubing, fixture welded with screw-in ball joints and no-squeak rubber bushings
$2,018.99
/kit
On Backorder
This part is Backordered. We estimate this item will ship on or before April 13th.
Get something sooner
Browse In Stock and Ready to Ship AlternativesQuantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
74-78 Mustang II, 74-80 Pinto, 75-80 Bobcat, Natural
- Works with all Speedway and Heidt's Mustang II based crossmembers
- Heat treated forged steel spindles that retain stock factory geometry
- Standard Tubular Upper and Lower Strutless Control Arms are made from full .120 wall, 1" diameter tubing, fixture welded with screw-in ball joints and no-squeak rubber bushings
- Coil-over spring and shock assembly is fully adjustable using included aluminum spanner nut for ride height adjustment
- Coilover Springs included in your choice of 4 rates of 375, 500, 600, and 700 lbs/inch to fine tune and perfect the ride to your front axle chassis weight
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 91034206-4 1/2 |
| Front Suspension Type | IFS |
| Suspension Height Adjustment | Stock Height |
| Control Arm Style | Tubular |
| Shock Type | Mono Tube |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91034206-4 1/2 Details
Speedway Motors 91034206-4 1/2 Details
As featured on Classic Truck’s Week to Wicked. Watch the transformation here!
Hub-to-hub kit includes standard upper and offset strutless lower control arms, new standard spindles, rubber brake lines, coilovers, new manual or rebuilt power rack & pinion with bushings and new tie rods. The 11" brake kit features GM Metric calipers, with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.
- Works with all Speedway and Heidts crossmembers
- Kit Includes:
- Standard Tubular Upper and Lower Strutless Control Arms
- New Stock Spindles
- Coilover Springs
- Rack and Pinion with bushings and tie rods
- 11" brake kit with GM calipers
- Add proper crossmember to complete kit.
Note: Additional items may be needed to complete installation. You may want to include our Mustang II ride height adjusters (91034444) for installation with these IFS kits to fine tune your final ride height up to 2".
Note: If using these kits with Speedway or Heidts crossmembers for 1948-1956 Ford Pickups, 1955-1959 Chevy Pickups, or universal crossmembers for 27-1/2" - 33-1/2" frame widths, you will be required to purchase 2" Inner Tie Rod Extensions (91034345) or (91034346).
Item Details
'Must include Mustang II crossmember for complete installation (sold separately)
Charts
Specs
Hub-to-Hub Kit (Less Crossmember)
- Tubular Upper Control Arms
- Tubular No-Strut Lower Control Arm
- New Stock Spindles
- Coil-overs w/ Spring
- Fixed Valving
- Spring Adjustable from stock to 2" lower
- New Manual or Power Rack & Pinion
- New Tie Rod Ends
- New 11" Brake Kit
- 5x4-1/2" or 5x4-3/4" Bolt Circle
Guides & Documents
Speedway Motors 91034206-4 1/2 Specifications
Speedway Motors 91034206-4 1/2 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91034206-4 1/2 |
| Brand | Speedway Motors |
| Front Suspension Type | IFS |
| Suspension Height Adjustment | Stock Height |
| Control Arm Style | Tubular |
| Shock Type | Mono Tube |
| Spring Type | Coilover |
| Finish | Natural |
| Bolt Pattern | 5 on 4.5" |
| Rotor Diameter | 11 Inch |
| Spindle Style | Ford Stock |
| Dropped Spindles | No |
| Dropped Axle | No |
| Dropped Control Arms | No |
| Spindles Included | Yes |
| Brakes Included | Yes |
| Steering Included | Yes |
| Caliper Pistons | Single |
| Caliper Finish | Natural |
| Shock Adjustability | Single Adjustable |
| Rotor Type | Solid/Vented |
| Welding Required | Yes |
Ratings & Reviews
4.9
22 Reviews
Customers commend the product for its exceptional quality and easy installation process, even with basic tools. The parts are reported to be of high caliber, with excellent fit and finish. Several users appreciated the fact that the kit included all necessary components. Some highlighted features include tubular control arms, coil overs for accurate control arm alignment, and the ability to customize color on raw steel parts. There was a particular appreciation for the polished coil overs and chrome springs, and the adjustable ride height. A couple of users remarked that rubber front brake lines were provided instead of preferred braided lines. Overall, users recommended this product over competitors due to its superior features and value for money.
Ratings & Reviews
4.9
22 Reviews
Customers commend the product for its exceptional quality and easy installation process, even with basic tools. The parts are reported to be of high caliber, with excellent fit and finish. Several users appreciated the fact that the kit included all necessary components. Some highlighted features include tubular control arms, coil overs for accurate control arm alignment, and the ability to customize color on raw steel parts. There was a particular appreciation for the polished coil overs and chrome springs, and the adjustable ride height. A couple of users remarked that rubber front brake lines were provided instead of preferred braided lines. Overall, users recommended this product over competitors due to its superior features and value for money.
4.9
22 reviews
5
19
4
3
3
0
2
0
1
0
Filter by Ratings
Great communication and service!
5.0
2 months ago
Uncle T
Oklahoma City
Verified
got on the phone and helped me make changes I needed to a kit.
Would Recommend
I would buy this again
5.0
3 months ago
Lawnbouy
Alberta Canada
Verified
I like the heavy tubes.
Would Recommend
Yes
5.0
5 months ago
Louis
Ky
Verified
Fit great, good instructions. Big improvement over stock
Would Recommend
Yes I would buy again
5.0
5 months ago
Louis
Ky
Verified
very good quality, nice fitment, worked great.
Would Recommend
Install straight forward. Good instructions
5.0
6 months ago
Louis
Ky
Verified
Great details with instruction. Great quality easy to install
Would Recommend
I would definitely recommend.
5.0
2 years ago
Mopar bandit
Bruner mo.
Quick shipping, great packaging, top quality craftsmanship. All around best product I have ever bought for any hot rod.
Would Recommend
In the process of installing it
5.0
3 years ago
Darren
Surrey B.C.
Verified
So far excellent
Would Recommend
i would buy aginitthe
5.0
4 years ago
james
neb
Verified
a very good guality
Would Recommend
Great place to deal with
5.0
4 years ago
Dave
Missouri
Verified
I haven't installed the mustang ll front end in my 34 Chevy pickup yet but all the parts look to be real good quality. Everyone I spoke to were very nice and helpful when ordering from Speedway
Would Recommend
Great Product
5.0
5 years ago
Bill
East Tennessee
Verified
I bought this kit for my 54 F100. everything fit as it said it would. I bought the kit with the standrd spindles and swapped them out for the 2" dropped after I installed the kit to see the ride height. No hassel at all.
Would Recommend
Showing 10 of 22 reviews
Fitment
Fitment
1974-1978 Ford Mustang II
1974-1980 Ford Pinto
1975-1980 Mercury Bobcat
