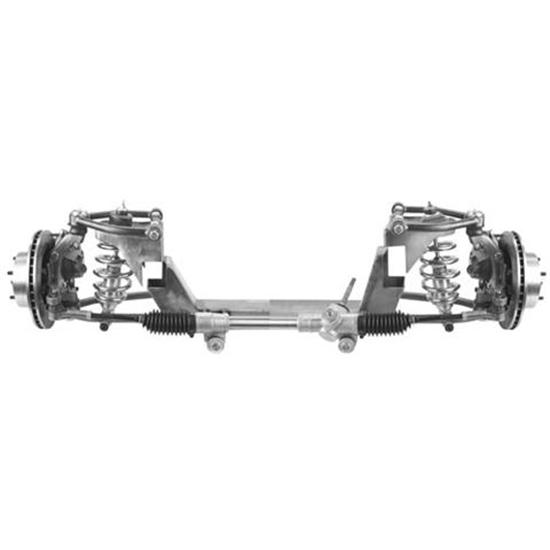

Mustang II IFS, Narrow Control Arms, Coilover Springs, Stock Spindles
74-78 Ford Mustang II, 74-80 Ford Pinto, 75-80 Mercury Bobcat, IFS Front Suspension Type
- Works with all Speedway and Heidt's crossmembers
- Features 5/8" narrower tubular control arms reducing the track width to 1.25" overall allowing more room between tire and fender
- Performance upgrade to coil-over shocks with your choice of spring rate to fine tune your suspension and handling
- 11" vented rotors dissipate heat and create more torque on the wheel, features 5 on 4-1/2" bolt pattern with 1/2"-20 studs, common GM metric calipers with a 2-1/2" bore for proven braking performance and serviceability
- Heat treated forged steel stock height spindles retains stock factory geometry and provide years of service
Complete, hub-to-hub kit includes 5/8" narrower upper control arms, 5/8" narrower offset strutless lowers, new standard spindles, coilovers, new manual or rebuilt power rack & pinion with bushings and new tie rods. The 11" brake kit features GM Metric calipers with rubber hoses, with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.
Hub-to-hub kit includes 5/8" narrower upper and offset strutless lower control arms, new standard spindles, rubber brake lines, chrome coilovers, new manual or rebuilt power rack & pinion with bushings and new tie rods. The 11" brake kit features GM Metric calipers, with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.
- Works with all Speedway and Heidts crossmembers
- Kit Includes:
- 5/8" narrower Tubular Upper and Lower Strutless Control Arms
- New Stock Spindles
- Rack and Pinion with bushings and tie rods
- 11" brake kit with GM calipers
- Add proper crossmember to complete kit.
Spring Rate Chart (Link)
Must include Mustang II crossmember for complete installation (sold separately)
Note: When using 5/8" narrower control arms, 5/8" must be removed from each inner tie rod end.
Why go with tubular control arms?
The most obvious reason is the looks. Tubular control arms and strut rods give your hot rod a much cleaner and hi-tech appearance than the stock type do. Also, when using the strutless style, you gain more clearance because you no longer have the strut rod or its mount in the way of headers, etc. Another bonus is that the tubular control arms are available in 5/8" narrower than stock, which helps tuck the wheels up under the fenders without having to buy expensive special offset wheel. When using 5/8" narrower control arms, 5/8" must be removed from each inner tie rod end.
Note: Applications where the vehicle has fenders that mount directly on top of the frame, the fenders will require extensive modification to allow clearance for the upper cross member section.
Note: These kits require the purchase of a Mustang II crossmember (sold separately). Many of our Speedway and Heidts brand crossmembers will work with Manual Rack and Pinion Steering ONLY. When purchasing our crossmembers, be sure to look for their correspondence with power racks if selecting a power rack with our Mustang II IFS kits. With all Mustang II aftermarket crossmembers, spacers and longer bolts must be used with the later (Fox-body) power rack (spacers included).
Finding the right control arms means finding the correct track width: Our Mustang II kits feature 11" rotors. Track width, which is hub face to hub face where the wheels bolt on, will be 57.5". Wheel and tire combination and customer preference determine whether to use the
standard control arms or the 5/8" narrower. The narrower control arms reduce the track with by a total of 1.25". See the link below for
various track widths with different options.
Hub-to-Hub Kit (Less Crossmember)
- Tubular Upper Control Arms
- Tubular No-Strut Lower Control Arm
- New Stock Spindles
- Coil-overs w/ Spring
- Fixed Valving
- Spring Adjustable from stock to 2" lower
- New Manual or Power Rack & Pinion
- New Tie Rod Ends
- New 11" Brake Kit
- 5x4-1/2" or 5x4-3/4" Bolt Circle
Note: Additional items may be needed to complete installation. You may want to include our Mustang II ride height adjusters (91034444) for installation with these IFS kits to fine tune your final ride height up to 2".
Note: If using these kits with Speedway or Heidts crossmembers for 1948-1956 Ford Pickups, 1955-1959 Chevy Pickups, or universal crossmembers for 27-1/2" - 33-1/2" frame widths, you will be required to purchase 2" Inner Tie Rod Extensions such as (91034345)(Manual application for Speedway rack # 910-34344 & Flaming River/Maval racks or Power application for Must II/T-Bird racks) or (91034346)(For Speedway Manual rack application # 910-34340-Man).
