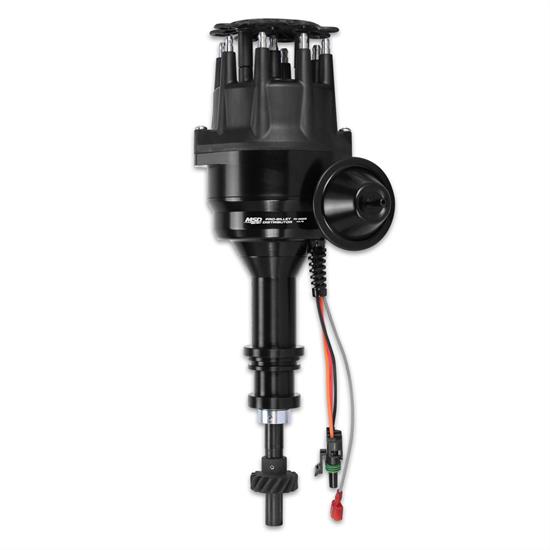

MSD 83503 Distributor, 351C-460 Ford

Name: MSD 83503 Distributor, 351C-460 Ford
Brand: MSD
SKU: 54783503
Price: 899.95 USD
Availability: InStock

Write a Review

Ask a Question

Cap Color:

Black

Red Black (Marine - W/ Steel Gear)Black (W/ Steel Gear)Black (Marine)

$899.95

/each

Factory Shipped

$979.95

Save $80.00

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

HEI / Male Cap Type, HEI / Male Cap Terminal Style

See more details

Key Specs

MFG. Part #	83503
Brand	MSD
Cap Type	HEI / Male
Advance Type	Mechanical and Vacuum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

MSD 83503 Details

The Pro-Billet Ready-to-Run distributor is the perfect upgrade for outdated points distributors or bulky HEIs. Simply install the distributor in the engine, connect three wires to the coil and fire it up! A maintenance-free magnetic pick-up accurately triggers the module. The increased output of the amplifier easily outperforms stock ignitions and will smooth out the engines idle, improve starting and provide a much higher rpm range.

The Ready-to-Run features MSD’s adjustable mechanical advance which allows you to custom tailor an ignition curve to match your engine’s needs. There is also a vacuum advance canister to help improve economy. For positive street performance, the Ready-to-Run is the best choice. Includes a separate tach circuit that is ideal to trigger a tach or an aftermarket EFI such as an Atomic EFI system.
Features:

Simple and clean installation with only three wires to connect
Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
Does not require an MSD Ignition Control
CARB E.O. Approved
Built-in rev limiter to protect your engine
O-ring seals can be added to modified blocks to improve oil pressure control
Special oil tract improves lubrication to the distributor and cam gear
Nylon pads ensure smooth operation of the advance weights
Powerful built-in module produces a 7.5 amp single spark through high rpm
Easy-to-adjust mechanical advance with supplied springs and stop bushings
Vacuum advance canister for improved economy (can be locked out)
CNC machined billet aluminum housing and billet aluminum base for long life and great looks
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
Polished steel shaft is QPQ coated and guided by a sealed ball bearing providing smooth operation
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
Mechanical advance assembly can be locked out for crank trigger systems
Advance weight pins are staked and tig welded to the plate for superior strength
Fits Chrysler V8

Instructions (pdf)

Guides & Documents

Distributors Installation Instructions (54783503)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

MSD 83503 Specifications

KEY SPECS
MFG. Part #	83503
Brand	MSD
Cap Type	HEI / Male
Advance Type	Mechanical and Vacuum

GENERAL
External Ignition Box Required	No
Cap Terminal Style	HEI / Male
Trigger Style	Magnetic
Hall Effect	No
Sync Signal	No
Trigger Sensors	Single
Gear Material	Iron
Gear Rotation	Standard
Distributor Cap Color	Black
Ignition Box Required	No
Mechanical Tach Drive	No
Slip Collar	No
Housing Material	Billet Aluminum
Housing Finish	Gloss
Marine Use	No
Sold in Quantity	Each
GTIN Code	085132835034

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1971-1974 DeTomaso Pantera

351C Ford 335 Series Cleveland V8

1981-1987 DeTomaso Pantera

351C Ford 335 Series Cleveland V8

1970-1971 Ford Country Sedan

351C Ford 335 Series Cleveland V8

1972-1974 Ford Country Sedan

351C Ford 335 Series Cleveland V8
460 Ford 385 Series Big Block V8

1970-1971 Ford Country Squire

351C Ford 335 Series Cleveland V8

1972-1974 Ford Country Squire

351C Ford 335 Series Cleveland V8
460 Ford 385 Series Big Block V8

1970-1971 Ford Custom

351C Ford 335 Series Cleveland V8

1972 Ford Custom

351C Ford 335 Series Cleveland V8
460 Ford 385 Series Big Block V8

1970-1971 Ford Custom 500

351C Ford 335 Series Cleveland V8

1972-1974 Ford Custom 500

351C Ford 335 Series Cleveland V8
460 Ford 385 Series Big Block V8

1975-1976 Ford Custom 500

460 Ford 385 Series Big Block V8

1976-1980 Ford E-150 Econoline

460 Ford 385 Series Big Block V8

1976-1977 Ford E-150 Econoline Club Wagon

460 Ford 385 Series Big Block V8

1979 Ford E-150 Econoline Club Wagon

460 Ford 385 Series Big Block V8

1975-1980 Ford E-250 Econoline

460 Ford 385 Series Big Block V8

1975-1991 Ford E-250 Econoline Club Wagon

460 Ford 385 Series Big Block V8

1975-1996 Ford E-350 Econoline

460 Ford 385 Series Big Block V8

1977-1996 Ford E-350 Econoline Club Wagon

460 Ford 385 Series Big Block V8

1996 Ford Econoline Super Duty

460 Ford 385 Series Big Block V8

1975-1976 Ford Elite

460 Ford 385 Series Big Block V8

1988-1997 Ford F Super Duty

460 Ford 385 Series Big Block V8

1975-1979 Ford F-150

460 Ford 385 Series Big Block V8

1973-1979 Ford F-250

460 Ford 385 Series Big Block V8

1983-1997 Ford F-250

460 Ford 385 Series Big Block V8

1973-1979 Ford F-350

460 Ford 385 Series Big Block V8

1983-1997 Ford F-350

460 Ford 385 Series Big Block V8

1970 Ford Fairlane

351C Ford 335 Series Cleveland V8

1970 Ford Falcon

351C Ford 335 Series Cleveland V8

1970-1971 Ford Galaxie 500

351C Ford 335 Series Cleveland V8

1972-1974 Ford Galaxie 500

351C Ford 335 Series Cleveland V8
460 Ford 385 Series Big Block V8

1972 Ford Gran Torino

351C Ford 335 Series Cleveland V8

1973-1974 Ford Gran Torino

351C Ford 335 Series Cleveland V8
460 Ford 385 Series Big Block V8

1975-1976 Ford Gran Torino

460 Ford 385 Series Big Block V8

1970-1971 Ford LTD

351C Ford 335 Series Cleveland V8

1972-1974 Ford LTD

351C Ford 335 Series Cleveland V8
460 Ford 385 Series Big Block V8

1975-1978 Ford LTD

460 Ford 385 Series Big Block V8

1970-1973 Ford Mustang

351C Ford 335 Series Cleveland V8

1970-1971 Ford Ranch Wagon

351C Ford 335 Series Cleveland V8

1972-1974 Ford Ranch Wagon

351C Ford 335 Series Cleveland V8
460 Ford 385 Series Big Block V8

1970-1973 Ford Ranchero

351C Ford 335 Series Cleveland V8

1974 Ford Ranchero

351C Ford 335 Series Cleveland V8
460 Ford 385 Series Big Block V8

1975-1977 Ford Ranchero

460 Ford 385 Series Big Block V8

1972-1976 Ford Thunderbird

460 Ford 385 Series Big Block V8

1970-1972 Ford Torino

351C Ford 335 Series Cleveland V8

1973-1974 Ford Torino

351C Ford 335 Series Cleveland V8
460 Ford 385 Series Big Block V8

1975-1976 Ford Torino

460 Ford 385 Series Big Block V8

1968-1978 Lincoln Continental

460 Ford 385 Series Big Block V8

1968-1971 Lincoln Mark III

460 Ford 385 Series Big Block V8

1972-1976 Lincoln Mark IV

460 Ford 385 Series Big Block V8

1977-1978 Lincoln Mark V

460 Ford 385 Series Big Block V8

1972-1974 Mercury Colony Park

460 Ford 385 Series Big Block V8

1972 Mercury Cougar

351C Ford 335 Series Cleveland V8

1973-1976 Mercury Cougar

460 Ford 385 Series Big Block V8

1975-1978 Mercury Grand Marquis

460 Ford 385 Series Big Block V8

1972-1978 Mercury Marquis

460 Ford 385 Series Big Block V8

1973-1976 Mercury Montego

460 Ford 385 Series Big Block V8

1972-1974 Mercury Monterey

460 Ford 385 Series Big Block V8
