Part # 54764253

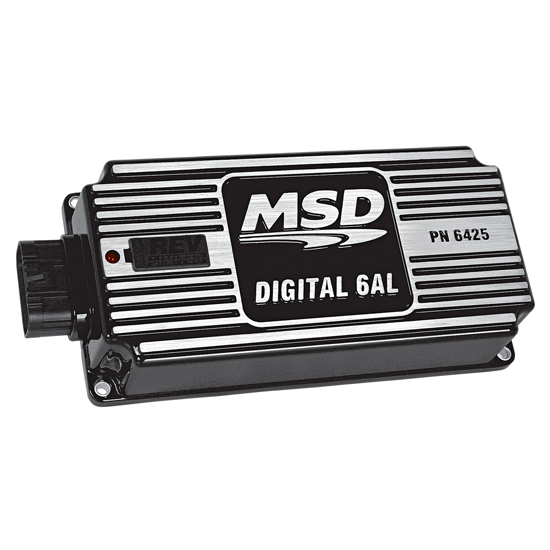

MSD 64253 Digital Ignition Control w/ Rev Control, 6AL, Black

by

|

  • Features built-in LED for system checks
  • All wires exit through a locked, sealed connector
  • Has a high output of 530 volts and 135mJ of spark energy

$305.95

each

In Stock


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, Capacitive Discharge Ignition Box Output

  • Features built-in LED for system checks
  • All wires exit through a locked, sealed connector
  • Has a high output of 530 volts and 135mJ of spark energy
  • The efficient components use less current to produce more power
  • Able to set an rpm limit with two rotary dials in 100 rpm increments

Key Specs

MFG. Part #64253
Ignition Box OutputCapacitive Discharge
Rev Limiter IncludedYes
CircuitryDigital
Data AcquisitionNo

Need To Know

This Product Will Ship Free

Need help? Call 800.979.0122

Quick and Easy Returns

Details

The MSD 6AL Ignition Control set the standards that other ignitions strive to reach. In fact, you’ll find ignitions from other companies that carry the 6AL name (and in some cases, the same part number). MSD raised the bar even higher with the revised Digital 6AL Ignition Control!

The wiring of the Digital 6AL is routed out one end of the unit through a sealed and locking connector. This eases installation and keeps your wiring looking neat and clean. The rev limiter of the 6AL is located right on top of the housing for easy access to the two rotary dials to set the limit in 100 rpm increments.

Inside the Digital 6AL you’ll find a microprocessor that monitors and controls every firing and rev limit. The circuits are updated with efficient components that help the ignition produce more power while drawing less current! In fact, the Digital 6AL delivers over 530 volts to the coil with up to 135mJ of spark energy for every firing! Increased output combined with MSD’s proven
multiple spark series is a win-win situation!

The Digital 6AL is supplied with the wiring harness and the components you’ll need for installation. The 6AL is also supplied with vibration mounts. Both ignitions are compatible on 4, 6 or 8-cylinder engines with 12-volt, negative ground electrical systems. They’ll accept trigger inputs from breaker points, amplifiers and magnetic pickups.
Features:

  • High output with 530 volts and 135mJ of spark energy
  • Efficient components use less current to produce more power
  • Set an rpm limit with two rotary dials in 100 rpm increments
  • Built-in LED for system checks
  • All wires exit through a locked, sealed connector
  • Compatible with 4, 6 or 8-cylinder engines

Notes

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Charts

Specifications

KEY SPECS
MFG. Part #64253
BrandMSD
Ignition Box OutputCapacitive Discharge
Rev Limiter IncludedYes
CircuitryDigital
Data AcquisitionNo
GENERAL
RPM Range15,000 RPM with 14.4 Volts
Timing RetardNone
Coil IncludedNo
Spark Series Duration20 degree Crankshaft Rotation
Primary Voltage520-540 Volts output to coil
Secondary Voltage45,000 Volts
Spark Output135-145 MJ
Voltage Required12-15 Volts
Current Draw0.7 Amp per 1000 RPM
GTIN Code085132642533
Overall Length8.00"
Overall Width4.00"
Overall Height1.88"
ColorBlack
Sold in QuantityEach
Emission Code1
Product Type6AL Ignition
EO#D-40-43
