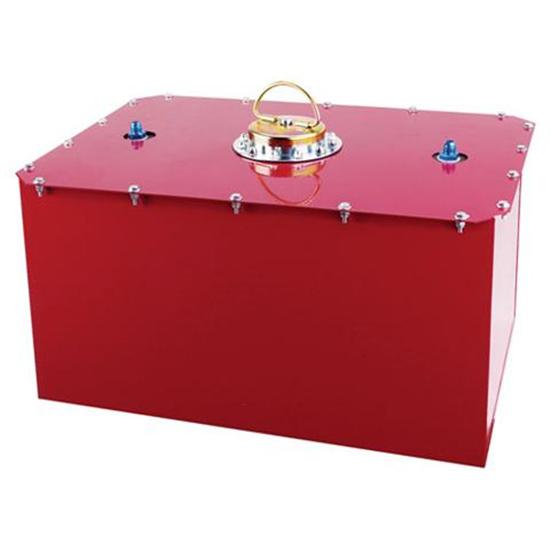

JAZ Products 270-222-NF 22 Gallon Steel Fuel Cell, 25.5 x 17-1/8 x 14

#45822210

JAZ Products 270-222-NF 22 Gallon Steel Fuel Cell, 25.5 x 17-1/8 x 14

Name: JAZ Products 270-222-NF 22 Gallon Steel Fuel Cell, 25.5 x 17-1/8 x 14
Brand: Jaz Products
SKU: 45822210
Price: 648.99 USD
Availability: InStock
Rating: 4.7 (3 reviews)

3 Reviews

Ask a Question

Has a D-ring bail handle cap assembly
Measures 25-1/2" long, 17-1/8" wide, and 14" deep
The 20 gauge welded steel container powder coated red

Capacity:

22 Gallon (25.5"x17"x14")

8 Gallon 12 Gallon 16 Gallon 16 Gallon (IMCA)

$648.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 22 gallons Capacity, 14" Overall Height

Has a D-ring bail handle cap assembly
Measures 25-1/2" long, 17-1/8" wide, and 14" deep
The 20 gauge welded steel container powder coated red
Cell has a seamless cross-linked polyethylene inner shell
Comes with a anodized -8 AN fuel pickup and tip-over valve vent

See more details

Key Specs

MFG. Part #	270-222-NF
Brand	Jaz Products
Capacity	22 gallons
Material Type	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

Carefully determine the size of fuel cell needed. Depending on the capacity, a full fuel cell will generally weigh between 100 and 200 lbs. Buy the optimum size fuel cell to best accommodate weight bias and fuel consumption.
The fuel pickup comes in from the top center of the cell and has a hose attached to it that hangs down and rests against the bottom of the cell. It can be rotated if needed, depending on what direction you are planning to install the cell in your specific application.
These fuel tanks have no certification tags. They are approved for most racing where a bladder is not required.
The top lip sticks out 3/4" further on each side of the fuel cell.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Jaz Products 270-222-NF Details

The 20 gauge steel can encloses a tough cross-link polyethylene cell. Includes fuel cell, steel can, IMCA required tip-over valve, and 4" diameter twist-on cap. Has a -8 AN fuel line hookup and return vent. Safety foam sold separately.

Seamless cross-linked polyethylene inner shell
20 gauge welded steel container powder coated red
D-Ring bail handle cap assembly
Anodized -8 AN fuel pickup
Anodized -8 AN tip-over valve vent
Pickup hose routed to right rear corner

Item Details

25-1/2" Long, 17-1/8" Wide, 14" Deep
44.5 lbs.

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CARB warning

Jaz Products 270-222-NF Specifications

KEY SPECS
MFG. Part #	270-222-NF
Brand	Jaz Products
Capacity	22 gallons
Material Type	Steel

GENERAL
Fuel Type	Gasoline \| Alcohol \| E85 \| Nitrous
Overall Length	25.5"
Overall Height	14"
Overall Width	17.13"
Overall Length Range	25.00" to 25.99"
Overall Height Range	14.00" to 14.99"
Overall Width Range	17.00" to 17.99"
Finish	Powder Coated
Color	Red
Outlet Fitting Quantity	1
Outlet Fitting	-8 AN
Return Fitting	-8 AN
Fuel Cell Cap Style	D-ring Bail Handle
Safety Foam Included	No
Sold in Quantity	Each
GTIN Code	000270222003
