Product Summary

Mid-Length Header Tube Type, Round Exhaust Port Shape

    Key Specs

    Header Tube TypeMid-Length
    Exhaust Port ShapeRound
    Flange StyleStandard
    Primary Tube Diameter1-3/4"
    Material TypeSteel

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Hedman Hedders 69716 Details

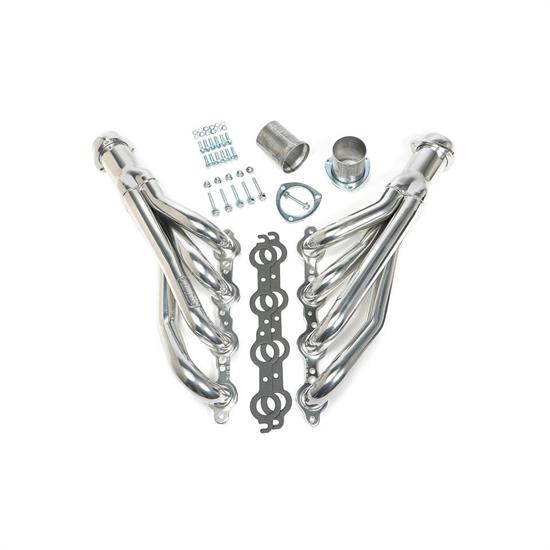

    Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and mid-length tube headers for Chevy & GMC Trucks for decades, so designing a good fitting, great performing set of headers for the popular LS engine swap. Each set uses smooth flowing, CNC mandrel bent tubes that are hand-welded to ensure each pair is identical to the next. The stout 3/8" header flanges ensure a great seal that will resist warping, and Hedman's unique, gasketless ball and socket collector design allows your 1/2 or 3/4 ton Chevy/GMC's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. Hedman is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

    • Mid length
    • HTC Silver Ceramic Coated
    • Fits 1967-87 Chevy C10/C20 Trucks & SUVs
    • Sold as a pair

    Guides & Documents

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Hedman Hedders 69716 Specifications

    KEY SPECS
    MFG. Part #69716
    BrandHedman Hedders
    Header Tube TypeMid-Length
    Exhaust Port ShapeRound
    Flange StyleStandard
    Primary Tube Diameter1-3/4"
    Material TypeSteel
    ColorSilver
    Weld-UpNo
    Collector Diameter3 Inch
    FinishCeramic Coated
    Collector Attachment TypeBall and socket
    Hardware IncludedYes
    Gasket(s) IncludedYes
    Collector Reducers IncludedYes
    Collector Reducer Exit Diameter2.5"
    GENERAL
    Sold in QuantityPair
