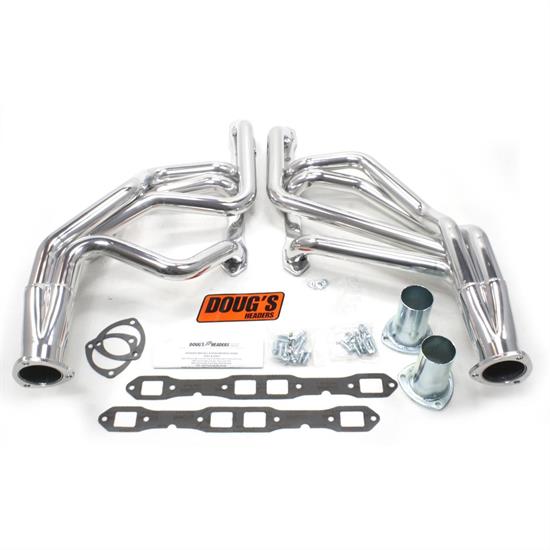

Doug's Headers D451 Full Length Header, 1-3/4 In, 62-72 Mopar, CC
Doug's Headers D451 Full Length Header, 1-3/4 In, 62-72 Mopar, CC

Doug's Headers D451 Full Length Header, 1-3/4 In, 62-72 Mopar, CC

383 Chrysler Big Block V8, 400 Chrysler Big Block V8, Full-length Header Tube Type, Steel

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Doug's Headers D451 Full Length Header, 1-3/4 In, 62-72 Mopar, CC
Doug's Headers D451 Full Length Header, 1-3/4 In, 62-72 Mopar, CC
Doug's Headers D451 Full Length Header, 1-3/4 In, 62-72 Mopar, CC
X
Doug's Headers D451 Full Length Header, 1-3/4 In, 62-72 Mopar, CC
Zoomed In Image
We estimate this item will ship on or before May 19th.
Part # 447D451
Save 32%
$673.46
$1,001.68
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Designed specifically for the 62-72 Mopar engines
  • Features 3/8" thick machined flanges that will not warp
  • Built with CNC mandrel bent tubes for an accurate fit & better flow
  • The precision formed long transition collectors and long tube design reduces backpressure and increases horsepower
  • Tubes are pre-polished to remove scratches and finished with a Metallic Ceramic Thermal Barrier Coating

Details

Header Tube Type:
Full-length
Finish:
Ceramic Coated
Flange Style:
Standard
Primary Tube Diameter:
1-3/4"
Material Type:
Steel
Color:
Silver
Weld-Up:
No
MFG. Part #:
D451
Collector Diameter:
3 Inch
Hardware Included:
Yes
Gasket(s) Included:
Yes
Sold in Quantity:
Pair
GTIN Code:
694342509682

Info

Coated Dodge Challenger (70-74) 383, 400 Engine, Charger, R/T (66-72) 383, 400 Engine, Coronet, Coronet Wagons (62-72) 383, 400 Engine, Super Bee (68-72) 383, 400 Engine, Plymouth Barracuda (70-74) 383, 400 Engine, Belvedere (62-72) 383, 400 Engine, Fury (No C Bodies) (62-72) 383, 400 Engine, GTX (66-72) 383, 400 Engine, Roadrunner (68-72) 383, 400 Engine. This part comes standard with Metallic Ceramic Thermal Barrier Coating (MCTBC). MCTBC protects and extends the life of headers by creating a thermal barrier that significantly lowers underhood temperatures and protects the substrate metal from thermal fatigue. It also provide corrosion resistance to protect it for years to come.

Please see our online catalog for specific application information.

Every Dougs header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Dougs headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.Every Dougs header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Dougs headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.

  • 3/8" Thick machined flanges... no warping
  • CNC mandrel bent tubes... accurate fit & better flow
  • Precision formed long transition collectors and long tube design... reduces backpressure and increases higher RPM horsepower
  • Heavy 16 gauge tubing... longer life
  • Tubes are pre-polished to remove scratches and the header isfinished with a Metallic Ceramic Thermal Barrier Coating polished to a high luster appearance offering corrosion and heat resistance up to 1400 degrees

Application

1970-1971 Dodge Challenger 6.3L/383 V8
1972-1974 Dodge Challenger 6.6L/400 V8
1966-1970 Dodge Charger 6.3L/383 V8
1972 Dodge Charger 6.6L/400 V8
1965-1971 Dodge Coronet 6.3L/383 V8
1972 Dodge Coronet 6.6L/400 V8
1970-1971 Plymouth Barracuda 6.3L/383 V8
1962-1970 Plymouth Belvedere 6.3L/383 V8
1962-1965 Plymouth Fury 6.3L/383 V8
1967-1970 Plymouth GTX 6.3L/383 V8
1968-1970 Plymouth Roadrunner 6.3L/383 V8

Notes

  • Doug's Headers D451 1 3/4" 4-Tube Full Length Header Mopar B Body Big Block Mopar 62-72 Metallic Ceramic Coating
  • Ceramic Coated
  • Collector: 3
  • Port Shape: SAP
  • Primary Tube: 1 3/4
  • Designed for orig. heads (906 or 915 castings) legal for off-highway use (exc. in Calif. or states using Calif. emission standards)
  • Fits with Mopar mini-starter PN P5249644AB
  • Primary: 1 3/4
  • (no c bodies)
  • Designed for orig. heads (906 or 915 castings) legal for off-highway use (exc. in Calif. or states using Calif. emission stds.)
  • with A/C
  • with Floor Shifter

Charts

Installation Instructions (PDF)

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 5 business days for Dougs Headers to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
