Currie 98126 9 Inch Ford Cut-To-Fit 31 Spline Axle, 26 Inch

#91045120

Currie 98126 9 Inch Ford Cut-To-Fit 31 Spline Axle, 26 Inch

Name: Currie 98126 9 Inch Ford Cut-To-Fit 31 Spline Axle, 26 Inch
Brand: Currie
SKU: 91045120
Price: 260 USD
Availability: InStock
Rating: 5 (5 reviews)

5 Reviews

5 Questions

Measures a total of 26" in length
Kit includes one set of five 1/2"-20 Ford style wheel studs
Compatible with "Big Ford - new Style" housing and brakes with 2-1/2" offset

Length:

26 Inch

29 Inch 32 Inch

$260.00

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Semi-Floating Axle Type, 31 Spline Count

Measures a total of 26" in length
Kit includes one set of five 1/2"-20 Ford style wheel studs
Compatible with "Big Ford - new Style" housing and brakes with 2-1/2" offset
Comes drilled for both 5 on 4-1/2" and 5 on 4-3/4" wheel bolt patterns
Axles have 4" of spline which will allow you to cut a maximum of 3" off the spline

See more details

Key Specs

MFG. Part #	98126
Axle Type	Semi-Floating
Overall Length	26"
Spline Count	31
Material Type	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Axle Shafts Installation Instructions (91045120)

Installation Tips

Installation Notes:

When installing new axles in rearends with posi traction differentials, be sure to install the driver's side axle first to keep the splines properly aligned. Failure to do so may move the two splined gears out of alignment, and it may be difficult to install the driver's side axle properly if the passenger side axle is already installed.

If installation of passenger side axle is done first it may require two people when installing the driver's side axle, with both parties rotating reach axle until splines are in line and the driver's side axle fully sides into the housing.

When cutting axles to desired lengths Currie recommends:

Normal steel cutting machinery (cold saw, band saw, chop saw, etc.)
Using a sleeve around the axle such as a small piece of PVC tubing - this allows:
- The axle to be spun in place while being cut
- A perimeter cut around the outer diameter assisting in keeping the cut square
- Avoiding the build-up of too much heat by doing a straight cut (like a knife though a stick of butter)

To ensure you get the most out of your new 9 Inch components, Currie recommends that you perform a proper break-in process:

Use a name brand mineral-based gear oil, preferably 85w140 (Extremely high quality synthetic oils may be used once break-in process has been successfully performed)
Place vehicle on jack stands and let the rearend spin while the vehicle idles - run transmission in both forward and reverse periodically throughout the process
Continue to run the rearend until the pinion gets hot (place hand on bottom of the differential housing to verify this)
Proper break-in allows:
- The ability to install new axles and hit the track the same day without worry
- Extended life for rearend components
- Keeps the quality and life of your gear oil

Note: If you find that your rearend is running somewhat "tight" be sure to add Currie's 9+ Friction Modifier to "loosen up". If a more aggressive performance is desired, Friction Modifier is not needed.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Currie 98126 Details

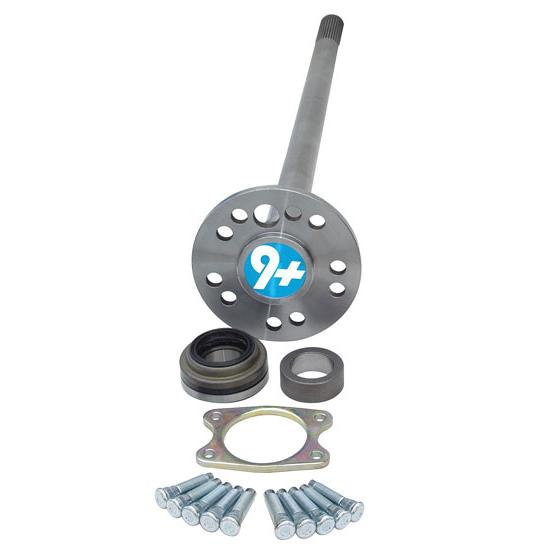

These axles have 4" of spline which will allow you to cut a maximum of 3" off the spline off to obtain the correct length. This is perfect for small shops and will allow you to build your own custom width rear end easily. Axle length is measured from the flange to the end of the splines. All CTF axles come with a full installation package which includes one set of five 1/2"-20 Ford style wheel studs, one set of five 7/16"-20 Chevy style wheel studs, one set-20 tapered roller bearing with race, seal, & collar, and one heavy duty late model large bearing style retainer plate.

9 Inch Ford
31 Spline
26 Inch Long
Drilled for both 5 on 4-1/2" and 5 on 4-3/4" wheel bolt patterns
Includes both 7/16"-20 and 1/2"-20 wheel studs
Compatible with "Big Ford - New Style" housing and brakes with 2-1/2" offset
Includes a set-20 bearing and retainer you will have to press on
Axles sold each, not as a pair

Application

When utilizing an aftermarket axle with disc brake conversion kits, it may be necessary to reduce the diameter of the axle flange to a diameter necessary to adequately fit inside the required Clearance I.D. that the brake hat/brake rotor will require. (see above diagram for illustration)

Charts

Currie Rear Axle Installation Instructions

How to Measure Your Housing Tech Tip (JPG)

Specs

6.25" O.D.
2.8" Register Diameter

Guides & Documents

Axle Shafts Installation Instructions (91045120)

Axle Shafts Technical Information (91045120)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Currie 98126 Specifications

KEY SPECS
MFG. Part #	98126
Brand	Currie
Axle Type	Semi-Floating
Overall Length	26"
Spline Count	31
Material Type	Steel

GENERAL
Position	Rear
Bolt Pattern	Dual: 5 on 4.5" \| 4.75"
Housing End Style	Big Ford/New Style (Torino)
Spline Length	4"
Finish	Natural
Sold in Quantity	Each
Overall Diameter	3.15"
Spline OD	1.33"
Knurl Diameter	0.61"
Knurl Length	0.35"
Offset	2.50"
Stud Length	2.17"
Notes	Includes press in wheel studs (five 7/16" and five 1/2").
Cut to Fit	Yes

Ratings & Reviews

5 Reviews

Overall Assessment

Customers appreciate the product's quality and ease of use, highlighting its precise fit and functional features. They find it simple to cut and fit, enhancing its practicality. Quality of materials used has been commended frequently. Some customers recommend measuring bolt spacing for accurate ordering. Despite suggesting additional size variations, users would definitely repurchase, mainly due to the product's competitive price point and superior quality compared to rival products.

Write A Review

5 reviews

Filter by Ratings

Sort Reviews

Easy to cut&fit

5.0

6 years ago

Dan

Monroe, N.c

Verified

Easy to cut and fit!

I would buy this axle again

5.0

7 years ago

Donatello

Canada

Verified

Fit perfectly all parts as described

Would Recommend

i would buy again

5.0

8 years ago

radnickel

Rolla, Mo

Verified

fits as supposed to

Would Recommend

great way to a custom axle

5.0

10 years ago

dragsled

Anaconda Montana

Verified

this was very easy to use, it is well made and comes with everything you need. watch out for the ford ends, I ordered according to the shape of my housing end. do not do this, measure your bolt spacing before you order. they only make them in 2 lengths, they need to offer a couple more sizes. I would definitely use these again.

Would Recommend

Great Service

5.0

11 years ago

Bobbyd

Fresno

Verified

Love the price and quality

Would Recommend

Showing 5 of 5 reviews

Questions & Answers

5 Questions • 5 Answers

Sort Questions

What is the hub size also know as the brake register ?

by lackofproductinfo

• 11 years ago

1 answer

View Answer

For these axles do I measure from inside the spider gear of the differential to the end of the rear end housing or to the back side of the axle flange? A diagram would be helpful. thanks

by Bruce

• 14 years ago

1 answer

View Answer

how do you measure an axle to know the lenght

by 26

• 15 years ago

1 answer

View Answer

What is the length of these axles or do you specify a length range?

• 15 years ago

1 answer

View Answer

For example: The 26" long axel is 26" uncut?, whitch means that the 26" axel can be 23" to 26"? Just want to be sure because i want to order some axels to sweden. Thank you/ Robert

by giulietta

• 15 years ago

1 answer

View Answer

5 of 5 questions shown
