Clay Smith Hydraulic Cam / Lifter Kit, 296/300 Big Block Chevy 496
496 Chevy Big Block V8, Hydraulic Roller Tappet Camshaft Type, 296 Intake Duration
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
These camshaft / lifter kits are perfect for use with BBC 477 to 496 with 4.25" stroke with Air Flow Research 290 or 305 heads to a max of 6000 rpm. Welcome to the brotherhood of 625HP on pump gas with over 640#/ft. This cam will produce over 600HP with a single plane and right at 600HP with an air-gap intake. Single plane will make 25 more HP and sacrifice 10#/ft. of torque. Carb of choice is a 950HP 4150. 2" headers are recommended. Be sure you have changed U-joints and upgraded rear gears. Muncie 4 speed, use at your own risk. Ok with power brakes. 900 RPM Idle.
- Adv. - 296 / 300
- .050" - 237 / 241
- .200" - 154 / 151
- Lift - .617 / .570
- Centerlines - 103 / 111
- Lobe Sep. - 107

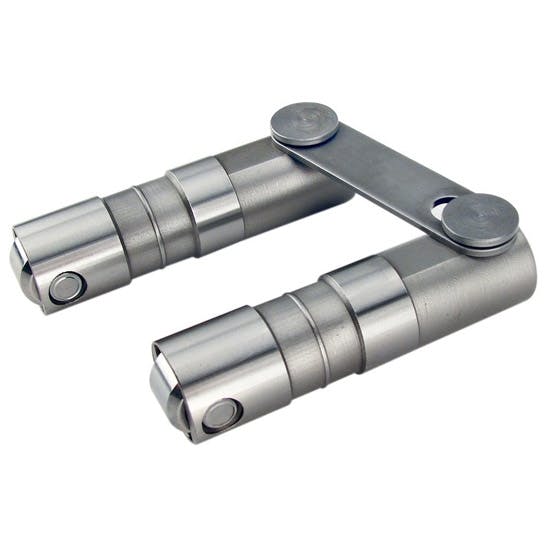

- Includes a set of tie-bar style hydraulic roller lifters

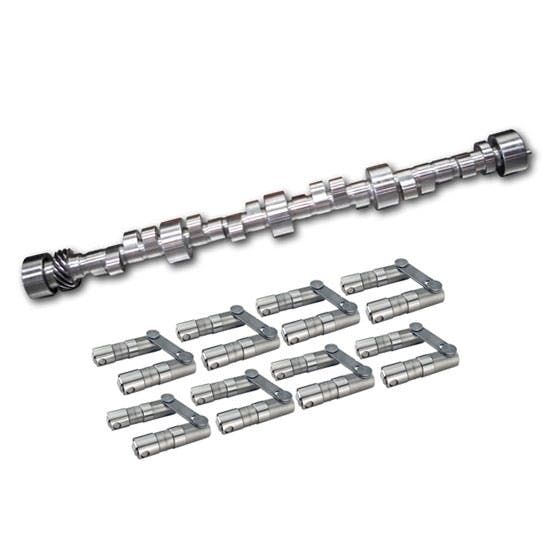

What's In The Kit
Clay Smith 296/300 CamPart # 1603105.1Qty x 1
Clay Smith Cams Big Block Chevy Street Series Hydraulic Roller LiftersPart # 1257401Qty x 1
