Chevrolet Performance 88869604 CT400 GM-Sealed 604 Crate Engine
Discontinued
This item is currently not available
Shop all Chevrolet Performance Crate Engines
Key Specs
| Crate Engine Type | Deluxe Crate Engine |
| Compression Ratio | 9.72:1 |
| Engine Displacement | 350 cu. in. |
| Camshaft Type | Hydraulic Roller Tappet |
| Cylinder Head Material | Aluminum |
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyChevrolet Performance Parts 88869604 Details
Chevrolet Performance Parts 88869604 Details

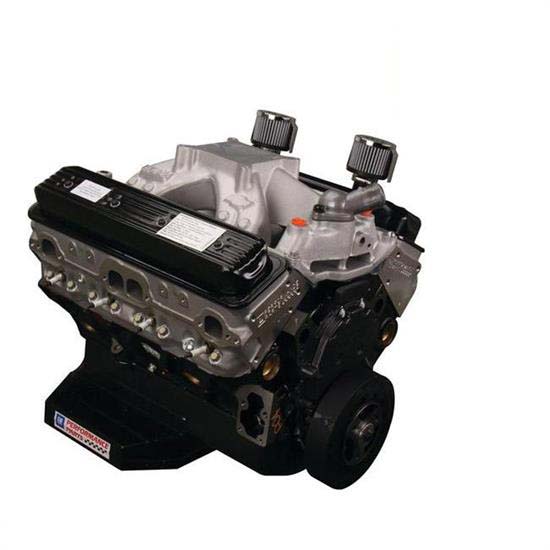

Run up front with the 400-horsepower CT400 crate engine featuring GM Fast Burn heads! GM Performance Parts' Fast Burn cylinder heads are the fast way to the winner's circle – and they're standard on the 350/400 GM racing engine (often referred to as the "604 crate") from GM Performance Parts.
Formerly sold as Chevrolet Performance 19318604, these factory-sealed 604 crate racing engines are based on the popular Fast Burn 385 street crate engine, but include a racing-only 8-quart circle track oil pan with dual kick-out design, along with a valve cover breather kit and special "kool nut" rocker arm design. The assembly also includes an open-plenum high-rise intake manifold and 1.5:1-ratio aluminum roller rockers.
The 604 crate engine includes a bulletproof bottom end, anchored by a forged steel crankshaft and hypereutectic pistons. The 23-degree, Fast Burn aluminum heads enable tremendous power in the small-block V-8 because of a unique chamber design that quickly and completely burns all of the air/fuel mixture – giving you maximum power. With the CT400 racing engine under the hood of your Modified or Late Model, you'll put a "fast burn" on the competition.
- High-revving matched components
- A fraction of the price of a custom engine
- GM-sealed for equal competition
- Popular in Modified and Late Model classes*
- 400 HP @ 5500 RPM
- 400 ft. lbs. of torque @ 4500 RPM
- 4.00" x 3.48" bore x stroke
- 9.6:1 compression ratio
- 92 octane recommended fuel
- 4-bolt main caps
- Cam lift: .474" intake / .510" exhaust
- Cam duration @ .050": 208° intake / 221° exhaust
- 112° lobe separation
- 1.5:1 ratio aluminum roller rocker arms
- 2.00" Intake / 1.55" Exhaust valves
Includes:
- Fully assembled long block
- Black steel valve covers w/ breathers
- Oil pump, pick-up, 8 quart oil pan
- Eliminator Vortec intake manifold
- Spark plugs
- 8" harmonic balancer
- Front timing cover
*Check track/series rules for approved applications.
GM CT400 Spec Sheet (PDF)
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
GM Performance Parts Racing Crate Engines are excluded from the limited warranty.
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
Chevrolet Performance Parts 88869604 Specifications
Chevrolet Performance Parts 88869604 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 88869604 |
| Brand | Chevrolet Performance Parts |
| Crate Engine Type | Deluxe Crate Engine |
| Compression Ratio | 9.72:1 |
| Engine Displacement | 350 cu. in. |
| Camshaft Type | Hydraulic Roller Tappet |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Forged 4340 Steel |
| Carburetor Included | No |
| Intake Manifold Included | Yes |
| Distributor Included | No |
| Connecting Rod Material | Powdered Metal |
| Valve Covers Included | Yes |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Timing Cover Included | Yes |
| Oil Pan Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | Yes |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | No |
| GENERAL | |
| Torque | 400 ft./lbs. |
| Horsepower | 400 horsepower |
| Maximum RPM | 5800 |
| Camshaft Duration (.050 in) | 208° intake / 221° exhaust |
| Camshaft Lift (in) | .474 intake / .510 exhaust |
| Warranty | None |
| Assembled | Yes |
| Camshaft Included | Yes |
| Cylinder Heads | Fast Burn Aluminum, 62cc chambers |
| Rocker Arms | Aluminum roller |
| Rocker Arm Ratio | 1.5:1 |
| Block | Cast iron with 4 bolt main caps |
| Notes | GM-sealed for competition. |
| Sold in Quantity | Each |
