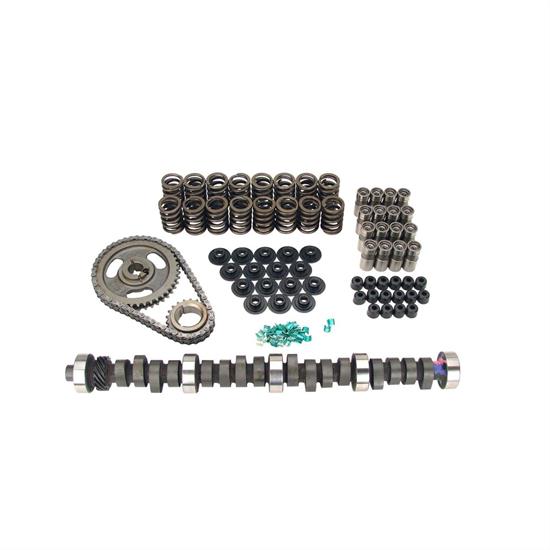

COMP Cams K35-250-4 Xtreme Energy Hydraulic Camshaft Kit, Ford 351W

#282K352504

COMP Cams K35-250-4 Xtreme Energy Hydraulic Camshaft Kit, Ford 351W

Name: COMP Cams K35-250-4 Xtreme Energy Hydraulic Camshaft Kit, Ford 351W
Brand: COMP Cams
SKU: 282K352504
Price: 589.95 USD
Availability: InStock

Write a Review

Ask a Question

Duration (Kit Type):

284/296 (Deluxe Kit)

256/262 (Base Kit)256/262 (Standard Kit)274/286 (Base Kit)

$589.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Flat Tappet Camshaft Type, Lifters Included

See more details

Key Specs

Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	240
Exhaust Duration (.050" Lift)	246
RPM Range	2300 to 6500
Lobe Separation	110 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams K35-250-4 Details

K35-250-4 - Camshaft Kit, FW XE284H-10.

Ford 351W 8 cyl. 1969-1995. Hydraulic-Street / Strip with 2800+ stall, headers, gears, rough idle. Xtreme Energy Hydraulic Flat Tappet Camshafts. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
More vacuum allows an increase in duration for improved performance & assists power brakes
Excellent performance in street carbureted applications
Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

Application

1969-95 Ford 351

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams K35-250-4 Specifications

KEY SPECS
MFG. Part #	K35-250-4
Brand	COMP Cams
Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	240
Exhaust Duration (.050" Lift)	246
RPM Range	2300 to 6500
Lobe Separation	110 °
Lifter Type	Hydraulic Flat Tappet

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.541"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.544"
Sold in Quantity	Kit
Intake Duration	284
Exhaust Duration	296
GTIN Code	036584034261
Grind Number	FW XE284H-10
External Ignition Box Required	No
Valve Springs Required	No
Valve Spring Included	Yes
Lifters Included	Yes
Retainers Included	Yes
Locks Included	Yes
Valve Stem Seals Included	Yes
Timing Chain and Gears Included	Yes
Assembly Lubricant Included	Yes
Pushrods Included	No
Rocker Arms Included	No
Gaskets Included	No

Ratings & Reviews

Be the first to write a review.

Fitment

1988-1989 DeTomaso Pantera

Ford 351W

1978-1996 Ford Bronco

Ford 351W

1969-1974 Ford Country Sedan

Ford 351W

1969-1974 Ford Country Squire

Ford 351W

1969-1972 Ford Custom

Ford 351W

1969-1977 Ford Custom 500

Ford 351W

1975-1983 Ford E-100 Econoline

Ford 351W

1975-1983 Ford E-100 Econoline Club Wagon

Ford 351W

1975-1996 Ford E-150 Econoline

Ford 351W

1975-1996 Ford E-150 Econoline Club Wagon

Ford 351W

1975-1996 Ford E-250 Econoline

Ford 351W

1975-1991 Ford E-250 Econoline Club Wagon

Ford 351W

1975-1996 Ford E-350 Econoline

Ford 351W

1977-1996 Ford E-350 Econoline Club Wagon

Ford 351W

1996 Ford Econoline Super Duty

Ford 351W

1975-1976 Ford Elite

Ford 351W

1978-1979 Ford F-100

Ford 351W

1981 Ford F-100

Ford 351W

1978-1996 Ford F-150

Ford 351W

1978-1997 Ford F-250

Ford 351W

1978-1997 Ford F-350

Ford 351W

1969-1970 Ford Fairlane

Ford 351W

1969-1970 Ford Falcon

Ford 351W

1969-1974 Ford Galaxie 500

Ford 351W

1972-1976 Ford Gran Torino

Ford 351W

1975-1977 Ford Granada

Ford 351W

1969-1986 Ford LTD

Ford 351W

1987-1991 Ford LTD Crown Victoria

Ford 351W

1977-1979 Ford LTD II

Ford 351W

1969-1973 Ford Mustang

Ford 351W

1995 Ford Mustang

Ford 351W

1969-1974 Ford Ranch Wagon

Ford 351W

1969-1979 Ford Ranchero

Ford 351W

1977-1979 Ford Thunderbird

Ford 351W

1969-1976 Ford Torino

Ford 351W
