COMP Cams CL35-246-3 Xtreme Energy Hydraulic Camshaft Kit, Ford 351W

#282CL352463

COMP Cams CL35-246-3 Xtreme Energy Hydraulic Camshaft Kit, Ford 351W

Name: COMP Cams CL35-246-3 Xtreme Energy Hydraulic Camshaft Kit, Ford 351W
Brand: COMP Cams
SKU: 282CL352463
Price: 386.95 USD
Availability: InStock

Write a Review

1 Question

Duration (Kit Type):

274/286 (Base Kit)

256/262 (Base Kit)256/262 (Standard Kit)284/296 (Deluxe Kit)

$386.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Flat Tappet Camshaft Type, Lifters Included

See more details

Key Specs

Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	230
Exhaust Duration (.050" Lift)	236
RPM Range	1800 to 6000
Lobe Separation	110 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams CL35-246-3 Details

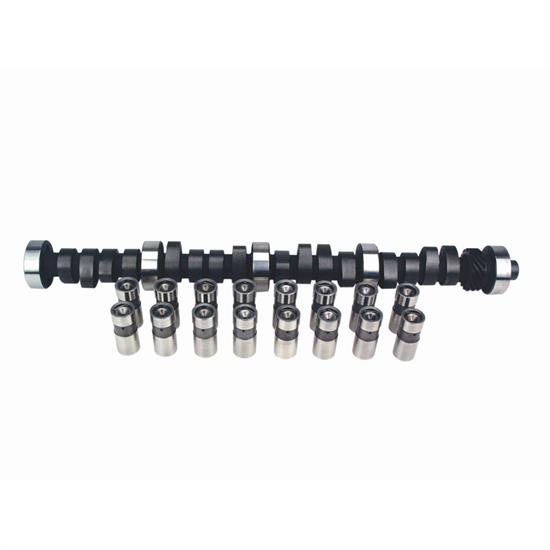

CL35-246-3 - Cam and Lifter Kit, FW XE274H-10.

Ford 351W 8 cyl. 1969-1995. Hydraulic-Very strong torque and throttle response, 2500+ stall. Xtreme Energy Hydraulic Flat Tappet Camshafts. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
More vacuum allows an increase in duration for improved performance & assists power brakes
Excellent performance in street carbureted applications
Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

Application

1969-95 Ford 351

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

COMP Cams CL35-246-3 Specifications

KEY SPECS
MFG. Part #	CL35-246-3
Brand	COMP Cams
Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	230
Exhaust Duration (.050" Lift)	236
RPM Range	1800 to 6000
Lobe Separation	110 °
Lifter Type	Hydraulic Flat Tappet

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.519"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.523"
Sold in Quantity	Kit
Intake Duration	274
Exhaust Duration	286
GTIN Code	036584031321
Grind Number	XE274H
External Ignition Box Required	No
Valve Springs Required	Yes
Valve Spring Included	No
Lifters Included	Yes
Retainers Included	No
Locks Included	No
Valve Stem Seals Included	No
Timing Chain and Gears Included	No
Assembly Lubricant Included	Yes
Pushrods Included	No
Rocker Arms Included	No
Gaskets Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

I am building a Ford 408 stroker I will be running GT40 heads with roller rockers. Can you tell me what push rods I will need for this cam combination? I know they must be hardened and I already have the guide plates.

by Gayle

• 4 years ago

1 answer

View Answer

1 of 1 questions shown
