#282K126754

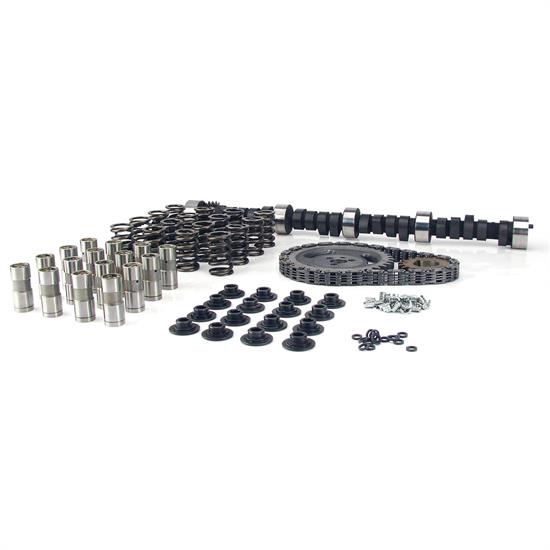

COMP Cams K12-675-4 Xtreme Energy Solid Camshaft Kit, Chevy 5.0/5.7L
256/262 (Base Kit)268/274 (Base Kit)268/274 (Deluxe Kit)274/280 (Standard Kit)282/290 (Base Kit)
$714.95
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Key Specs
| Camshaft Type | Solid Flat Tappet |
| Intake Duration (.050" Lift) | 224 |
| Exhaust Duration (.050" Lift) | 230 |
| RPM Range | 1300 to 5800 |
| Lobe Separation | 110 ° |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams K12-675-4 Details
COMP Cams K12-675-4 Details
Chevrolet 262-400 c.i. 8 cyl. 1955-1998. Solid-Excellent response, good mid-range, noticeable idle. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.
- Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
- More vacuum allows an increase in duration for improved performance & assists power brakes
- Excellent performance in street carbureted applications
- Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Application
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
COMP Cams K12-675-4 Specifications
COMP Cams K12-675-4 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | K12-675-4 |
| Brand | COMP Cams |
| Camshaft Type | Solid Flat Tappet |
| Intake Duration (.050" Lift) | 224 |
| Exhaust Duration (.050" Lift) | 230 |
| RPM Range | 1300 to 5800 |
| Lobe Separation | 110 ° |
| Lifter Type | Mechanical/Solid Flat Tappet |
| GENERAL | |
| Intake Valve Lift w/ Rocker Arm Ratio | 0.477" |
| Exhaust Valve Lift w/ Rocker Arm Ratio | 0.488" |
| Sold in Quantity | Kit |
| Intake Duration | 262 |
| Exhaust Duration | 268 |
| GTIN Code | 036584079347 |
| Grind Number | XS262S |
| Intake Valve Lash | 0.016 |
| Exhaust Valve Lash | 0.016 |
| External Ignition Box Required | No |
| Valve Springs Required | No |
| Valve Spring Included | Yes |
| Lifters Included | Yes |
| Retainers Included | Yes |
| Locks Included | Yes |
| Valve Stem Seals Included | Yes |
| Timing Chain and Gears Included | Yes |
| Assembly Lubricant Included | Yes |
| Pushrods Included | No |
| Rocker Arms Included | No |
| Gaskets Included | No |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
Questions & Answers
1 Question • 1 Answer
Will this work in a 5.7l vortec in a 1998 Chevy 1500?
by Tony
• 5 years ago
1 answer
View Answer
1 of 1 questions shown
Fitment
Fitment
1962-1963 Chevy Corvette
Gen 1 L76 Small Block Chevy
1960-1967 GMC Suburban
Gen 1 L76 Small Block Chevy
