#282K126764

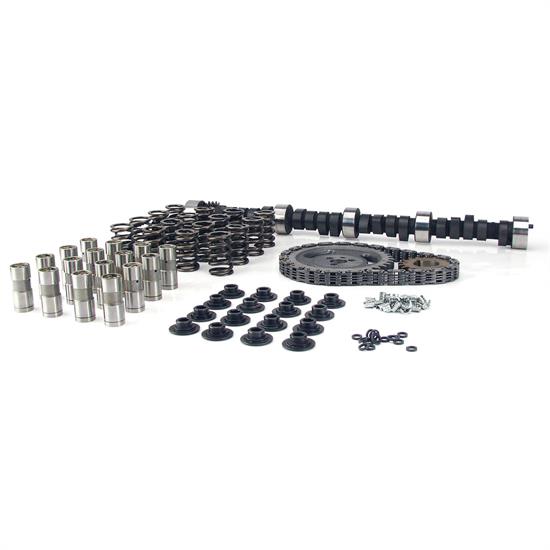

COMP Cams K12-676-4 Xtreme Energy Solid Camshaft Kit, Chevy S/B
282/290 (Base Kit)268/274 (Base Kit)256/262 (Base Kit)274/280 (Standard Kit)262/268 (Deluxe Kit)
$796.95
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Key Specs
| Camshaft Type | Solid Flat Tappet |
| Intake Duration (.050" Lift) | 230 |
| Exhaust Duration (.050" Lift) | 236 |
| RPM Range | 1600 to 6000 |
| Lobe Separation | 110 ° |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams K12-676-4 Details
COMP Cams K12-676-4 Details
Chevrolet 262-400 c.i. 8 cyl. 1955-1998. Solid-Great for street machines, largest cam for stock converter. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.
- Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
- More vacuum allows an increase in duration for improved performance & assists power brakes
- Excellent performance in street carbureted applications
- Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Application
Guides & Documents
COMP Cams K12-676-4 Specifications
COMP Cams K12-676-4 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | K12-676-4 |
| Brand | COMP Cams |
| Camshaft Type | Solid Flat Tappet |
| Intake Duration (.050" Lift) | 230 |
| Exhaust Duration (.050" Lift) | 236 |
| RPM Range | 1600 to 6000 |
| Lobe Separation | 110 ° |
| Lifter Type | Mechanical/Solid Flat Tappet |
| GENERAL | |
| Intake Valve Lift w/ Rocker Arm Ratio | 0.488" |
| Exhaust Valve Lift w/ Rocker Arm Ratio | 0.501" |
| Sold in Quantity | Kit |
| Intake Duration | 268 |
| Exhaust Duration | 274 |
| GTIN Code | 036584079354 |
| Grind Number | CS XS268S-10 |
| Intake Valve Lash | 0.016 |
| Exhaust Valve Lash | 0.016 |
| External Ignition Box Required | No |
| Valve Springs Required | No |
| Valve Spring Included | Yes |
| Lifters Included | Yes |
| Retainers Included | Yes |
| Locks Included | Yes |
| Valve Stem Seals Included | Yes |
| Timing Chain and Gears Included | Yes |
| Assembly Lubricant Included | Yes |
| Pushrods Included | No |
| Rocker Arms Included | No |
| Gaskets Included | No |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
Questions & Answers
Be the first to ask a question.
Fitment
Fitment
1959 Chevy 3A
2-Piece Rear Main Chevy 283
1959 Chevy 3B
2-Piece Rear Main Chevy 283
1959 Chevy 3C
2-Piece Rear Main Chevy 283
1959 Chevy 3D
2-Piece Rear Main Chevy 283
1959 Chevy 3E
2-Piece Rear Main Chevy 283
1959 Chevy 3F
2-Piece Rear Main Chevy 283
1959 Chevy 3G
2-Piece Rear Main Chevy 283
1957-1967 Chevy Bel Air
2-Piece Rear Main Chevy 283
1970-1975 Chevy Bel Air
2-Piece Rear Main Chevy 400
1958-1967 Chevy Biscayne
2-Piece Rear Main Chevy 283
1970-1972 Chevy Biscayne
2-Piece Rear Main Chevy 400
1958-1961 Chevy Brookwood
2-Piece Rear Main Chevy 283
1970-1972 Chevy Brookwood
2-Piece Rear Main Chevy 400
1960-1967 Chevy C10
2-Piece Rear Main Chevy 283
1976-1980 Chevy C10
2-Piece Rear Main Chevy 400
1960-1967 Chevy C10 Suburban
2-Piece Rear Main Chevy 283
1960-1967 Chevy C20
2-Piece Rear Main Chevy 283
1976-1980 Chevy C20
2-Piece Rear Main Chevy 400
1960-1967 Chevy C20 Suburban
2-Piece Rear Main Chevy 283
1976-1980 Chevy C20 Suburban
2-Piece Rear Main Chevy 400
1960-1967 Chevy C30
2-Piece Rear Main Chevy 283
1976-1979 Chevy C30
2-Piece Rear Main Chevy 400
1980-1981 Chevy Camaro
2-Piece Rear Main Chevy 267
1966-1967 Chevy Caprice
2-Piece Rear Main Chevy 283
1970-1976 Chevy Caprice
2-Piece Rear Main Chevy 400
1980-1982 Chevy Caprice
2-Piece Rear Main Chevy 267
1964-1967 Chevy Chevelle
2-Piece Rear Main Chevy 283
1970-1973 Chevy Chevelle
2-Piece Rear Main Chevy 400
1963-1967 Chevy Chevy II
2-Piece Rear Main Chevy 283
1957-1961 Chevy Corvette
2-Piece Rear Main Chevy 283
1957-1958 Chevy Del Ray
2-Piece Rear Main Chevy 283
1959-1960 Chevy El Camino
2-Piece Rear Main Chevy 283
1964-1967 Chevy El Camino
2-Piece Rear Main Chevy 283
1970-1976 Chevy El Camino
2-Piece Rear Main Chevy 400
1979-1982 Chevy El Camino
2-Piece Rear Main Chevy 267
1970 Chevy Estate
2-Piece Rear Main Chevy 400
1976 Chevy G10
2-Piece Rear Main Chevy 400
1975-1980 Chevy G20
2-Piece Rear Main Chevy 400
1967 Chevy G20 Van
2-Piece Rear Main Chevy 283
1975-1980 Chevy G30
2-Piece Rear Main Chevy 400
1958-1967 Chevy Impala
2-Piece Rear Main Chevy 283
1970-1976 Chevy Impala
2-Piece Rear Main Chevy 400
1980-1982 Chevy Impala
2-Piece Rear Main Chevy 267
1960-1967 Chevy K10
2-Piece Rear Main Chevy 283
1975-1980 Chevy K10
2-Piece Rear Main Chevy 400
1960-1967 Chevy K10 Suburban
2-Piece Rear Main Chevy 283
1975-1979 Chevy K10 Suburban
2-Piece Rear Main Chevy 400
1960-1967 Chevy K20
2-Piece Rear Main Chevy 283
1975-1980 Chevy K20
2-Piece Rear Main Chevy 400
1967 Chevy K20 Panel
2-Piece Rear Main Chevy 283
1960-1967 Chevy K20 Suburban
2-Piece Rear Main Chevy 283
1975-1980 Chevy K20 Suburban
2-Piece Rear Main Chevy 400
1977-1980 Chevy K30
2-Piece Rear Main Chevy 400
1975-1979 Chevy K5 Blazer
2-Piece Rear Main Chevy 400
1959-1961 Chevy Kingswood
2-Piece Rear Main Chevy 283
1970-1972 Chevy Kingswood
2-Piece Rear Main Chevy 400
1973-1976 Chevy Laguna
2-Piece Rear Main Chevy 400
1964-1967 Chevy Malibu
2-Piece Rear Main Chevy 283
1973-1976 Chevy Malibu
2-Piece Rear Main Chevy 400
1979-1982 Chevy Malibu
2-Piece Rear Main Chevy 267
1970-1976 Chevy Monte Carlo
2-Piece Rear Main Chevy 400
1979-1982 Chevy Monte Carlo
2-Piece Rear Main Chevy 267
1975-1976 Chevy Monza
2-Piece Rear Main Chevy 262
1957-1961 Chevy Nomad
2-Piece Rear Main Chevy 283
1975 Chevy Nova
2-Piece Rear Main Chevy 262
1957 Chevy One-Fifty Series
2-Piece Rear Main Chevy 283
1976 Chevy P30
2-Piece Rear Main Chevy 400
1961-1962 Chevy P30 Series
2-Piece Rear Main Chevy 283
1959-1961 Chevy Parkwood
2-Piece Rear Main Chevy 283
1957-1958 Chevy Sedan Delivery
2-Piece Rear Main Chevy 283
1960-1967 Chevy Suburban
2-Piece Rear Main Chevy 283
1970-1972 Chevy Townsman
2-Piece Rear Main Chevy 400
1957-1958 Chevy Truck
2-Piece Rear Main Chevy 283
1960 Chevy Truck
2-Piece Rear Main Chevy 283
1957 Chevy Two-Ten Series
2-Piece Rear Main Chevy 283
1958 Chevy Yeoman
2-Piece Rear Main Chevy 283
1966 GMC 1000
2-Piece Rear Main Chevy 283
1960 GMC 1000 Series
2-Piece Rear Main Chevy 283
1962-1965 GMC 1000 Series
2-Piece Rear Main Chevy 283
1960-1965 GMC 1500 Series
2-Piece Rear Main Chevy 283
1966 GMC 2500
2-Piece Rear Main Chevy 283
1960-1965 GMC 2500 Series
2-Piece Rear Main Chevy 283
1960-1966 GMC 3000
2-Piece Rear Main Chevy 283
1960-1966 GMC 3500
2-Piece Rear Main Chevy 283
1967 GMC C25/C2500 Pickup
2-Piece Rear Main Chevy 283
1967 GMC C25/C2500 Suburban
2-Piece Rear Main Chevy 283
1967 GMC C35/C3500 Pickup
2-Piece Rear Main Chevy 283
1973-1974 GMC C35/C3500 Pickup
2-Piece Rear Main Chevy 400
1975-1978 GMC K15
2-Piece Rear Main Chevy 400
1975-1978 GMC K15 Suburban
2-Piece Rear Main Chevy 400
1967-1974 GMC K15/K1500 Pickup
2-Piece Rear Main Chevy 400
1967-1974 GMC K15/K1500 Suburban
2-Piece Rear Main Chevy 400
1979-1980 GMC K1500 Suburban
2-Piece Rear Main Chevy 400
1975-1978 GMC K25
2-Piece Rear Main Chevy 400
1975-1978 GMC K25 Suburban
2-Piece Rear Main Chevy 400
1967 GMC K25/K2500 Pickup
2-Piece Rear Main Chevy 283
1973-1974 GMC K25/K2500 Pickup
2-Piece Rear Main Chevy 400
1967 GMC K25/K2500 Suburban
2-Piece Rear Main Chevy 283
1973-1974 GMC K25/K2500 Suburban
2-Piece Rear Main Chevy 400
1979-1986 GMC K2500 Suburban
2-Piece Rear Main Chevy 400
1967 GMC K35/K3500 Pickup
2-Piece Rear Main Chevy 283
1973-1974 GMC K35/K3500 Pickup
2-Piece Rear Main Chevy 400
1966 GMC P1000
2-Piece Rear Main Chevy 283
1973-1977 GMC Sprint
2-Piece Rear Main Chevy 400
1955-1966 GMC Suburban
2-Piece Rear Main Chevy 283
1956-1960 GMC Truck
2-Piece Rear Main Chevy 283
1965-1966 Studebaker Commander
2-Piece Rear Main Chevy 283
1965-1966 Studebaker Cruiser
2-Piece Rear Main Chevy 283
1965-1966 Studebaker Daytona
2-Piece Rear Main Chevy 283
1966 Studebaker Wagonaire
2-Piece Rear Main Chevy 283
