Product Summary

262, 267, 283, 302, 305, 307, 327, 350, 400

    Key Specs

    Camshaft TypeSolid Flat Tappet
    Intake Duration (.050" Lift)248
    Exhaust Duration (.050" Lift)248
    RPM Range2500 to 6500
    Lobe Separation110 °

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    COMP Cams CL12-224-4 Details

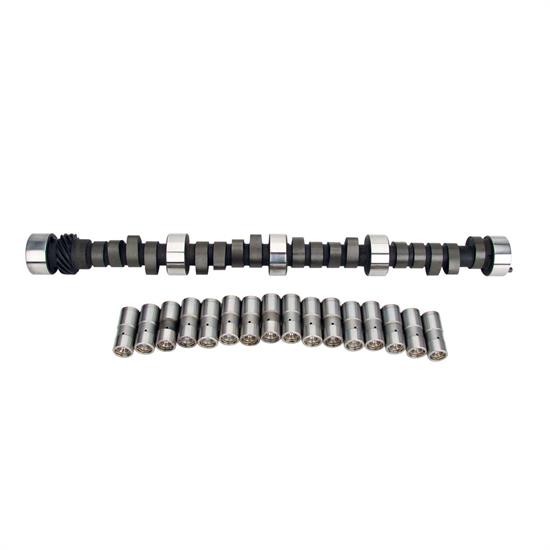

    COMP Cams Magnum 294S-10 Cam and Lifter Kit for Small Block Chevy.

    Chevrolet 262-400 c.i. 8 cyl. 1955-1998. Solid-Maximum street performance, very rough idle, needs headers, 3000 stall and 9.5:1 minimum compression. SMALL BLOCK CHEVY SOLID CAM AND LIFTER KIT - Magnum: Maximum street performance, very rough idle, needs headers, 3000+ stall and 9.5:1+compression.

    • Great high RPM power
    • Easy on valve train parts
    • Can be used with mild ratio rocker arms & traditional performance valve springs
    • Best with aftermarket converter & 9.5:1+ compression

    Application

    1958-2002 Chevy 262-400

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    COMP Cams CL12-224-4 Specifications

    KEY SPECS
    MFG. Part #CL12-224-4
    BrandCOMP Cams
    Camshaft TypeSolid Flat Tappet
    Intake Duration (.050" Lift)248
    Exhaust Duration (.050" Lift)248
    RPM Range2500 to 6500
    Lobe Separation110 °
    Lifter TypeMechanical/Solid Flat Tappet
    GENERAL
    Intake Valve Lift w/ Rocker Arm Ratio0.525"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.525"
    Sold in QuantityKit
    Intake Duration294
    Exhaust Duration294
    GTIN Code036584450283
    Grind NumberCS 294S-10
    Intake Valve Lash0.022
    Exhaust Valve Lash0.022
    External Ignition Box RequiredNo
    Valve Springs RequiredYes
    Valve Spring IncludedNo
    Lifters IncludedYes
    Retainers IncludedNo
    Locks IncludedNo
    Valve Stem Seals IncludedNo
    Timing Chain and Gears IncludedNo
    Assembly Lubricant IncludedYes
    Pushrods Included
    Rocker Arms IncludedNo
    Gaskets IncludedNo
