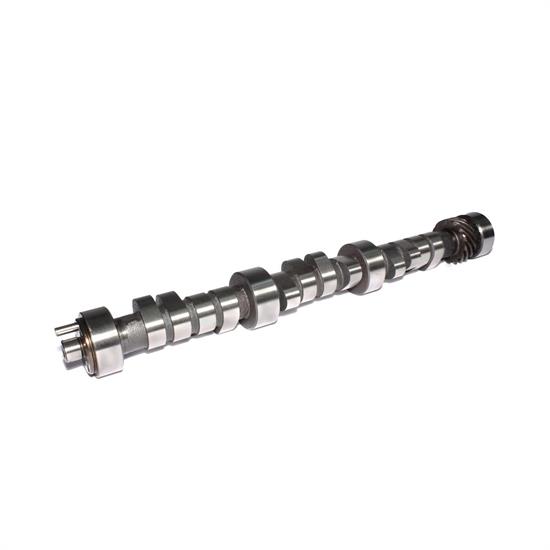

COMP Cams 56-460-8 Magnum Hyd. Roller Camshaft, Chevy 4.3L

#282564608

COMP Cams 56-460-8 Magnum Hyd. Roller Camshaft, Chevy 4.3L

Name: COMP Cams 56-460-8 Magnum Hyd. Roller Camshaft, Chevy 4.3L
Brand: COMP Cams
SKU: 282564608
Price: 577.95 USD
Availability: InStock

Write a Review

Ask a Question

Duration:

270/276 W/ Balance Shaft

260/260 W/ Balance Shaft 260/266 W/ Balance Shaft 260/266 W/O Balance Shaft

$577.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Roller Tappet Camshaft Type

See more details

Key Specs

Camshaft Type	Hydraulic Roller Tappet
RPM Range	2000-5500
Intake Duration (.050" Lift)	215
Exhaust Duration (.050" Lift)	220
Lobe Separation	114 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams 56-460-8 Details

COMP Cams Computer Controlled Magnum 270AHR-14 Hydraulic Roller Camshaft for 4.3L Chevy V6 with Balance Shaft.

GM 4.3L / 262 c.i. 90° V6 1985-2014. For '92-'14 GM 4.3L/262 cid 90° V6 Balance Shaft-Equipped Engines*. Magnum Computer Controlled. Engine Camshaft

Great high RPM power
Easy on valve train parts
Can be used with mild ratio rocker arms & traditional performance valve springs
Best with aftermarket converter & 9.5:1+ compression

Application

1985-14 Chevy 262

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

COMP Cams 56-460-8 Specifications

KEY SPECS
MFG. Part #	56-460-8
Brand	COMP Cams
Camshaft Type	Hydraulic Roller Tappet
RPM Range	2000-5500
Intake Duration (.050" Lift)	215
Exhaust Duration (.050" Lift)	220
Lobe Separation	114 °

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.500"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.510"
Intake Duration	270
Exhaust Duration	276
Sold in Quantity	Each
Grind Number	C6 270AH-R14
GTIN Code	036584063407
External Ignition Box Required	Yes
Valve Springs Required	Yes

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1985-1986 Chevy Astro

Gen 1 LB1 90-Degree Chevy

1985-1986 Chevy C10

Gen 1 LB1 90-Degree Chevy

1985-1986 Chevy C20

Gen 1 LB1 90-Degree Chevy

1985-1986 Chevy Caprice

Gen 1 LB1 90-Degree Chevy

1985-1986 Chevy El Camino

Gen 1 LB1 90-Degree Chevy

1985-1986 Chevy G10

Gen 1 LB1 90-Degree Chevy

1985-1986 Chevy G20

Gen 1 LB1 90-Degree Chevy

1985-1986 Chevy G30

Gen 1 LB1 90-Degree Chevy

1985 Chevy Impala

Gen 1 LB1 90-Degree Chevy

1985-1986 Chevy K10

Gen 1 LB1 90-Degree Chevy

1985 Chevy K20

Gen 1 LB1 90-Degree Chevy

1985-1986 Chevy Monte Carlo

Gen 1 LB1 90-Degree Chevy

1985-1986 GMC C1500

Gen 1 LB1 90-Degree Chevy

1985-1986 GMC C2500

Gen 1 LB1 90-Degree Chevy

1985-1986 GMC K1500

Gen 1 LB1 90-Degree Chevy

1985 GMC K2500

Gen 1 LB1 90-Degree Chevy

1985-1986 GMC Safari

Gen 1 LB1 90-Degree Chevy
