#282126825

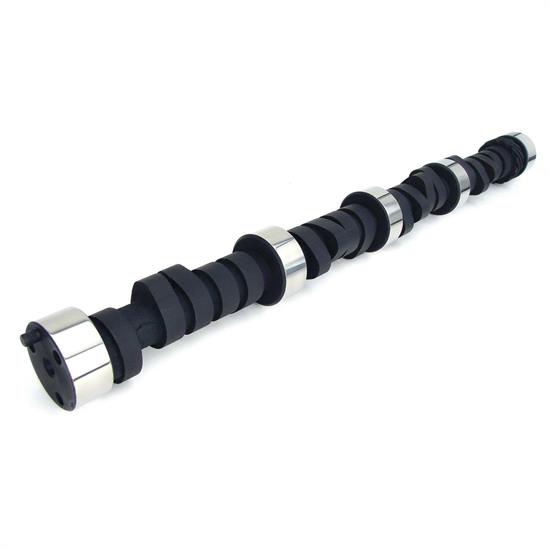

COMP Cams 12-682-5 Oval Track Solid Camshaft, Chevy S/B
$324.95
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before December 13th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
262, 267, 283, 302, 305, 307, 327, 350, 400
See more details
Key Specs
Camshaft Type | Solid Flat Tappet |
RPM Range | 3000-6600 |
Intake Duration (.050" Lift) | 244 |
Exhaust Duration (.050" Lift) | 248 |
Lobe Separation | 107 ° |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams 12-682-5 Details
COMP Cams 12-682-5 Details
Chevrolet 262-400 c.i. 8 cyl. 1955-1998. Solid-.312 Lobe lift - Good for short track restricted with .450, .480 or .500 lift rule. Launcher Series Mechanical Flat Tappet Camshafts. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.
Application
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
COMP Cams 12-682-5 Specifications
COMP Cams 12-682-5 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 12-682-5 |
Brand | COMP Cams |
Camshaft Type | Solid Flat Tappet |
RPM Range | 3000-6600 |
Intake Duration (.050" Lift) | 244 |
Exhaust Duration (.050" Lift) | 248 |
Lobe Separation | 107 ° |
GENERAL | |
Intake Valve Lift w/ Rocker Arm Ratio | 0.468" |
Exhaust Valve Lift w/ Rocker Arm Ratio | 0.468" |
Intake Duration | 270 |
Exhaust Duration | 274 |
Sold in Quantity | Each |
Grind Number | CS 270L312 S7 |
Intake Valve Lash | 0.014 |
Exhaust Valve Lash | 0.014 |
GTIN Code | 036584070498 |
External Ignition Box Required | No |
Valve Springs Required | Yes |
