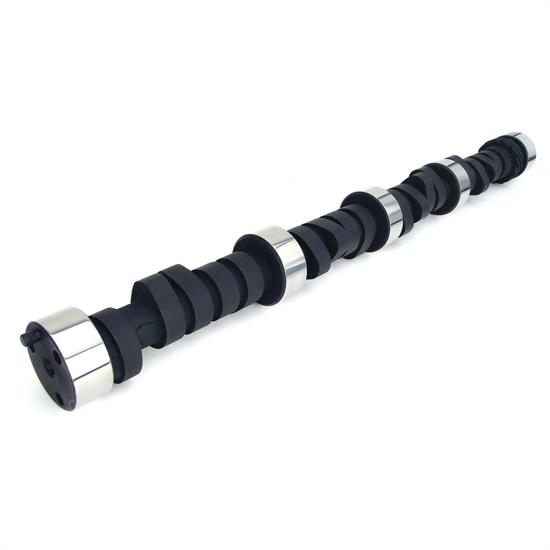

COMP Cams 12-645-5 Oval Track Solid Camshaft, Chevy S/B

#282126455

COMP Cams 12-645-5 Oval Track Solid Camshaft, Chevy S/B

Name: COMP Cams 12-645-5 Oval Track Solid Camshaft, Chevy S/B
Brand: COMP Cams
SKU: 282126455
Price: 325.95 USD
Availability: InStock

Write a Review

1 Question

Duration:

295/295

289/300278/284 (2,800-6,600 rpm)278/284 (3,000-6,800 rpm)274/280 286/292 270/274 (3,000-6,600 rpm)290/304 275/283270/274 (2,800-6,400 rpm)290/296 274/278 286/296

$325.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Solid Flat Tappet Camshaft Type, 4000-7100 RPM Range

See more details

Key Specs

Camshaft Type	Solid Flat Tappet
RPM Range	4000-7100
Intake Duration (.050" Lift)	260
Exhaust Duration (.050" Lift)	260
Lobe Separation	106 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams 12-645-5 Details

COMP Cams Oval Track 295B-6 Solid Camshaft for Small Block Chevy.

Chevrolet 262-400 c.i. 8 cyl. 1955-1998. Solid-Best for slick 3/8 to 1/2 mile track with sustained high RPM. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Application

1958-98 Chevy 262-400

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams 12-645-5 Specifications

KEY SPECS
MFG. Part #	12-645-5
Brand	COMP Cams
Camshaft Type	Solid Flat Tappet
RPM Range	4000-7100
Intake Duration (.050" Lift)	260
Exhaust Duration (.050" Lift)	260
Lobe Separation	106 °

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.555"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.555"
Intake Duration	295
Exhaust Duration	295
Sold in Quantity	Each
Grind Number	295B-6
Intake Valve Lash	0.02
Exhaust Valve Lash	0.022
GTIN Code	036584640424
External Ignition Box Required	No
Valve Springs Required	Yes

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

What lifters would be best for use with this cam in a Small Block Chevy 383; for circle track use ? Please provide a part number if possible, Thanks !

by Brad

• 8 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1959 Chevy 3A

2-Piece Rear Main Chevy 283

1959 Chevy 3B

2-Piece Rear Main Chevy 283

1959 Chevy 3C

2-Piece Rear Main Chevy 283

1959 Chevy 3D

2-Piece Rear Main Chevy 283

1959 Chevy 3E

2-Piece Rear Main Chevy 283

1959 Chevy 3F

2-Piece Rear Main Chevy 283

1959 Chevy 3G

2-Piece Rear Main Chevy 283

1957-1967 Chevy Bel Air

2-Piece Rear Main Chevy 283

1968 Chevy Bel Air

Gen 1 L14 Small Block Chevy

1970-1975 Chevy Bel Air

2-Piece Rear Main Chevy 400

1958-1967 Chevy Biscayne

2-Piece Rear Main Chevy 283

1968 Chevy Biscayne

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Biscayne

2-Piece Rear Main Chevy 400

1969-1973 Chevy Blazer

Gen 1 L14 Small Block Chevy

1958-1961 Chevy Brookwood

2-Piece Rear Main Chevy 283

1969 Chevy Brookwood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Brookwood

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1960-1967 Chevy C10

2-Piece Rear Main Chevy 283

1968-1973 Chevy C10

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C10

2-Piece Rear Main Chevy 400

1960-1967 Chevy C10 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy C10 Suburban

Gen 1 L14 Small Block Chevy

1960-1967 Chevy C20

2-Piece Rear Main Chevy 283

1968-1973 Chevy C20

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C20

2-Piece Rear Main Chevy 400

1960-1967 Chevy C20 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy C20 Suburban

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C20 Suburban

2-Piece Rear Main Chevy 400

1960-1967 Chevy C30

2-Piece Rear Main Chevy 283

1968-1973 Chevy C30

Gen 1 L14 Small Block Chevy

1976-1979 Chevy C30

2-Piece Rear Main Chevy 400

1967-1968 Chevy Camaro

Gen 1 DZ Small Block Chevy

1969 Chevy Camaro

Gen 1 DZ Small Block Chevy
Gen 1 L14 Small Block Chevy

1970-1973 Chevy Camaro

Gen 1 L14 Small Block Chevy

1980-1981 Chevy Camaro

2-Piece Rear Main Chevy 267

1966-1967 Chevy Caprice

2-Piece Rear Main Chevy 283

1968-1969 Chevy Caprice

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Caprice

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Caprice

2-Piece Rear Main Chevy 400

1980-1982 Chevy Caprice

2-Piece Rear Main Chevy 267

1964-1967 Chevy Chevelle

2-Piece Rear Main Chevy 283

1968-1969 Chevy Chevelle

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Chevelle

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1963-1967 Chevy Chevy II

2-Piece Rear Main Chevy 283

1968 Chevy Chevy II

Gen 1 L14 Small Block Chevy

1957-1961 Chevy Corvette

2-Piece Rear Main Chevy 283

1957-1958 Chevy Del Ray

2-Piece Rear Main Chevy 283

1959-1960 Chevy El Camino

2-Piece Rear Main Chevy 283

1964-1967 Chevy El Camino

2-Piece Rear Main Chevy 283

1968-1969 Chevy El Camino

Gen 1 L14 Small Block Chevy

1970-1973 Chevy El Camino

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy El Camino

2-Piece Rear Main Chevy 400

1979-1982 Chevy El Camino

2-Piece Rear Main Chevy 267

1969 Chevy Estate

Gen 1 L14 Small Block Chevy

1970 Chevy Estate

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1976 Chevy G10

2-Piece Rear Main Chevy 400

1968-1973 Chevy G10 Van

Gen 1 L14 Small Block Chevy

1975-1980 Chevy G20

2-Piece Rear Main Chevy 400

1967 Chevy G20 Van

2-Piece Rear Main Chevy 283

1968-1973 Chevy G20 Van

Gen 1 L14 Small Block Chevy

1975-1980 Chevy G30

2-Piece Rear Main Chevy 400

1958-1967 Chevy Impala

2-Piece Rear Main Chevy 283

1968-1969 Chevy Impala

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Impala

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Impala

2-Piece Rear Main Chevy 400

1980-1982 Chevy Impala

2-Piece Rear Main Chevy 267

1960-1967 Chevy K10

2-Piece Rear Main Chevy 283

1968-1973 Chevy K10

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K10

2-Piece Rear Main Chevy 400

1960-1967 Chevy K10 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy K10 Suburban

Gen 1 L14 Small Block Chevy

1975-1979 Chevy K10 Suburban

2-Piece Rear Main Chevy 400

1960-1967 Chevy K20

2-Piece Rear Main Chevy 283

1968-1973 Chevy K20

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K20

2-Piece Rear Main Chevy 400

1967 Chevy K20 Panel

2-Piece Rear Main Chevy 283

1960-1967 Chevy K20 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy K20 Suburban

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K20 Suburban

2-Piece Rear Main Chevy 400

1968-1973 Chevy K30

Gen 1 L14 Small Block Chevy

1977-1980 Chevy K30

2-Piece Rear Main Chevy 400

1975-1979 Chevy K5 Blazer

2-Piece Rear Main Chevy 400

1959-1961 Chevy Kingswood

2-Piece Rear Main Chevy 283

1969 Chevy Kingswood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Kingswood

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1973 Chevy Laguna

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Laguna

2-Piece Rear Main Chevy 400

1964-1967 Chevy Malibu

2-Piece Rear Main Chevy 283

1973 Chevy Malibu

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Malibu

2-Piece Rear Main Chevy 400

1979-1982 Chevy Malibu

2-Piece Rear Main Chevy 267

1970-1976 Chevy Monte Carlo

2-Piece Rear Main Chevy 400

1979-1982 Chevy Monte Carlo

2-Piece Rear Main Chevy 267

1975-1976 Chevy Monza

2-Piece Rear Main Chevy 262

1957-1961 Chevy Nomad

2-Piece Rear Main Chevy 283

1969-1973 Chevy Nova

Gen 1 L14 Small Block Chevy

1975 Chevy Nova

2-Piece Rear Main Chevy 262

1957 Chevy One-Fifty Series

2-Piece Rear Main Chevy 283

1976 Chevy P30

2-Piece Rear Main Chevy 400

1961-1962 Chevy P30 Series

2-Piece Rear Main Chevy 283

1968-1969 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1973 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1959-1961 Chevy Parkwood

2-Piece Rear Main Chevy 283

1957-1958 Chevy Sedan Delivery

2-Piece Rear Main Chevy 283

1960-1967 Chevy Suburban

2-Piece Rear Main Chevy 283

1969 Chevy Townsman

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Townsman

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1957-1958 Chevy Truck

2-Piece Rear Main Chevy 283

1960 Chevy Truck

2-Piece Rear Main Chevy 283

1957 Chevy Two-Ten Series

2-Piece Rear Main Chevy 283

1958 Chevy Yeoman

2-Piece Rear Main Chevy 283

1966 GMC 1000

2-Piece Rear Main Chevy 283

1960 GMC 1000 Series

2-Piece Rear Main Chevy 283

1962-1965 GMC 1000 Series

2-Piece Rear Main Chevy 283

1960-1965 GMC 1500 Series

2-Piece Rear Main Chevy 283

1966 GMC 2500

2-Piece Rear Main Chevy 283

1960-1965 GMC 2500 Series

2-Piece Rear Main Chevy 283

1960-1966 GMC 3000

2-Piece Rear Main Chevy 283

1960-1966 GMC 3500

2-Piece Rear Main Chevy 283

1967 GMC C25/C2500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC C25/C2500 Pickup

Gen 1 L14 Small Block Chevy

1967 GMC C25/C2500 Suburban

2-Piece Rear Main Chevy 283

1968-1972 GMC C25/C2500 Suburban

Gen 1 L14 Small Block Chevy

1967 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC C35/C3500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 400

1975-1978 GMC K15

2-Piece Rear Main Chevy 400

1975-1978 GMC K15 Suburban

2-Piece Rear Main Chevy 400

1967-1974 GMC K15/K1500 Pickup

2-Piece Rear Main Chevy 400

1967-1974 GMC K15/K1500 Suburban

2-Piece Rear Main Chevy 400

1979-1980 GMC K1500 Suburban

2-Piece Rear Main Chevy 400

1975-1978 GMC K25

2-Piece Rear Main Chevy 400

1975-1978 GMC K25 Suburban

2-Piece Rear Main Chevy 400

1967 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC K25/K2500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 400

1967 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 283

1968-1972 GMC K25/K2500 Suburban

Gen 1 L14 Small Block Chevy

1973-1974 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 400

1979-1986 GMC K2500 Suburban

2-Piece Rear Main Chevy 400

1967 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC K35/K3500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 400

1966 GMC P1000

2-Piece Rear Main Chevy 283

1973-1977 GMC Sprint

2-Piece Rear Main Chevy 400

1955-1966 GMC Suburban

2-Piece Rear Main Chevy 283

1967 GMC Suburban

Gen 1 L14 Small Block Chevy

1956-1960 GMC Truck

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Commander

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Cruiser

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Daytona

2-Piece Rear Main Chevy 283

1966 Studebaker Wagonaire

2-Piece Rear Main Chevy 283
