Product Summary

290, 304, 327, 343, 360, 390, 401, 2500-6500 RPM Range

    Key Specs

    Camshaft TypeHydraulic Flat Tappet
    RPM Range2500-6500
    Intake Duration (.050" Lift)244
    Exhaust Duration (.050" Lift)244
    Lobe Separation110 °

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    COMP Cams 10-210-4 Details

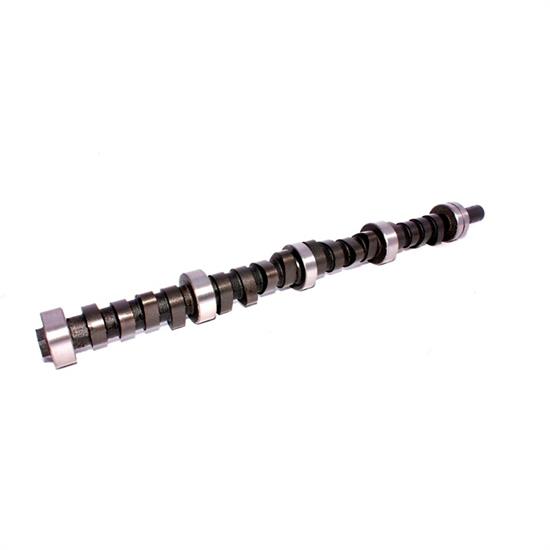

    COMP Cams Magnum 292H-10 Hydraulic Camshaft for AMC V8.

    AMC 290-401 c.i. 8 CYL. 1966-1991. Hydraulic-Street / Strip cam for 360and up. Use 10:1 compression with 3000+converter and low gears. Very rough idle. Magnum Hydraulic Flat Tappet Camshafts. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

    • Great high RPM power
    • Easy on valve train parts
    • Can be used with mild ratio rocker arms & traditional performance valve springs
    • Best with aftermarket converter & 9.5:1+ compression

    Application

    1966-79 AMC 290-401
    1972-91 Jeep 304-401

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    COMP Cams 10-210-4 Specifications

    KEY SPECS
    MFG. Part #10-210-4
    BrandCOMP Cams
    Camshaft TypeHydraulic Flat Tappet
    RPM Range2500-6500
    Intake Duration (.050" Lift)244
    Exhaust Duration (.050" Lift)244
    Lobe Separation110 °
    GENERAL
    Intake Valve Lift w/ Rocker Arm Ratio0.518"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.518"
    Intake Duration292
    Exhaust Duration292
    Sold in QuantityEach
    Grind NumberA 292H-10
    GTIN Code036584610014
    External Ignition Box RequiredNo
    Valve Springs RequiredYes
