#91533347

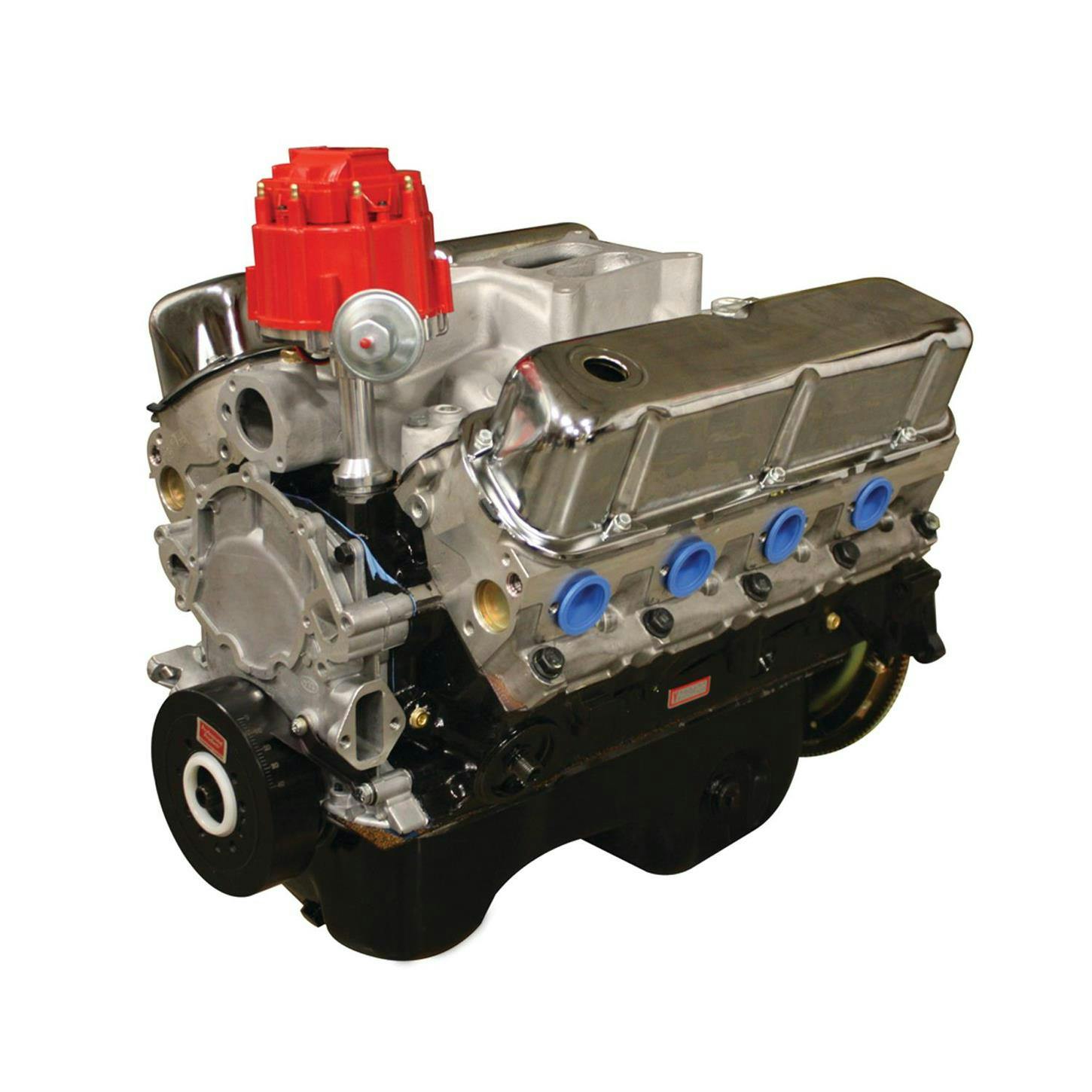

BluePrint Roller 347 Ford Engine
- Puts out an astonishing 415 hp and 400 torque
- Features all-aluminum, 58cc chamber cylinder heads
- Rotating assembly is fully balanced and has 10 to 1 compression
Out of Stock
This item is currently not available
Shop all BluePrint Ford Crate Engines
Product Summary
347, Deluxe Crate Engine Crate Engine Type
- Puts out an astonishing 415 hp and 400 torque
- Features all-aluminum, 58cc chamber cylinder heads
- Rotating assembly is fully balanced and has 10 to 1 compression
- Includes a hand picked seasoned 1986-1995 blocks bored .040 over
- Comes with a new cast steel crankshaft with 3.400 stroke and new rods with 150,000 psi bolts
Key Specs
| Crate Engine Type | Deluxe Crate Engine |
| Engine Displacement | 347 cu. in. |
| Horsepower | 415 horsepower |
| Torque | 400 ft./lbs. |
| Camshaft Type | Hydraulic Roller Tappet |
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBluePrint Engines 91533347 Details
BluePrint Engines 91533347 Details
- 415 hp and 400 torque
- Hand picked seasoned 1986-1995 blocks bored .040 over
- Square and parallel decked
- Align honed main bearing bore
- Cylinders honed on computer controlled machine to within .0002
- Cylinders are sonic tested for thickness
- New cast steel crankshaft with 3.400 stroke
- New rods with 150,000 psi bolts
- Hypereutectic pistons
- 10 to 1 compression
- Balanced rotating assembly
- Hydraulic roller camshaft
- .543 Intake / .554 exhaust & 218 intake / 226 exhaust duration @ .050 - 112 degree lobe separation
- Heavy duty double roller timing set
- Aluminum, 58cc chamber cylinder heads
- Valve covers
- New HEI distributor
- Painted oil pan
- Brass freeze plugs
Crate Engine Installation Guide
Truck Freight Shipping Charges Apply - click here for details.
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
BluePrint Engines 91533347 Specifications
BluePrint Engines 91533347 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91533347 |
| Brand | BluePrint Engines |
| Crate Engine Type | Deluxe Crate Engine |
| Engine Displacement | 347 cu. in. |
| Horsepower | 415 horsepower |
| Torque | 400 ft./lbs. |
| Camshaft Type | Hydraulic Roller Tappet |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Cast Steel |
| Camshaft Duration (.050 in) | 218° intake / 226° exhaust |
| Camshaft Lift (in) | .543 intake / .554 exhaust |
| Intake Manifold Included | Yes |
| Engine Balance | External |
| Rear Main Seal Style | 1-piece |
| Imbalance | 28 oz. |
| GENERAL | |
| Maximum RPM | 5900 |
| Warranty | 30 month/50,000 mile |
| Assembled | Yes |
| Camshaft Included | Yes |
| Block | Hand picked, seasoned block bored .040 over |
