BluePrint PS5401CT Chevy 540 Pro Series, Base Engine, Alum Heads

$275 Shipping

#227PS5401CT

BluePrint PS5401CT Chevy 540 Pro Series, Base Engine, Alum Heads

Name: BluePrint PS5401CT Chevy 540 Pro Series, Base Engine, Alum Heads
Brand: BluePrint Engines
SKU: 227PS5401CT
Price: 13299 USD
Availability: InStock

Write a Review

2 Questions

$13,299.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Long Block Crate Engine Type, 10.0:1 Compression Ratio

See more details

Key Specs

Crate Engine Type	Long Block
Compression Ratio	10.0:1
Engine Displacement	540 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines PS5401CT Details

True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

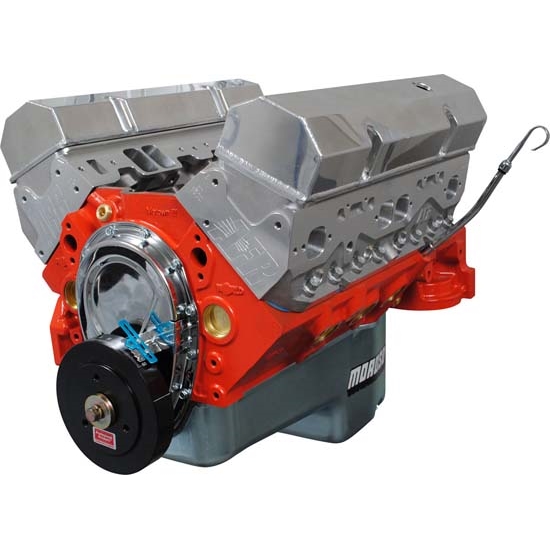

Chevy 540 Pro Series Stroker - Big Block GM Style Longblock Engine - Aluminum Heads - Roller Cam

Overview

HP & Torque: 670 HP / 660 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Forged Pistons
Roller Cam
Forged Crank
Part #: PS5401CT

Block

BluePrint Engines new block casting - 9.8 Standard deck height
4 bolt main
4.500" bore

Rotating Assembly

4340 forged crank
4.250" stroke
4340 forged rods
Forged pistons
Hastings piston rings
Hydraulic roller cam

Cylinder Heads

BluePrint Aluminum, 119cc chamber
Comp cam pushrods
Comp cam rocker arms
Melling oil pump

Cam Specs

Cam Type: Roller
.647 Intake .647 Exhaust
248 Intake / 254 Exhaust duration
@ .050 - 112 degree lobe separation

Also Includes

Valve covers, oil pan and timing cover
Harmonic balancer

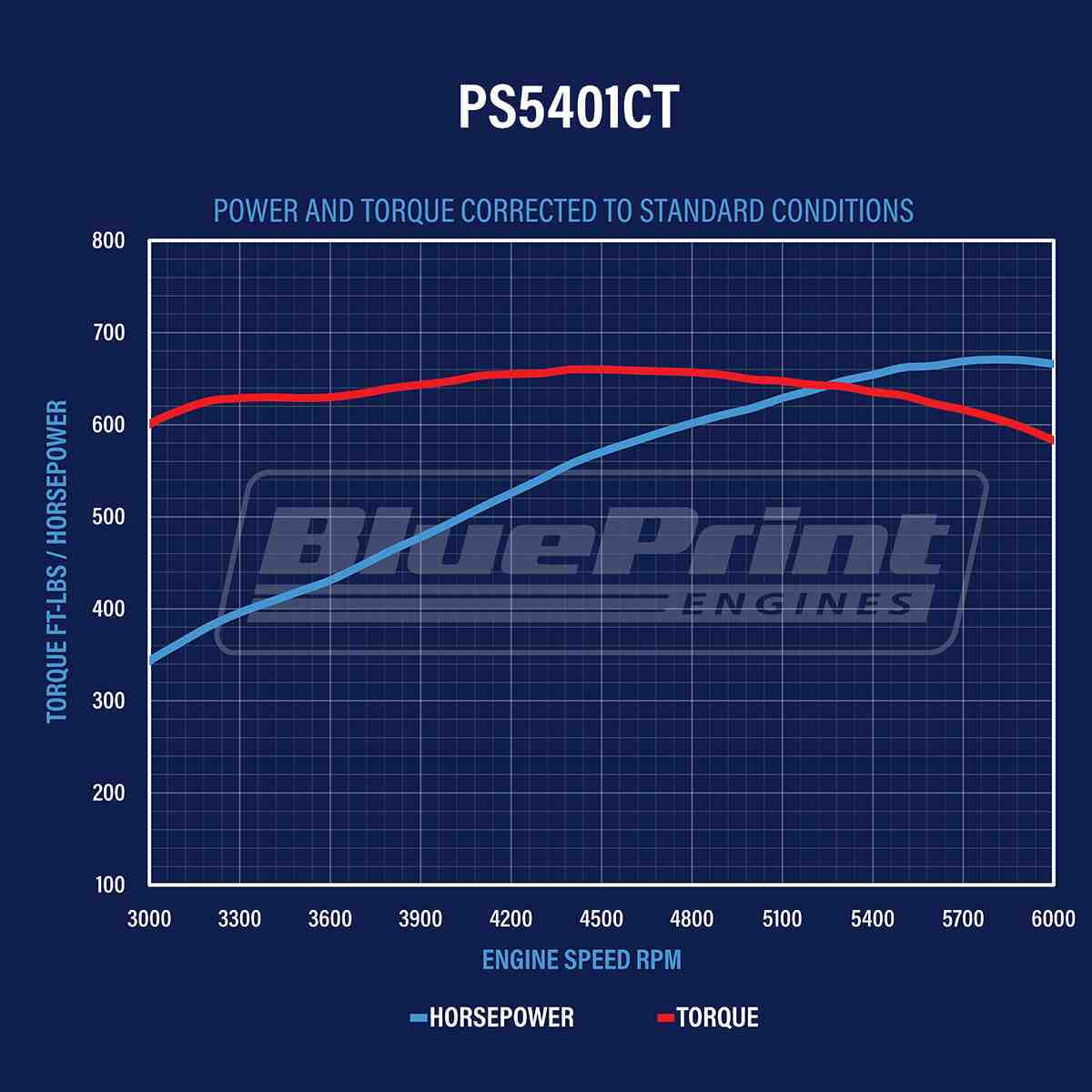

Dyno test results shipped with engine

Guides & Documents

Crate Engines Installation Instructions (227PS5401CT)

Crate Engines Technical Information (227PS5401CT)

Warranty Information

Warranty Information (PDF)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

BluePrint Engines PS5401CT Specifications

KEY SPECS
MFG. Part #	PS5401CT
Brand	BluePrint Engines
Crate Engine Type	Long Block
Compression Ratio	10.0:1
Engine Displacement	540 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Forged Aluminum
Crankshaft Material	Forged 4340 Steel
Carburetor Included	No
Intake Manifold Included	No
Distributor Included	No
Connecting Rod Material	Forged 4340 Steel
Valve Covers Included	Yes
Engine Balance	Internal
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	No
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	No
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	No
Spark Plug Wires Included	No
Computer Included	No
Wiring Harness Included	No

GENERAL
Torque	660 ft./lbs.
Horsepower	670 horsepower
Combustion Chamber Volume	119cc
Camshaft Duration (.050 in)	248° intake / 254° exhaust
Camshaft Lift (in)	.647 intake / .647 exhaust
Bore x Stroke (in)	4.50" x 4.25"
Warranty	30 month / 50,000 miles
Assembled	Yes
Camshaft Included	Yes
Cylinder Heads	BluePrint Aluminum 119cc
Block	New cast block, 4 bolt main
Notes	New BluePrint block manufactured and machined in the USA. Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR
