BluePrint MBP3830CTC GM 383 Base Marine Engine, Cast Iron Vortec Heads

Ships FREE!

#227MBP3830CTC

BluePrint MBP3830CTC GM 383 Base Marine Engine, Cast Iron Vortec Heads

Name: BluePrint MBP3830CTC GM 383 Base Marine Engine, Cast Iron Vortec Heads
Brand: BluePrint Engines
SKU: 227MBP3830CTC
Price: 8799 USD
Availability: InStock

Write a Review

1 Question

$8,799.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, Long Block Crate Engine Type

See more details

Key Specs

Crate Engine Type	Long Block
Compression Ratio	9.5:1
Engine Displacement	383 cu. in.
Camshaft Type	Hydraulic Roller Tappet
Cylinder Head Material	Cast Iron

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines MBP3830CTC Details

True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

GM 383 Base Marine Engine - Cast Iron Vortec Heads - Roller Cam

Overview

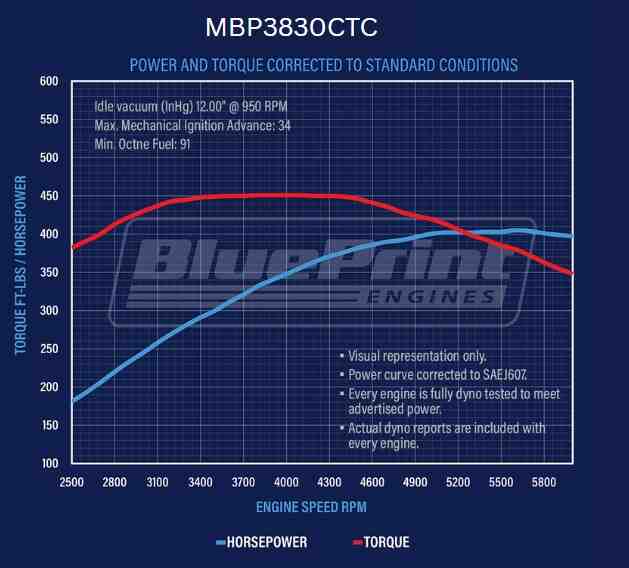

HP & Torque: 405 HP / 450 FT LBS
Cast Iron Heads
Roller Cam
Cast Steel Crank
Part #: MBP3830CTC

Block

Seasoned 4-bolt main
Max .040 bore
One piece rear main seal
Sonic tested to assure wall thickness
Align honed main bearing bore

Rotating Assembly

New cast steel premium crank
Hypereutectic pistons
New roller camshaft

Cylinder Heads

Cast Iron Vortec
1.25 dia. valve springs, hardened retainers and keepers
1.940 swirl polished intake valves
1.500 swirl polished exhaust valves
Elgin hardened push rods
Long slot rockers with positive lock adjusting nuts

Cam Specs

Cam Type: Roller
.495 Intake .503 Exhaust
220 Intake / 224 Exhaust duration
@ .050 - 112 degree lobe separation

Also Includes

New cast iron marine intake
Fuel Pump
Fuel line and filter
Cast iron circulating pump
750cfm carburetor
Harmonic balancer
Distributor
Spark plugs
BluePrint plug wires
Polished aluminum valve covers
Rubber coated steel oil pan
Brass freeze plugs
Dyno test results shipped with engine

Warranty

12 month unlimited hour on pleasurecraft only. No warranty on commercial use.

Guides & Documents

Crate Engines Technical Information (227MBP3830CTC)

Warranty Information

Click for details

Warranty Information (PDF)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA Prop 65

CARB warning

BluePrint Engines MBP3830CTC Specifications

KEY SPECS
MFG. Part #	MBP3830CTC
Brand	BluePrint Engines
Crate Engine Type	Long Block
Compression Ratio	9.5:1
Engine Displacement	383 cu. in.
Camshaft Type	Hydraulic Roller Tappet
Cylinder Head Material	Cast Iron
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Cast Steel
Carburetor Included	No
Intake Manifold Included	Yes
Distributor Included	No
Valve Covers Included	Yes
Engine Balance	Internal
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	Yes
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	No
Wiring Harness Included	Yes

GENERAL
Torque	450 ft./lbs.
Horsepower	405 horsepower
Camshaft Duration (.050 in)	220° intake / 224 ° exhaust
Camshaft Lift (in)	.528 intake / .536 exhaust
Bore x Stroke (in)	4.040" x 3.750"
Warranty	12 month parts and labor, pleasurecraft only
Assembled	Yes
Camshaft Included	Yes
Cylinder Heads	Cast iron Vortec
Block	4 bolt main
Notes	Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR
