BluePrint HP9009 Muscle Series 190cc SB Ford Head, Assembled

#227HP9009

BluePrint HP9009 Muscle Series 190cc SB Ford Head, Assembled

Name: BluePrint HP9009 Muscle Series 190cc SB Ford Head, Assembled
Brand: BluePrint Engines
SKU: 227HP9009
Price: 849 USD
Availability: InStock
Rating: 5 (3 reviews)

3 Reviews

5 Questions

Come backed by our full 12-month limited warranty
Has a lightweight, yet durable aluminum head construction
These lightweight aluminum heads are designed to bolt right up to your small block Ford

Combustion Chamber:

64 cc

60 cc

$849.00

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Assembled Cylinder Head Style, Aluminum, Natural

Come backed by our full 12-month limited warranty
Has a lightweight, yet durable aluminum head construction
These lightweight aluminum heads are designed to bolt right up to your small block Ford
They come fully assembled with valve springs, retainers, locks, guide plates, studs, and seals
Features 190cc intake/60cc exhaust runners, 64cc combustion chambers, and 2.02" intake/1.60" exhaust valves

See more details

Key Specs

Cylinder Head Style	Assembled
Material Type	Aluminum
Finish	Natural
Combustion Chamber Volume	60cc
Intake Runner Volume	190cc

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines HP9009 Details

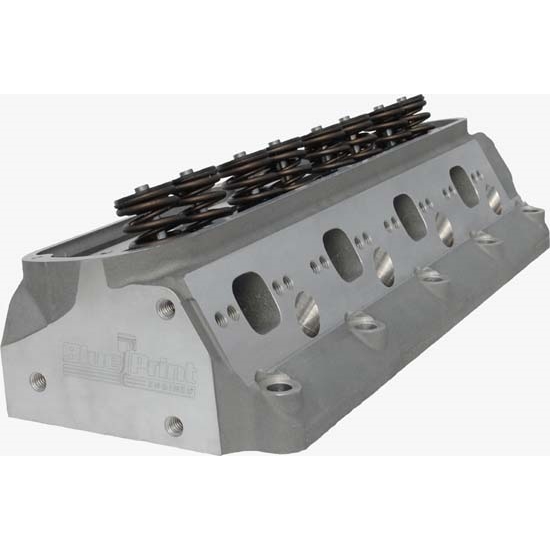

Get big power on a small budget with BluePrint Muscle Series cylinder heads! These lightweight aluminum heads bolt up to your small block Ford and feature 190cc intake/60cc exhaust runners, 64cc combustion chambers, and 2.02" intake/1.60" exhaust valves. They're fully assembled with valve springs, retainers, locks, guideplates, studs, and seals.

Maximum output for less money!
Designed and produced by BluePrint Engines
Fully assembled with heavy duty components
Backed by our full 12-month limited warranty
Stud Mount

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

BluePrint Engines HP9009 Specifications

KEY SPECS
MFG. Part #	HP9009
Brand	BluePrint Engines
Cylinder Head Style	Assembled
Material Type	Aluminum
Finish	Natural
Combustion Chamber Volume	60cc
Intake Runner Volume	190cc

GENERAL
Exhaust Runner Volume	65cc
Combustion Chamber Volume Range	60cc - 69cc
Intake Runner Volume Range	190cc - 199cc
Exhaust Runner Volume Range	60cc - 69cc
CNC-Machined Runners	No
CNC-Machined Combustion Chamber	No
Intake Port Location	Standard
Exhaust Port Shape	Square
Exhaust Port Location	Standard
Intake Valve Diameter	2.02"
Intake Valves Included	Yes
Exhaust Valve Diameter	1.6"
Exhaust Valves Included	Yes
Valve Spring Included	Yes
Spring Diameter	1.44"
Damper Spring Included	Yes
Number of Springs Per Valve	Dual
Maximum Lift	0.575"
Machined for O-Ring	No
Valve Seat Machine Style	5-Angle
Valve Seats Machined	Yes
Valve Seat Material	Chrome Nickel
Valve Stem Seals Included	Yes
Valve Guides Included	Yes
Valve Guide Material	Manganese Bronze
Locks Included	Yes
Lock Style	7 Degree
Retainers Included	Yes
Retainer Material	Chromoly Steel
Guideplates Included	Yes
Rocker Arms Included	No
Rocker Arm Studs Included	Yes
Rocker Arm Nuts Included	No
Oiling Style	Through Pushrod
Heat Crossover	No
Steam Holes Drilled	No
Accessory Bolt Holes Drilled	Yes
Notes	Stud mount
Sold in Quantity	Each

Ratings & Reviews

3 Reviews

Overall Assessment

Customers appreciate the aesthetic and perceived quality of our product, even prior to installation. Its compatibility with roller motors and further enhancement with roller rockers, pushrods, and a roller mild cam has been recognized. The high-quality casting garnered positive feedback, with customers noting that a touch-up on the ports can further optimize the product. Users are generally satisfied with our product's promising features compared to competition, despite having not installed it yet.

Write A Review

3 reviews

Filter by Ratings

Sort Reviews

Nice castings

5.0

4 months ago

36 Marty

Eatonville WA

Verified

Very good quality heads. You can bolt them on out of the box. I plan to take them apart and do very minor cleanup and port match.

Would Recommend

Yes, definitely.

5.0

a year ago

Denny

San Tan. Valley az

Verified

They look great. Didn't install yet. I still need to get roller rockers, pushrods, and a roller mild cam to match the heads, specs. I recievd from your company. I decided to go roller instead of flat tappet. It's a roller motor. 1991 sbf 302.

Would Recommend

Good quality

5.0

7 years ago

Mike

Elizabeth, WV

Verified

I have yet to install these, but they seem to be high quality castings. Some touch up work on the ports will help but overall I'm pretty happy with these.

Would Recommend

Showing 3 of 3 reviews

Questions & Answers

5 Questions • 5 Answers

Sort Questions

Are the valve springs set up for a flat tappet or a roller cam?

by jfriend

• 7 years ago

1 answer

View Answer

I have stock 1968 sbf . Do these heads require special piston reliefs for the 202 intake valve?

by Flathead

• 8 years ago

1 answer

View Answer

Can you get these for a 400 ford engine and if so what the price

by Earl

• 8 years ago

1 answer

View Answer

What size are the rocker studs?

by Sdp12216

• 8 years ago

1 answer

View Answer

do these heads come with guide plates? details says they come fully assembled with guide plates but the specs say guide plates no included.

by Edgar

• 10 years ago

1 answer

View Answer

5 of 5 questions shown

Fitment

1964 AC Shelby Cobra

Ford 289

1968-1973 AC Shelby Cobra

Ford 289

1967 DeTomaso Mangusta

Ford 289

1963 Ford 300

Ford 289

1966-1968 Ford Bronco

Ford 289

1985-1996 Ford Bronco

5.0L Ford Small Block Windsor

1963-1967 Ford Club Wagon

Ford 289

1963-1968 Ford Country Sedan

Ford 289

1963-1968 Ford Country Squire

Ford 289

1987-1991 Ford Country Squire

5.0L Ford Small Block Windsor

1964-1968 Ford Custom

Ford 289

1964-1968 Ford Custom 500

Ford 289

1985-1996 Ford E-150 Econoline

5.0L Ford Small Block Windsor

1985-1996 Ford E-150 Econoline Club Wagon

5.0L Ford Small Block Windsor

1985-1991 Ford E-250 Econoline

5.0L Ford Small Block Windsor

1996-2001 Ford Explorer

5.0L Ford Small Block Windsor

1985-1996 Ford F-150

5.0L Ford Small Block Windsor

1985-1997 Ford F-250

5.0L Ford Small Block Windsor

1995-1997 Ford F-350

5.0L Ford Small Block Windsor

1963-1968 Ford Fairlane

Ford 289

1964-1968 Ford Falcon

Ford 289

1964-1965 Ford Falcon Sedan Delivery

Ford 289

1963 Ford Ford 300

Ford 289

1963-1967 Ford Galaxie

Ford 289

1963-1967 Ford Galaxie 500

Ford 289

1964-1969 Ford GT40

Ford 289

1965-1968 Ford LTD

Ford 289

1985-1986 Ford LTD

5.0L Ford Small Block Windsor

1987-1991 Ford LTD Crown Victoria

5.0L Ford Small Block Windsor

1964-1968 Ford Mustang

Ford 289

1983-1995 Ford Mustang

5.0L Ford Small Block Windsor

1963-1968 Ford Ranch Wagon

Ford 289

1960-1961 Ford Ranchero

Ford 289

1965-1968 Ford Ranchero

Ford 289

1964 Ford Sprint

Ford 289

1985-1988 Ford Thunderbird

5.0L Ford Small Block Windsor

1991-1993 Ford Thunderbird

5.0L Ford Small Block Windsor

1968 Ford Torino

Ford 289

1985-1987 Lincoln Continental

5.0L Ford Small Block Windsor

1985-1992 Lincoln Mark VII

5.0L Ford Small Block Windsor

1985-1990 Lincoln Town Car

5.0L Ford Small Block Windsor

1964-1967 Mercury Caliente

Ford 289

1966-1967 Mercury Capri

Ford 289

1985-1986 Mercury Capri

5.0L Ford Small Block Windsor

1987-1991 Mercury Colony Park

5.0L Ford Small Block Windsor

1964-1968 Mercury Comet

Ford 289

1967 Mercury Commuter

Ford 289

1967-1968 Mercury Cougar

Ford 289

1985-1988 Mercury Cougar

5.0L Ford Small Block Windsor

1991-1993 Mercury Cougar

5.0L Ford Small Block Windsor

1963 Mercury Country Cruiser

Ford 289

1964-1968 Mercury Cyclone

Ford 289

1985-1991 Mercury Grand Marquis

5.0L Ford Small Block Windsor

1985 Mercury Marquis

5.0L Ford Small Block Windsor

1963 Mercury Meteor

Ford 289

1968 Mercury Montego

Ford 289

1997-2001 Mercury Mountaineer

5.0L Ford Small Block Windsor

1964-1967 Mercury Villager

Ford 289

1966-1967 Mercury Voyager

Ford 289

1963-1968 Shelby Cobra

Ford 289
