$895.99

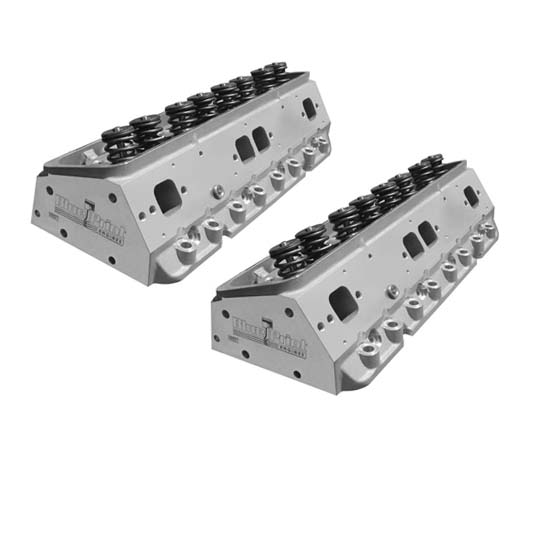

BluePrint H8002K Muscle Series 195cc SB Chevy Heads, Assembled
BluePrint H8002K Muscle Series 195cc SB Chevy Heads, Assembled

BluePrint H8002K Muscle Series 195cc SB Chevy Heads, Assembled

0 Reviews | 3 Answered Questions
In Stock
Ships FREE
BluePrint H8002K Muscle Series 195cc SB Chevy Heads, Assembled
BluePrint H8002K Muscle Series 195cc SB Chevy Heads, Assembled
Zoomed In Image
Part # 227H8002K
$895.99
pair
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
What's In The Kit
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Cylinder Head Style:
Assembled
Material Type:
Aluminum
Combustion Chamber:
64cc
Intake Runners:
195cc
Exhaust Runners:
75cc
Intake Valve Diameter:
2.02"
Exhaust Valve Diameter:
1.6"
Spark Plug Style:
Straight
Finish:
Natural
Sold in Quantity:
Pair
MFG. Part #:
H8002K
CNC-Machined Combustion Chamber:
No
CNC- Machined Intake Runner:
No
CNC-Machined Exhause Runner:
No
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Exhaust Port Shape:
Square
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Valve Spring Included:
Yes
Maximum Lift:
0.575"
Outside Diameter of Outer Spring:
1.437"
Damper Spring Included:
Yes
Number of Springs Per Valve:
Dual
Retainers Included:
Yes
Retainer Material:
Chromoly Steel
Locks Included:
Yes
Lock Style:
7 Degree
Rocker Arm Studs Included:
Yes
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Chrome Nickel
Steam Holes Drilled:
No
Oiling Style:
Through Pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Valve Stem Seals Included:
Yes
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes

Info

Get big power on a small budget with BluePrint Muscle Series cylinder heads! These lightweight aluminum heads bolt up to your small block Chevy and feature 195cc intake/75cc exhaust runners, 64cc combustion chambers, and 2.02" intake/1.60" exhaust valves. They're fully assembled with valve springs, retainers, locks, guideplates, studs, and seals.
  • Maximum output for less money!
  • Designed and produced by BluePrint Engines
  • Fully assembled with heavy duty components
  • Backed by our full 12-month limited warranty

Features

Intake

195cc Intake Runner Volume
2.020" Premium Stainless Steel Intake Valves Feature A Swirl Polished Undercut Stem

CFM Port Flow Average @ 28"

.100" - 83
.200" - 150
.300" - 190
.400" - 223
.500" - 252
.600" - 245



Exhaust

75cc Exhaust Runner Volume
1.600" Premium Stainless Steel Exhaust Valves Feature A Swirl Polished Undercut Stem

CFM Port Flow Average @ 28"
.100" - 83
.200" - 130
.300" - 166
.400" - 193
.500" - 207
.600" - 213

Combustion Chamber

64cc Combustion Chamber Volume

Valve Specs

.575" Maximum Valve Lift
23 Degree Intake Valve Angle
23 Degree Exhaust Valve Angle
Manganese Bronze Valve Guides
3-Angle Valve Job
Chrome Nickel Valve Seats For Unleaded Fuels
Viton® Fluoroelastomer Valve Stem Seals

Springs

Spring Pressure Open: 295-305 @ 1.225
Spring Pressure Closed: 115-125 @ 1.800
Outside Diameter of Outer Spring (in): 1.437 in.
Dual Valve Springs
Chromemoly Retainers
7 Degree Valve Locks

Rocker Arms

3/8" Rocker Arm Studs Included Along With Guide Plates For 5/16" Pushrods

Misc.

Will Accept Either An Early 12 Bolt Intake Manifold Or Late "Vortec" 8 Bolt Manifold

Straight Spark Plug Holes Use A .750" Reach Gasket Style Plug

Perimeter or Center Bolt Valve Cover Bolt Holes

Accessory Bolt Holes Machined On Ends Of Heads

Qty.

Sold in pairs

Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • BluePrint Engines H8002S Muscle Series Small Block Chevy Aluminum Head
    Qty x 2
