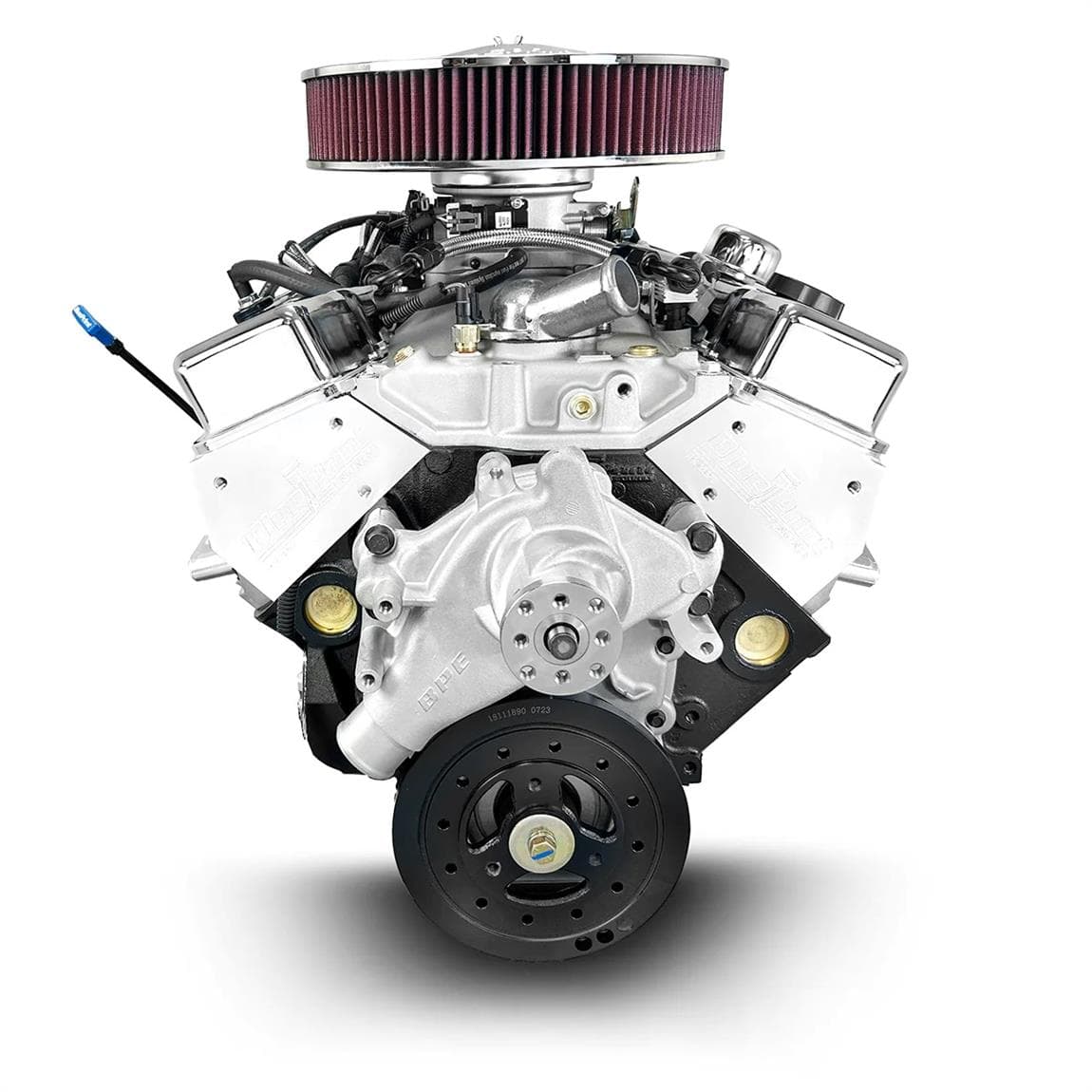

BluePrint Engines BP38318MPFID S/B Chevy 383 Dressed Crate Engine

Ships FREE!

#227BP38318MPFID

BluePrint Engines BP38318MPFID S/B Chevy 383 Dressed Crate Engine

436 Horsepower / 443 FT. LBS. Torque
Compression Ratio: 10.0:1
Aluminum Heads

Pulley Finish:

No Pulley Kit

$8,299.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Deluxe Crate Engine Crate Engine Type, Oil Pan Included

436 Horsepower / 443 FT. LBS. Torque
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank, Hypereutectic Pistons

See more details

Key Specs

Crate Engine Type	Deluxe Crate Engine
Engine Displacement	6.3 liters
Horsepower	436 horsepower
Compression Ratio	10.0:1
Torque	443 ft./lbs.

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines BP38318MPFID Details

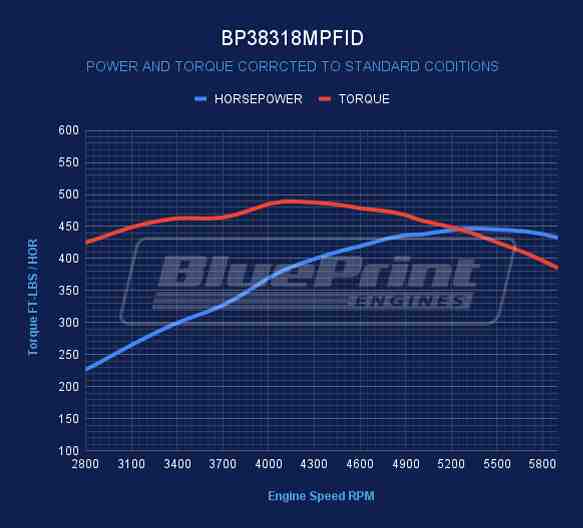

The BluePrint 383 Small Block Chevy compatible performance crate engines are dyno tested at our factory with guaranteed power levels of 436 horsepower and 443 ft. lbs. of torque. The BluePrint designed, multi-port fuel injection system, complete with ECU and full Wiring Harness, has had extensive calibration and development work in creating this specifically tuned and optimized engine that goes well beyond the performance of self-learn EFI systems on the market today. This BluePrint ECU is designed for hassle-free start up and operation. The ECU controls ignition timing and fuel and installs with 3 simple wired connections (Main Battery, Switched 12V Ignition Wire and Fuel Pump).

DESCRIPTION:

Engine manufactured and machined in the USA!

Horsepower & Torque: 436 Horsepower / 443 FT. LBS. Torque

Cylinder Heads: BluePrint Performance Aluminum Heads (Part# H8002K)

Compression Ratio: 10.0:1

BLOCK:

BluePrint Engines High Strength Cast Iron Block

Manufactured and Machined in the USA!

4-Bolt Main

4.000" Bore

1-Piece Rear Main Seal

Drilled and Tapped for Clutch Linkage

ROTATING ASSEMBLY:

New BluePrint Cast Steel Crankshaft

3.750" Stroke

5.700" Connecting Rods

Hypereutectic Pistons

Externally Balanced Front and Rear

CYLINDER HEADS:

BluePrint Performance Aluminum Heads (Part# H8002K)

64cc Chamber

2.020" Intake Valves / 1.600" Exhaust Valves

CAM SPECS:

Cam Type: Hydraulic Roller

.544 Intake / .555 Exhaust Lift

230 Intake / 236 Exhaust Duration

@ .050-110 Degree Lobe Separation

IGNITION TIMING:

Initial Timing-Computer Controlled by BluePrint ECU

ALSO INCLUDES:

Polished Chrome BluePrint Air Cleaner

BluePrint Multi-Port Fuel Injection and Self-Learning Electronic Control Unit (ECU)

Distributor

Harmonic Balancer

Single Plane Machined Aluminum Intake Manifold

Oil Pan

Timing Cover

Polished Chrome Valve Covers

Satin Aluminum Water Pump

Spark Plugs and Wires

Guides & Documents

Crate Engines Installation Instructions (227BP38318MPFID)

Crate Engines Technical Information (227BP38318MPFID)

Warranty Information

Click for details

Warranty Information (PDF)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA Prop 65

CARB warning

BluePrint Engines BP38318MPFID Specifications

KEY SPECS
MFG. Part #	BP38318MPFID
Brand	BluePrint Engines
Crate Engine Type	Deluxe Crate Engine
Engine Displacement	6.3 liters
Horsepower	436 horsepower
Compression Ratio	10.0:1
Torque	443 ft./lbs.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Cast Steel
Bore x Stroke (in)	4.000" x 3.750"
Carburetor Included	No
Intake Manifold Included	Yes
Distributor Included	Yes
Connecting Rod Material	Heavy Beam
Valve Covers Included	Yes
Engine Balance	External
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	Yes
Oil Pan Included	Yes
Timing Cover Included	Yes
Water Pump Included	No
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	Yes
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	Yes
Wiring Harness Included	Yes

GENERAL
Sold in Quantity	Each
Supercharger Included	No
