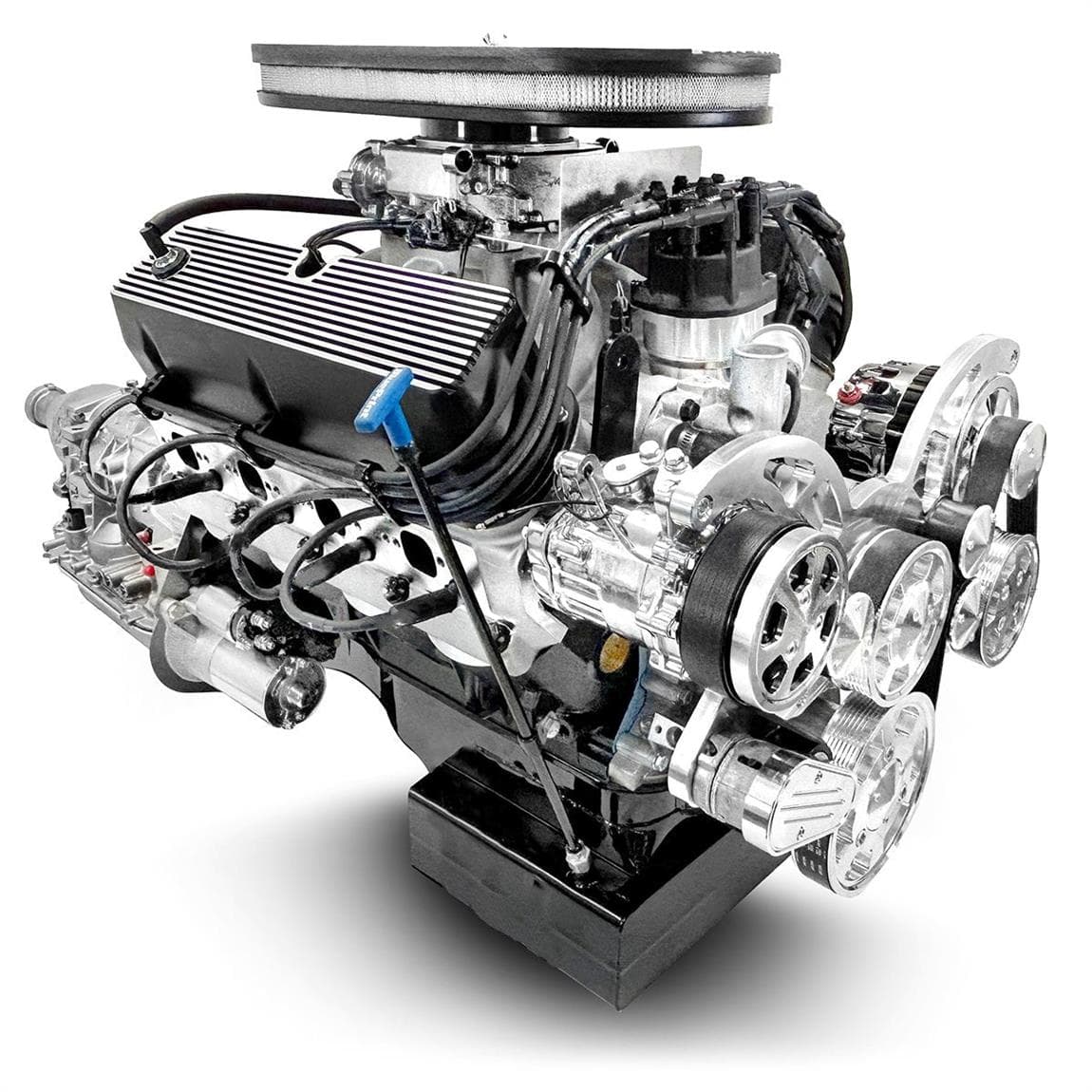

BluePrint Engines BF427FK4R7C SBF 427 w/ 4R70W, EFI, Pol., Cobra

#227BF427FK4R7C

BluePrint Engines BF427FK4R7C SBF 427 w/ 4R70W, EFI, Pol., Cobra

BluePrint 427 delivers 541 horsepower and 519 ft.-lbs. of torque
Cobra-style valve covers, oval air cleaner, and polished front accessory drive
Holley Sniper 2 EFI system

Fuel Inducation Type:

Transmission Type:

4R70W

$29,599.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Connect and Cruise Crate Engine Type, Oil Pan Included

BluePrint 427 delivers 541 horsepower and 519 ft.-lbs. of torque
Cobra-style valve covers, oval air cleaner, and polished front accessory drive
Holley Sniper 2 EFI system
Forged crankshaft, forged pistons, aluminum heads, and hydraulic roller cam
Complete 4R70W automatic transmission package includes controller, torque converter, lockup overdrive, flexplate, starter, and TPS harness

See more details

Key Specs

Crate Engine Type	Connect and Cruise
Compression Ratio	10.0:1
Engine Displacement	427 cu. in.
Camshaft Type	Hydraulic Roller Tappet
Cylinder Head Material	Aluminum

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines BF427FK4R7C Details

This high-output 427 c.i. Small Block Ford–compatible BluePrint Engine delivers 541 horsepower and 519 lb-ft of torque, making it an excellent choice for aggressive street builds, restomods, and performance enthusiasts seeking a reliable powerplant with serious horsepower and torque. Built around a 9.5-inch deck height Windsor-based BluePrint high-strength cast iron block featuring a 4.125-inch bore, 4-bolt main caps, one-piece rear main seal, and a forged rotating assembly. It is topped with CNC-ported BluePrint Engines aluminum cylinder heads and a matched hydraulic roller camshaft, providing exceptional airflow and a broad, responsive powerband. With a 10.0:1 compression ratio, this engine is optimized for 91+ octane pump gas, delivering impressive performance without sacrificing drivability. Backed by BluePrint Engines’ industry-leading 30-month / 50,000-mile warranty.

The 427ci Small Block Ford achieved modern legend status through its use in the industry’s top Cobra and Cobra replica builders where it became known for producing massive power in lightweight chassis. These engines helped redefine the capabilities of the Windsor-based platform, particularly in high-end Cobra replicas and continuation-style builds. Weighing significantly less than a traditional big block, the 427 stroker enhances front-end balance, handling, and braking, making it a proven choice for performance-focused applications.

BluePrint 427 delivers 541 horsepower and 519 ft.-lbs. of torque
Cobra-style valve covers, oval air cleaner, and polished front accessory drive
Holley Sniper 2 EFI system
Forged crankshaft, forged pistons, aluminum heads, and hydraulic roller cam
Complete 4R70W automatic transmission package includes controller, torque converter, lockup overdrive, flexplate, starter, and TPS harness

Block:

NEW BluePrint Engines' High Strength Cast Iron Block
4-Bolt Main
4.125" Bore
1-Piece Rear Main Seal
9.500 Deck Height

Rotating Assembly:

New Forged Crankshaft
4.000" Stroke
Forged 6.250" Connecting Rods
Forged Pistons
Internally Balanced

Cylinder Heads:

Aluminum Cylinder Heads
60cc Chamber
2.02" Intake / 1.60" Exhaust Valves
205cc Intake / 70cc Exhaust Runners

Cam Specs:

Cam Type: Roller
.608 Intake / .608 Exhaust Lift
248 Intake / 258 Exhaust Duration
@.050-114 Degree Lobe Separation

Also Includes:

Holley Sniper 2 EFI System - BPP550-510-3XX
Ribbed Cobra Style Aluminum Valve Covers
Aluminum Oval Air Cleaner with Cobra Script
Harmonic Balancer
Spark Plugs & Wires
Timing Cover
Powder Coated Oil Pan
Thermostat and Thermostat Housing
Oil Filter
Plug Wire Separators
EFI Fuel Pump Kit - BPP5267
Polished Front Accessory Drive - BPP302FDACPS4
Driver Side Standard Rotation Water Pump
Type II Power Steering Pump
Remote Power Steering Pump Reservoir
140amp 1-wire Alternator
7B10 Peanut Air Conditioning Compressor

Assembled with Complete 4R70W Automatic Transmission Package:

Includes Electronic Transmission Controller
Transmission built to 650 HP
2200-2600 Stall Torque Converter
Flex plate
Starter
TPS harness included for integration with trans controller and EFI.
4 Speed, Overdrive transmission w/Lockup
GEAR RATIOS

First: 2.84 :1.

Second: 1.55 :1.

Third: 1.00 :1.

Overdrive: 0.70 :1.

Reverse: 2.32 :1.

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

BluePrint Engines BF427FK4R7C Specifications

KEY SPECS
MFG. Part #	BF427FK4R7C
Brand	BluePrint Engines
Crate Engine Type	Connect and Cruise
Compression Ratio	10.0:1
Engine Displacement	427 cu. in.
Camshaft Type	Hydraulic Roller Tappet
Cylinder Head Material	Aluminum
Piston Material	Forged Aluminum
Crankshaft Material	Forged Steel
Carburetor Included	Yes
Intake Manifold Included	Yes
Distributor Included	Yes
Connecting Rod Material	Forged Steel
Valve Covers Included	Yes
Cylinder Heads Included	Yes
Throttle Body Included	Yes
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	Yes
Air Cleaner Included	Yes
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	Yes
Wiring Harness Included	Yes

GENERAL
Horsepower	541 horsepower
Combustion Chamber Volume	60cc
Bore x Stroke (in)	4.125" x 4.00"
Sold in Quantity	Kit
