#227BPF4089RCT
BluePrint BPF4089RCT Ford 408 450HP Long Block Rear Sump Engine
- The BluePrint Engines Ford Small Block compatible 408 cubic-inch long block delivers 450 horsepower and 470 ft-lbs of torque, making it an excellent foundation for high-performance street and strip builds.
$8,099.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Long Block Crate Engine Type, 10.0:1 Compression Ratio
- The BluePrint Engines Ford Small Block compatible 408 cubic-inch long block delivers 450 horsepower and 470 ft-lbs of torque, making it an excellent foundation for high-performance street and strip builds.
- Built on a high-strength cast-iron block with 4-bolt mains, a 4.040-inch bore, and a 9.500-inch deck height, this engine features BluePrint Aluminum Cylinder Heads with a hydraulic roller cam and forged pistons for durability and reliability.
- The rear sump oil pan configuration makes it ideal for a wide range of classic Ford applications, and it comes ready to complete with your choice of intake and accessories.
Key Specs
| Crate Engine Type | Long Block |
| Compression Ratio | 10.0:1 |
| Engine Displacement | 408 cu. in. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
Need To Know
Made to Order
This custom item will ship when completed
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBluePrint Engines BPF4089RCT Details
BluePrint Engines BPF4089RCT Details

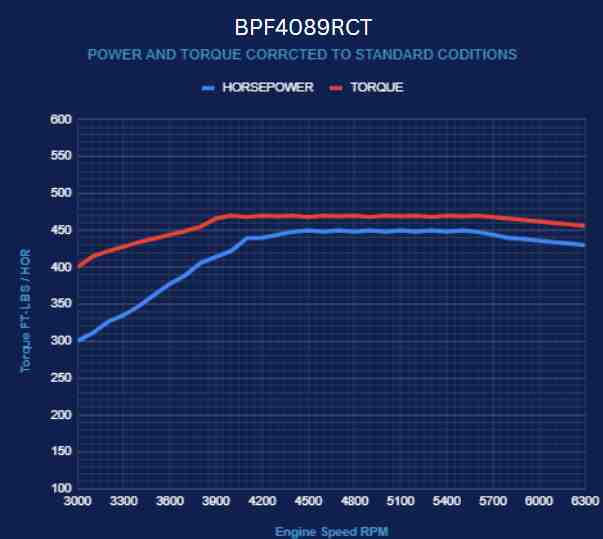

- Horsepower & Torque: 450 Horsepower / 470 ft. lbs. Torque
- Compression Ratio: 10.0:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Cast Crankshaft
- BluePrint Engines Forged Pistons
Description
- Horsepower & Torque: 450 Horsepower / 470 ft. lbs. Torque
- Compression Ratio: 10.0:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Cast Crankshaft
- BluePrint Engines Forged Pistons
Block
- BluePrint Engines High Strength Cast Iron Block
- 4-Bolt Main
- 4.040" Bore
- 9.500" Deck Height
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
Rotating Assembly
- Cast Crankshaft
- 4.000" Stroke
- Forged I-Beam 6.200" Connecting Rods
- Forged Pistons
- 28 Oz. Externally Balanced Front and Rear
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - HP9009 w/ Spring Upgrade
- 60cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 190cc Intake / 65cc Exhaust Runners
Cam Specs
- Hydraulic Roller Cam
- .579 Intake / .579 Exhaust Lift
- 236 Intake / 248 Exhaust Duration
- @.050-114 Degree Lobe Separation
Ignition Timing
- 34 Degrees Total at 3500 RPM
Also Includes
- Rear Sump Oil Pan
- Dipstick
- Timing Cover
- Valve Covers
Specs
- Horsepower & Torque: 450 Horsepower / 470 ft. lbs. Torque
- Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
- Compression Ratio: 10.0:1
- Camshaft: Hydraulic Roller Cam - .579 Intake / .579 Exhaust Lift and 236 Intake / 248 Exhaust Duration @ .050 - 114° LSA
- Pistons: Forged
- Crankshaft: Cast Crank - 4.000" Stroke and Forged 6.200" Rods
- Fuel Recommendation: 91+ Octane
- UPC: 00887753997678
Guides & Documents
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
BluePrint Engines BPF4089RCT Specifications
BluePrint Engines BPF4089RCT Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | BPF4089RCT |
| Brand | BluePrint Engines |
| Crate Engine Type | Long Block |
| Compression Ratio | 10.0:1 |
| Engine Displacement | 408 cu. in. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Forged Aluminum |
| Crankshaft Material | Forged Steel |
| Carburetor Included | No |
| Intake Manifold Included | No |
| Distributor Included | Yes |
| Connecting Rod Material | Forged Steel |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Timing Cover Included | Yes |
| Oil Pan Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |
| Torque | 470 ft./lbs. |
| Horsepower | 450 horsepower |
| Combustion Chamber Volume | 60cc |
| Bore x Stroke (in) | 4.040" x 4.00" |
| Warranty | 30-Month / 50,000 Mile Warranty |
| Camshaft Included | Yes |
| Sold in Quantity | Each |
