#227BP4967CT

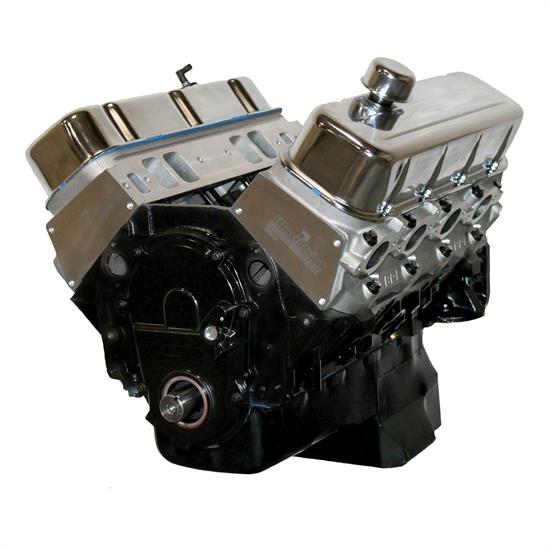

BluePrint BP4967CT GM 496 Stroker, Base Engine, Alum Heads, Roller Cam
$10,199.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select an engine to verify Fitment
Select Engine
Key Specs
| Crate Engine Type | Long Block |
| Compression Ratio | 10.1:1 |
| Engine Displacement | 496 cu. in. |
| Camshaft Type | Hydraulic Roller Tappet |
| Cylinder Head Material | Aluminum |
Need To Know
Made to Order
This custom item will ship when completed
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBluePrint Engines BP4967CT Details
BluePrint Engines BP4967CT Details
True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!
GM 496 Stroker - Base Engine - Aluminum Heads - Roller Cam
Overview
- HP & Torque: 575 HP / 590 FT LBS
- Compression Ratio: 10.1:1
- Aluminum Heads
- Hypereutectic Pistons
- Roller Cam
- Forged Crank
- Part #: BP4967CT
Block
- BRAND NEW BluePrint Cast Iron Block
- 4 Bolt Mains
- One piece rear seal
- Square and parallel decked
- Align honed main bearing bore
- Cylinders honed on computer controlled machine to within .0002
- straightness and roundness
- Cylinders are sonic tested for thickness
Rotating Assembly
- New forged crankshaft - 4.250" stroke & 6.135" rods
- GM connecting rods
- 150,000 psi rod bolts
- Hypereutectic pistons
- Hastings moly rings
- Rotating assembly balanced to within 2 grams
- High volume oil pump
- Hydraulic roller cam
Cylinder Heads
- BluePrint aluminum - 119cc chamber
- Hardened retainers and springs
- 2.3 swirl polished intake valves
- 1.880 swirl polished exhaust valves
Cam Specs
- Cam Type: Roller
- .566 Intake .566 Exhaust
- 242 Intake / 248 Exhaust duration
- @ .050 - 112° lobe separation
Ignition Timing
- 10-16 degree and total timing 32-34 degree at 3500 rpm
Also Includes
- Valve covers, oil pan and timing cover
- Brass freeze plugs
- Dyno test results shipped with engine
Warranty
- 30 month / 50,000 mile
Notes
NEW BluePrint block manufactured and machined in the USA!Charts
Warranty Information (PDF)
Guides & Documents
Warranty Information
Warranty Information (PDF)
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
BluePrint Engines BP4967CT Specifications
BluePrint Engines BP4967CT Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | BP4967CT |
| Brand | BluePrint Engines |
| Crate Engine Type | Long Block |
| Compression Ratio | 10.1:1 |
| Engine Displacement | 496 cu. in. |
| Camshaft Type | Hydraulic Roller Tappet |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Cast Steel |
| Carburetor Included | No |
| Intake Manifold Included | No |
| Distributor Included | No |
| Valve Covers Included | Yes |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Timing Cover Included | Yes |
| Oil Pan Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | No |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |
| Torque | 590 ft./lbs. |
| Horsepower | 575 horsepower |
| Combustion Chamber Volume | 119cc |
| Camshaft Duration (.050 in) | 242° intake / 248° exhaust |
| Camshaft Lift (in) | .566 intake / .566 exhaust |
| Bore x Stroke (in) | 4.250" bored .060 over x 4.250" |
| Warranty | 30 month / 50,000 miles |
| Assembled | Yes |
| Camshaft Included | Yes |
| Block | 4 bolt main |
| Notes | New BluePrint block manufactured and machined in the USA Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR |
