#227BP38350CT1
BluePrint BP38350CT1 383 Crate Engine, 96-00 GM Vortec Truck/SUV
- BluePrint Engines 383CI Stroker Crate Engine for 1996-2000 GM Vortec Truck/SUV
- No ECU Tuning Required, Dyno Tested Longblock
- +47 Rear Wheel Horsepower Increase over Stock
$6,999.00
/kit
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Long Block Crate Engine Type, 10.0:1 Compression Ratio
- BluePrint Engines 383CI Stroker Crate Engine for 1996-2000 GM Vortec Truck/SUV
- No ECU Tuning Required, Dyno Tested Longblock
- +47 Rear Wheel Horsepower Increase over Stock
- + 55 Rear Wheel ft/lbs Torque Increase over Stock
- Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons
Key Specs
| Crate Engine Type | Long Block |
| Engine Displacement | 383 cu. in. |
| Compression Ratio | 10.0:1 |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
Need To Know
Made to Order
This custom item will ship when completed
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBluePrint Engines BP38350CT1 Details
BluePrint Engines BP38350CT1 Details
Built with BluePrint Small Block Chevy Engine Part BPP38350RA. 49 State Legal, California Executive Order# D-824-1
- BluePrint Engines 383CI Stroker Crate Engine for 1996-2000 GM Vortec Truck/SUV
- No ECU Tuning Required, Dyno Tested Longblock
- +47 Rear Wheel Horsepower Increase over Stock
- + 55 Rear Wheel ft/lbs Torque Increase over Stock
- Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons
- Compression Ratio: 10:1
BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
New BluePrint Steel crankshaft
3.750" Stroke
OEM type 5.700" connecting rods w/ 150,000 psi bolts
Hypereutectic pistons
Externally Balanced Front/ Externally Balanced Rear
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - H8002K
64cc chamber
2.02" intake/1.60" exhaust valves
195cc intake/75cc exhaust runners
CAM SPECS:
Cam Type: Roller
.477 Intake .471 Exhaust
202 Intake / 212 Exhaust duration
@ .050 - 115 degree lobe separation
IGNITION TIMING:
Computer Controlled
WARRANTY:
30 month / 50,000 mile
NOTES:
This 383 stroker is designed for use in 1996 - 2000 Chevrolet Pick up or SUV that was originally equipped with a 350ci (5.7L) engine.
No ECU tuning or recalibration is required.

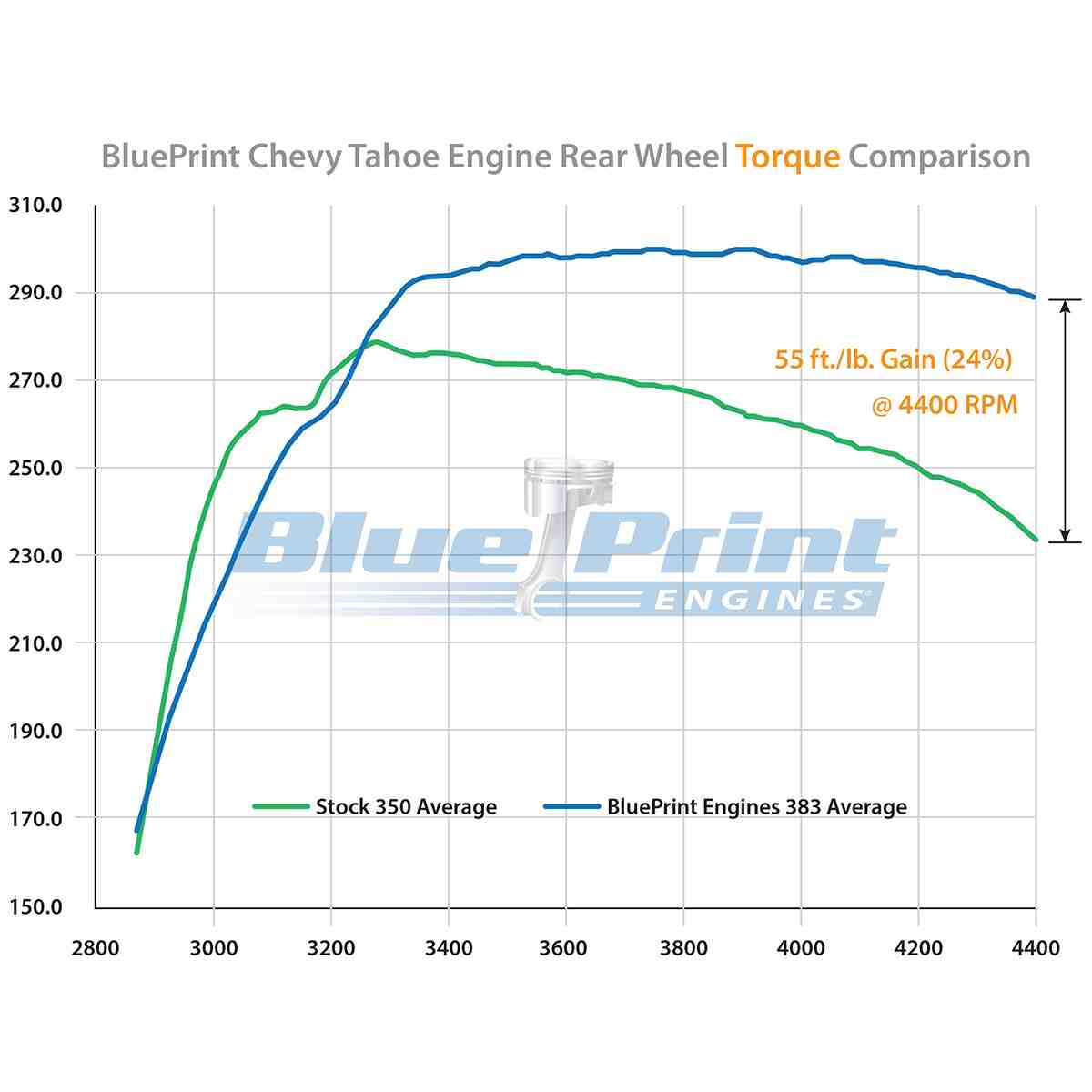

Advertised horsepower gains were achieved on chassis dyno, w/ factory EFI and ECU, in a Vortec equipped, otherwise stock, GM truck.
We have taken our BluePrint Replacement Block and assembled the Small Block Chevy Kit to give you a 24% increase of 49 state legal horsepower, when installed in a GM pickup or SUV year 2000 or older model year that came with a California certified Gen 1 naturally aspirated 5.7 gasoline engine block.
This engine may require modification to existing front accessory drive mounting brackets if retaining oem front accessory drive.
This engine kit has a California Air Resources Board (C.A.R.B.) Executive Order (E.O.) number: D-824-1.
Guides & Documents
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
BluePrint Engines BP38350CT1 Specifications
BluePrint Engines BP38350CT1 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | BP38350CT1 |
| Brand | BluePrint Engines |
| Crate Engine Type | Long Block |
| Engine Displacement | 383 cu. in. |
| Compression Ratio | 10.0:1 |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Cast Steel |
| Combustion Chamber Volume | 64cc |
| Camshaft Duration (.050 in) | 202° intake / 212° exhaust |
| Camshaft Lift (in) | .477 intake / .471 exhaust |
| Bore x Stroke (in) | 4.000" x 3.750" |
| Carburetor Included | No |
| Intake Manifold Included | No |
| Distributor Included | No |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |
| Assembled | Yes |
| Cylinder Head Style | Assembled |
| Intake Valves Included | Yes |
| Exhaust Valves Included | Yes |
| Valve Spring Included | Yes |
| Rocker Arm Studs Included | Yes |
| Rocker Arms Included | Yes |
| Head Gaskets Included | Yes |
| Lifters Included | Yes |
| Sold in Quantity | Each |
