BluePrint BP38318CTFKV 383 Stroker Crate Engine, Low Profile, DLX

Engine Designed with small diameter harmonic balancer, Small cap Distributor, and drop base air cleaner, for vehicles with low firewall or hood clearance.

Does NOT include Fuel pump or lines.

• BluePrint Engines 383 CI Stroker Crate Engine
• Dyno Tested Small Block GM Style

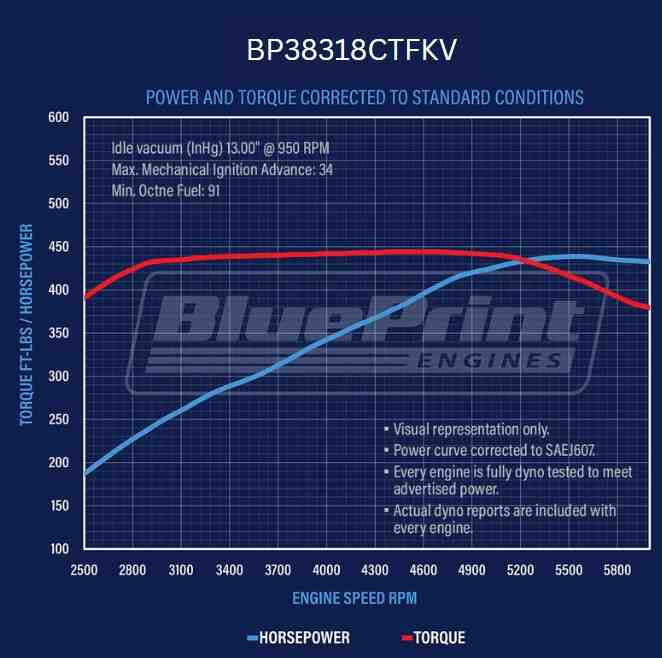

• HP and torque : 436 HP / 443 FT LBS, Compression Ratio: 10.0:1
• Deluxe Dressed w/ Pulleys Longblock with Fuel Injection
• With Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons

BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:
New BluePrint Cast steel crankshaft
3.750" Stroke
OEM type 5.700" connecting rods w/ 150,000 psi bolts
Hypereutectic pistons
External Front/ External Rear

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - H8002K
64cc chamber
2.02" intake/1.60" exhaust valves
195cc intake/75cc exhaust runners

CAM SPECS:
Cam Type: Roller
.544 Intake .555 Exhaust
230 Intake / 236 Exhaust duration
@ .050, 110 ° lobe separation angle

IGNITION TIMING:
34 Degrees Total at 3500 RPM

ALSO INCLUDES:
Holley Sniper EFI System
Premium Vintage Valve covers
Premium Vintage Air Cleaner
6.75 inch Harmonic balancer
Spark plugs
Under Header Spark plug wires (Perfect for Rams Horn exhaust manifolds)
Long Style Water Pump
Oil pan
Timing cover
Aluminum Intake Manifold
Small cap Ready to run distributor equipped with Tach Drive and coil
Dyno tested and shipped with results
Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump (Does not fit all Corvette) See images for Dimensions
Warranty:
30 month / 50,000 mile

NOTES:
Not for use in pollution-controlled vehicles.

Air cleaner has a maximum height of 11.5 inches when measured from block end rail (Horizontal sealing surface under the intake manifold)

The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke,

• The front serpentine assemblies installed on the deluxe dressed crate engines feature the 7B10 Peanut style A/C compressor, this unit is fitted for the R-134A Freon Refrigerant type-fittings, and is compatible with most aftermarket A/C systems such as Vintage Air.
